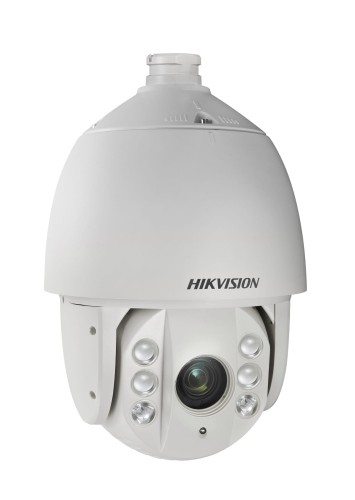

DS-2DE7530IW-AE

Hikvision DS-2DE7530IW-AE 5MP 30x IR Network Speed  Domes adopt 1/1.9" progressive scan CMOS chip. With  the 30x optical zoom lens, the camera offers more details  over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, forests,  roads, railways, airports, ports, squares, parks, scenic  spots, stations and large venues, etc.    Key Features  * 1/1.9" progressive scan CMOS  * Up to 2592 x 1944 resolution  * Min. illumination:  Color: 0.005 Lux @(F1.5, AGC ON)  B/W: 0.002 Lux @(F1.5, AGC ON)  0 Lux with IR  * 30x Optical Zoom, 16x Digital Zoom  * Defog, EIS, 3D DNR, BLC, HLC, Digital WDR  * IR distance up to 150 m  * 24 VAC & Hi-PoE  * Support H.265+/H.265 video compression      DS-2DE7530IW-AE  E Series 5MP 30x IR Network Speed Dome        Specification  Camera Module  DS-2DE7530IW-AE  E Series 5MP 30x IR Network Speed Dome  Image Sensor 1/1.9" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.5, AGC ON)  B/W: 0.002 Lux @(F1.5, AGC ON)  0 Lux with IR  Shutter Time  50Hz: 1/1 s to 1/30,000 s  60Hz: 1/1 s to 1/30,000 s  White...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Hikvision DS-2DE7530IW-AE 5MP 30x IR Network Speed
Domes adopt 1/1.9" progressive scan CMOS chip. With
the 30x optical zoom lens, the camera offers more details
over expansive areas.
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, forests,
roads, railways, airports, ports, squares, parks, scenic
spots, stations and large venues, etc.

Key Features
* 1/1.9" progressive scan CMOS
* Up to 2592 x 1944 resolution
* Min. illumination:
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.002 Lux @(F1.5, AGC ON)
0 Lux with IR
* 30x Optical Zoom, 16x Digital Zoom
* Defog, EIS, 3D DNR, BLC, HLC, Digital WDR
* IR distance up to 150 m
* 24 VAC & Hi-PoE
* Support H.265+/H.265 video compression


DS-2DE7530IW-AE
E Series 5MP 30x IR Network Speed Dome



Specification
Camera Module
DS-2DE7530IW-AE
E Series 5MP 30x IR Network Speed Dome
Image Sensor 1/1.9" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.002 Lux @(F1.5, AGC ON)
0 Lux with IR
Shutter Time
50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
AGC Auto/Manual
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
3D DNR Support
BLC Support
HLC Support
Digital WDR Support
Defog Support
EIS Support
Regional Exposure Support
Regional Focus Support
Lens
Focal Length 5.9 mm to 177 mm, 30x Optical Zoom
Zoom Speed Approx. 4.8 s (Optical Lens, Wide-Tele)
Horizontal FOV 51.3° to 2.7° (Wide-Tele)
Working Distance 10 mm to 1500 mm (Wide-Tele)
Aperture Range F1.5 to F3.4
PTZ
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Movement Range (Tilt) From -15° to 90° (Auto Flip)
Tilt Speed Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan
PTZ Status Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Smart Features
Basic Event Detection Motion Detection, Video Tampering, Alarm Input, Alarm Output, Exception
Smart Event Detection
Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection,
Region Entrance Detection, Region Exiting Detection



Auto-tracking Support
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
Infrared
IR Distance 150 m
Smart IR Support
IR Control IR brightness and angle are intelligently adjustable according to the scenes.
Network
Max. Resolution 2592 x 1944
Main Stream
50Hz: 25fps (2592 x 1944, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (2592 x 1944, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
SVC Support
ROI Main stream, sub-stream and third stream respectively support four fixed areas.
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 with Baseline/Main/High Profile
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS
Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
System Integration
Alarm Input 2-ch alarm input
Alarm Output 1-ch alarm output
Alarm Linkage
Preset, Patrol Scan, Pattern Scan, Memory Card Video Recording, Trigger Recording,
E-Map, VCA Capture, Upload to FTP, Send Email, etc.
Audio Input 1-ch audio input
Audio Output 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB, NAS (NPS, SMB/
CIPS), ANR
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8+, Chrome 31+, Firefox 30+, Safari 8.0+ web browser
General
Power 24 VAC & Hi-PoE, Max.: 40 W
IR: 19 W
Working Temperature Outdoor: -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Dimensions Φ 220 mm x 353.4 mm (Φ 8.66" x 13.91")
Weight Approx. 4.5 kg (9.92 lb)




Order Model
DS-2DE7530IW-AE

Dimensions
Unit: mm
3
5
3
.
4
Φ
2
2
0
Φ47
1
0
2
0








0504081070803
Accessories

DS-1602ZJ Wall Mounting Bracket

DS-1602ZJ-corner Corner Mounting Bracket

DS-1602ZJ-pole Vertical Pole Mounting Bracket

DS-1602ZJ-box Wall Mounting Bracket with Junction Box

DS-1663ZJ Ceiling Mounting Bracket

DS-1661ZJ Pendant Mounting Bracket

DS-1662ZJ Pendant Mounting Bracket

DS-1619ZJ Gooseneck Mounting Bracket

DS-1100KI Network Keyboard

DS-1005KI USB Joy-stick
