DS-2FA1225-D4(IND)

DS-2FA1225-D4  Switching Mode Power Supply    Feature   12 VDC/1 A per channel   Over current/short circuit/over voltage protection   Complies with certification standards of information technology products; good EMC performance   Compact size; applicable to cameras  Dimension    Available Model  DS -2FA1225-D4  Parameter  Model    Parameters  DS -2FA1225 -D4  Switching Mode Power Supply  Appearance Gray  Input 185 to 240 VAC, 50 Hz to 60 Hz  Output 12 VDC /1 A per channel  Cable Length  Compensation  Normal: 12 VDC  Long: 13.5 VDC  Ex-Long: 15 VDC  Ripple & Noise 0.15 Vp -p (15 0 mV)  AC Input Connector C8  DC Output Connector DC Plug: grid terminal  LED Indicator Green  Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 9 5% (non-condensing)  Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)  Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

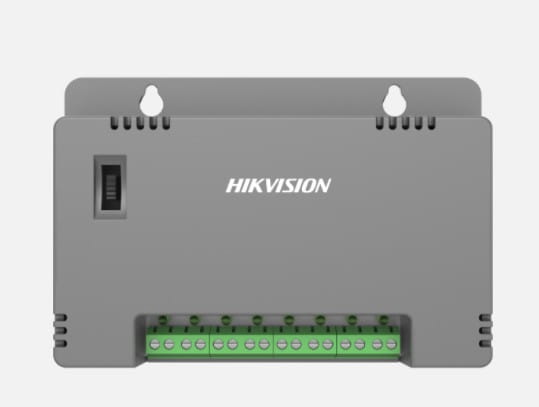

DS-2FA1225-D4
Switching Mode Power Supply

Feature
 12 VDC/1 A per channel
 Over current/short circuit/over voltage protection
 Complies with certification standards of information technology products; good EMC performance
 Compact size; applicable to cameras
Dimension

Available Model
DS -2FA1225-D4
Parameter
Model

Parameters
DS -2FA1225 -D4
Switching Mode Power Supply
Appearance Gray
Input 185 to 240 VAC, 50 Hz to 60 Hz
Output 12 VDC /1 A per channel
Cable Length
Compensation
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
Ripple & Noise 0.15 Vp -p (15 0 mV)
AC Input Connector C8
DC Output Connector DC Plug: grid terminal
LED Indicator Green
Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 9 5% (non-condensing)
Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Dimension 130 mm x 94 mm x 34 mm (5.11" x 3.70" x 1.34")
