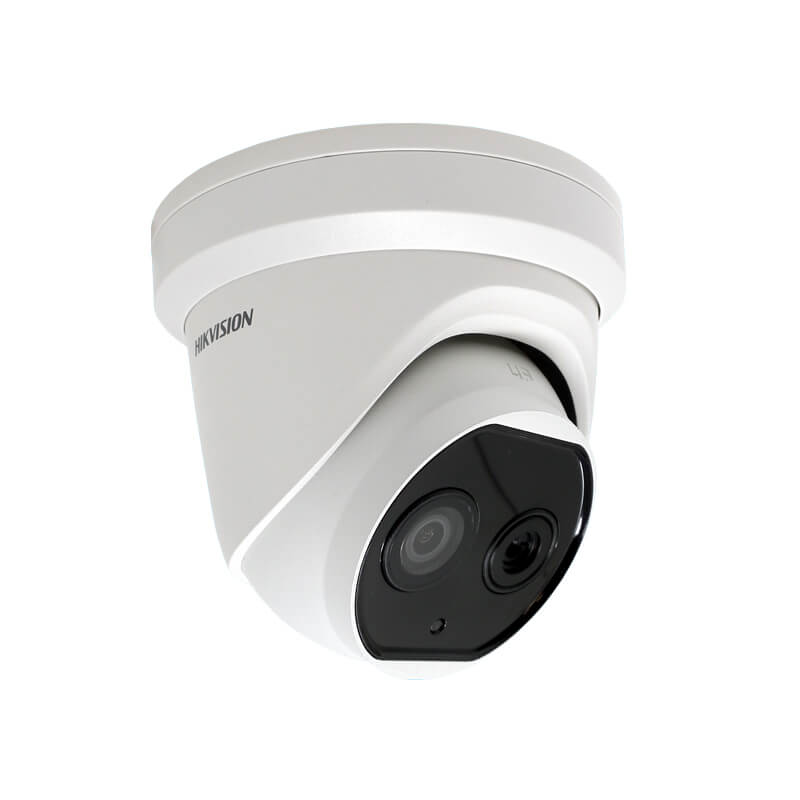

DS-2TD1217-2/QA

Verfügbarkeit: 0
Preis: 745,06 € 745.06
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 305401437

Beschreibung

DS-2TD1217-2/PA  Thermal & Optical Bi-Spectrum Network Turret Camera                    Hikvision DS-2TD1217-2/PA Thermal & Optical Network Turret Camera equipped with built-in GPU which supports intelligent  behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to perimeter  protection and fire prevention purposes in commercial facilities such as residential, retail, villa, parking lot, museum, data  centers and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.    Key Feature  ● Behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit  ● Temperature exception alarm function  ● Fire detection algorithm  ● 160 x 120 (the resolution of output image is 320 x 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)  ● Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR          Specification    Thermal Module  Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays  Resolution 160 x 120 (the resolution of output image is 320 x 240)  Pixel Int...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-2TD1217-2/PA
Thermal & Optical Bi-Spectrum Network Turret Camera









Hikvision DS-2TD1217-2/PA Thermal & Optical Network Turret Camera equipped with built-in GPU which supports intelligent
behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to perimeter
protection and fire prevention purposes in commercial facilities such as residential, retail, villa, parking lot, museum, data
centers and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.

Key Feature
● Behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
● Temperature exception alarm function
● Fire detection algorithm
● 160 x 120 (the resolution of output image is 320 x 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
● Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR




Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 40 mK (25°C, F# = 1.1)
Focal Length 1.8 mm
IFOV 9.44 mrad
Field of View 90° x 66.4° (H x V)
Min. Focusing Distance 0.1 m
Aperture F1.1
Digital Zoom x2, x4, x8
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 x 1520
Min. Illumination Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Focal Length 2.1 mm
Field of View 119.34° x 93.3°(H x V)
Aperture F2.3
WDR 120 dB
Image Effect
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to
8 VCA rules totally.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range -20 °C to +150 °C (-4 °F to +302 °F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire detection Dynamic fire detection, up to 10 fire points detectable.
Illuminator
IR Distance Up to 15 m
IR Intensity and Angle Automatically adjusted



Audible and Visual Alarm
White Light Range Up to 30 m
Visual Alarm Yes. White light used as the visual alarm, flashing frequency adjustable
Audio alarm Yes. 6 audio alarms are supported to cover all kinds of alarm.
Video & Audio
Main Stream
Optical channel
50 Hz: 25 fps (2688 x 1520), 25 fps (1920 x 1080), 25 fps (1280 x 720)
60 Hz: 30 fps (2688 x 1520), 30 fps (1920 x 1080), 30 fps (1280 x 720)
Thermal channel
25 fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240)
Sub-stream
Optical channel
50 Hz: 25 fps (704 x 576), 25 fps (352 x 288), 25 fps (176 x 144)
60 Hz: 30 fps (704 x 480), 30 fps (352 x 240), 30 fps (176 x 120)
Thermal channel
25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
API
ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G,
Profile T)
Simultaneous Live View Up to 20 channels
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE
802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Interface
Alarm Input 1-ch input (0-5 VDC)
Alarm Output 1-ch relay output, alarm response actions configurable
Alarm Action
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white
light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level; impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface
1, RS-485 interface



General
Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.5 A, max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
Working Temperature/Humidity
-40 °C to 65 °C (-40 °F to 149 °F)
95% or less
Protection Level
IP66 Standard
TVS 6000 V Lightning protection, surge protection, voltage transient protection
Dimension 138.3 mm x 138.3 mm x 123.1 mm (5.45 " x 5.45" x 4.85 ")
Weight 940 g (2.07 lb)



DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal human detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more
pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more
pixels.
.
Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
162 m 53 m 41 m 13 m 20 m 7 m

Smart Function Table
* The table is only for reference and the performance may vary according to different environment

VCA Range
(Vehicles: 1.4 x
4.0 m)
VCA Range
(Humans: 1.8 x
0.5 m)
Temperature
Measurement
(Object: 2 x 2 m)
Temperature
Measurement
(Object: 1 x 1 m)
Fire Detection
(Object: 2 x 2 m)
Fire Detection
(Object: 1 x 1 m)
25 m 9 m 44 m 22 m 108 m 54 m



Available Model
DS-2TD1217-2/PA




Dimension

Accessory




DS-1273ZJ-140 DS-1275ZJ-SUS DS-1276ZJ-SUS
Wall Mount Vertical Pole Mount Corner Mount

COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including
without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar
Arrangement. Please consult your professional legal or compliance expert or local government authorities for any necessary
export license requirements if you intend to transfer, export, re-export the thermal series products between different countries.
