Beschreibung

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-2TD1217-2/PA

Ersatzproduktcode: 305400865

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-2TD1217-2/V1

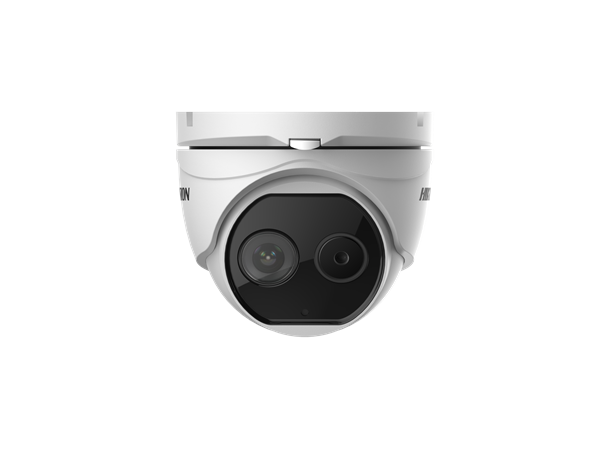

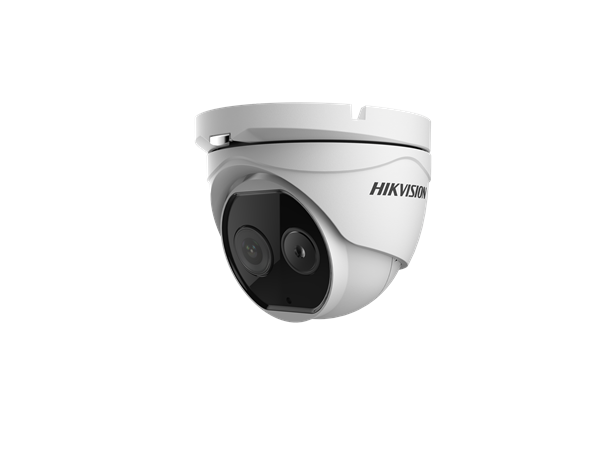

Thermal & Optical Network Dome Camera

Hikvision DS-2TD1217-2/V1 Thermal & Optical Network Dome Camera equipped with built-in GPU which support intelligent
behavior analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to fire-prevention
purposes in indoor space such as: engine room, ATM, conference room, warehouse, museum, train station, gem, power
station, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property
loss.
Smart Function (Thermal Imaging)
• Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (25°C), F#=1.1
• Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
• Reliable temperature exception alarm function
• Advanced fire detection algorithm
• Bi-spectrum image fusion, picture in picture preview
Thermal Imaging Module Function
• 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, high sensitivity sensor, support contrast
adjustment
•Shutter adjustment in various modes
• 3D DNR, 15 palettes of color adjustable, image detail enhancement
DRAFT

Specification

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDless than 40 mk (25°C), F#=1.1
Lens (Focal Length)1.8 mm
MRAD9.44 mrad
Field of View90° x 66.4° (H x V)
Min. Focusing Distance0.1 m
ApertureF1.1

Optical Module
Max. Image Resolution1920 x 1080
Image Sensor1/2.7” Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @(F1.2,AGC ON), B/W: 0.0002 Lux @(F1.2, AGC ON)
Shutter Speed1s to 1/100,000s
Lens (Focal Length)2.1 mm
Field of ViewTBD(H x V)
WDR120 WDR
Day & NightIR cut filter with auto switch

Image Function
Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combins details of thermal and optical image PIP, overlay thermal image on optical

Smart Function
VCA (Video Content Analysis)
4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8
VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to +150 °C (-4 °F to +302°F)
Temperature Accuracy± 8 °C (± 14.4 °F)
Fire detectionDynamic fire point detection, up to 10 fire points detectable.

Infrared
IR DistanceUp to 15 m
IR Intensity and AngleAutomatically adjusted
DRAFT

Network
Main Stream
Visible Light: 50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Visible Light: 60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Thermal: 25fps (160 x 120 (the resolution of output image is 320 x 240))
Sub Stream
Visible Light: 50Hz: 25fps (704 x 576), 25fps (640 x 480)
Visible Light: 60Hz: 30fps (704 x 480), 30fps (640 x 480)
Thermal: 25fps (160 x 120 (the resolution of output image is 320 x 240))
Video CompressionH.265/H.264, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering

Integration
Alarm Input1-ch inputs (0-5vDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Reset1 Reset Button
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface
SD Memory Card
Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support
manual/alarm recording
Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Menu languageEnglish
Power
12 VDC± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.7 A, max. 8W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.5W
Working Temperature/Humidity-30 °C to 60 °C (-22 °F to 140 °F), 95% or less
Protection Level
IP67 Standard
TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions134.2 mm x 123.9 mm x 107.7 mm (5.28 " x 4.87" x 4.24 ")
WeightTBD
DRAFT

Detection Range Table
*The table is only for reference, the performance may vary from camera to camera.
Smart functions Range
Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles:
1.4x4.0m)
VCA Range
(Humans:
1.8x0.5m)
Temperature
Measurement
(Object:2x2 m)
Temperature
measurement
(Object:1x1 m)
Fire Detection
(Object:2x2 m)
Fire Detection
(Object:1x1 m)
80 m20 m44 m22 m108 m54 m

Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles:
1.4x4.0m)
Detection Range
(Humans:
1.8x0.5m)
Recognition
Range (Vehicles:
1.4x4.0m)
Recognition
Range (Humans:
1.8x0.5m)
Identification
Range (Vehicles:
1.4x4.0m)
Identification
Range (Humans:
1.8x0.5m)
162 m53 m41 m13 m20 m7 m

Available Model
DS-2TD1217-2/V1
