DS-2TD2117-6/V1

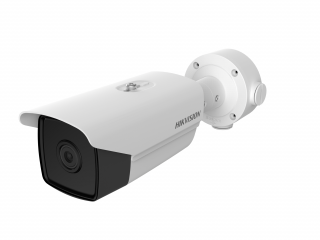

Thermal Network Bullet Camera



Hikvision DS-2TD2117-6/V1 Thermal Network Bullet Camera equipped with built-in GPU which support intelligent behavior
analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-
prevention purposes in critical infrastructures such as: community, villa, construction site, factory, 4S stores, and so on. The
pre-alarm system helps you discover unexpected events immediately and protects you from property loss.

Smart Function (Thermal Imaging)

• Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40mk (@25°C,F#=1.0)
• Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
• Reliable temperature exception alarm function
• Advanced fire detection algorithm

Thermal Imaging Module Function

• 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, high sensitivity sensor, support contrast
adjustment
•Shutter adjustment in various modes
• 3D DNR, 15 palettes of color adjustable, image detail enhancement


Specification

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDless than 40mk (@25°C,F#=1.0)
Lens (Focal Length)6.2 mm
MRAD2.74 mrad
Field of View25° x 18.7° (H x V)
Min. Focusing Distance0.6 m
ApertureF 1.1
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8
VCA rules.

Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy±8 °C (14.4 °F)
Fire detectionDynamic fire point detection, up to 10 fire points detectable.
Network
Main Stream25fps (160 x 120 (the resolution of output image is 320 x 240))
Sub Stream25fps (160 x 120 (the resolution of output image is 320 x 240))
Third Stream25fps (160 x 120 (the resolution of output image is 320 x 240))
Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live ViewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering

Integration
Alarm Input2-ch inputs (0-5V DC)
Alarm Output2-ch relay outputs, alarm response actions configurable

Alarm Action
Preset/Patrol Scan/​Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP
upload/Email linkage

Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%


Integration
Audio OutputLinear Level; Impedance: 600Ω
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface

SD Memory Card
Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support
manual/alarm recording

Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Menu languageEnglish

Power
12 VDC± 20%
PoE (802.3af, class 4)

Power Consumption12 VDC ± 20%: 1.7 A, max. 8W, PoE (802.3af)
Working Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F), 90% or less

Protection Level
IP66 Standard
TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions352.4mm x 113.5mm x 113mm (13.9" x 4.45" x 4.45")
WeightApprox. 1.45kg (3.2lb)


Detection Range Table

*
The table is only for reference, the performance may vary from camera to camera.
Smart functions Range

Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles:
1.4x4.0m)
VCA Range
(Humans:
1.8x0.5m)
Temperature
Measurement
(Object:2x2 m)
Temperature
measurement
(Object:1x1 m)
Fire Detection
(Object:2x2 m)
Fire Detection
(Object:1x1 m)

126 m42 m132 m66 m360 m180 m
Wide Range Coverage

There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles:
1.4x4.0m)
Detection Range
(Humans:
1.8x0.5m)
Recognition
Range (Vehicles:
1.4x4.0m)
Recognition
Range (Humans:
1.8x0.5m)
Identification
Range (Vehicles:
1.4x4.0m)
Identification
Range (Humans:
1.8x0.5m)

559 m182 m140 m46 m70 m23 m

Available Model
DS-2TD2117-6/V1
