DS-2TD2617-10/QA

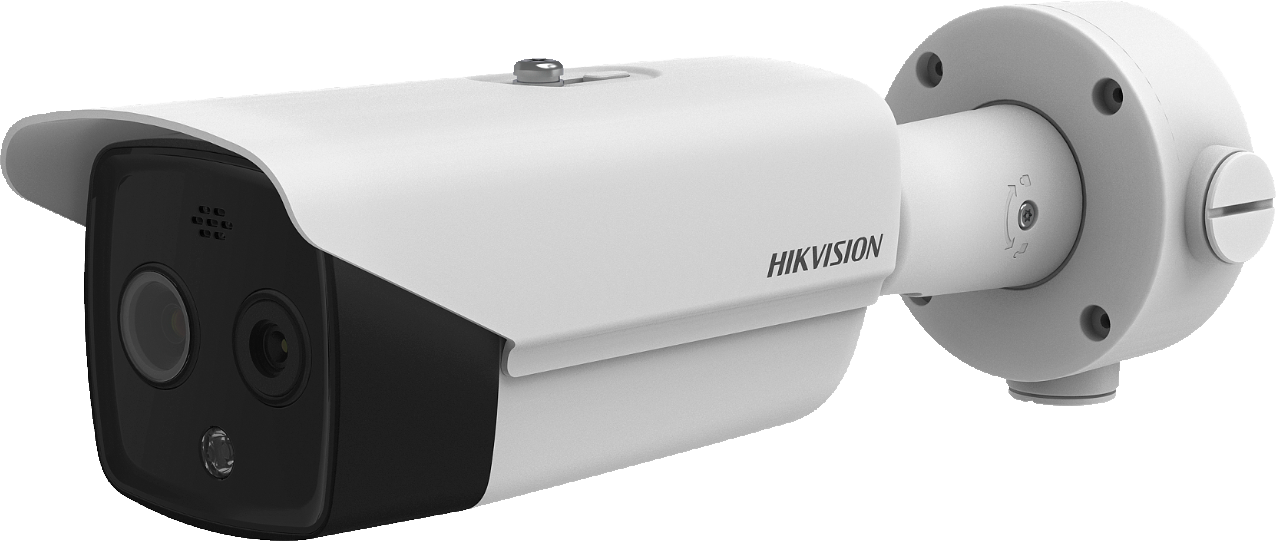

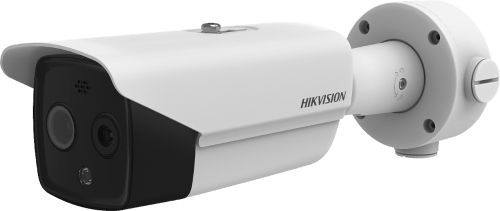

Thermographic Network Bullet Camera









Hikvision DS-2TD2617-10/QA Thermographic Network Bullet Camera can be applied to substations, hydropower stations,
waste incineration plants, manufacturing workshops, etc. The accurate temperature measurement device sends
temperature exception alarms for loss prevention.

 Key Feature
 160 x 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
 High accuracy temperature exception alarm, - 20 °C to 150 °C (- 4 °F to 302 °F), ± 8 °C (± 14.4 °F)
 Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR





 Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 160 x 120
Pixel Pitch 17 μm
Spectral Range 8 μm to 14 μm
NETD < 40 mK (@ 25 °C, F# = 1.1)
Focal Length 9.7 mm
IFOV 1.75 mrad
Field of View 15.96° x 12.00° (H x V)
Min. Focusing Distance 1.2 m
Aperture F1.1
Digital Zoom x 2, x 4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 x 1520
Min. Illumination Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed 1s to 1/100,000s
Focal Length 8 mm
Field of View 39.42° x 22.14° (H x V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect
Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator
IR Distance Up to 40 m
IR Intensity and Angle Automatically adjusted
Audible and Visual Alarm
White Light Range Up to 40 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line)
Temperature Range - 20 °C to 150 °C (- 4 °F to 302 °F)
Temperature Accuracy ± 8 °C (± 14.4 °F)



Video and Audio
Main Stream
Thermal:
25 fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240)
Optical:
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-stream
Thermal:
25 fps (704 x 576, 352 x 288, 320 x 240)
Optical:
50 Hz: 25 fps (704 x 576, 352 x 288)
60 Hz: 30 fps (704 x 480, 352 x 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto
Network Replenishment (ANR)
API
ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video
Interface (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE
802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
Interface
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
Analog Output 1.0 V [p-p]/75 Ω, PAL/NTSC/BNC
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)



Power Consumption
12 VDC ± 25%: 0.5 A, Max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max. 6.5 W
Working Temperature/Humidity
Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F)
Humidity: 95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 358.3 mm x 113.5 mm x 115.2 mm (14.10" x 4.47" x 4.35")
Weight Approx. 1.76 kg (3.88 lb)




DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more
pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more
pixels.



Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
875 m 285 m 219 m 71 m 109 m 36 m


Smart Function Table
* The table is only for reference and the performance may vary according to different environment.
VCA Range (Vehicles: 1.4 x
4.0 m)
VCA Range (Humans: 1.8 x
0.5 m)
Temperature Measurement
(Object: 2 x 2 m)
Temperature Measurement
(Object: 1 x 1 m)
133 m 48 m 235 m 118 m


 Available Model
DS-2TD2617-10/QA




 Dimension


Unit: mm [Inch]

 Accessory
 Included


DS-1260ZJ
Junction Box
 Optional


DS-1276ZJ-SUS
Corner Mount

DS-1275ZJ-S-SUS
Vertical Pole Mount

COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions,
including without limitation, the United States, European Union, United Kingdom and/or other member countries of the
Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any
necessary export license requirements if you intend to transfer, export, re-export the thermal series products between
different countries.
