DS-2TD2617-3/PA

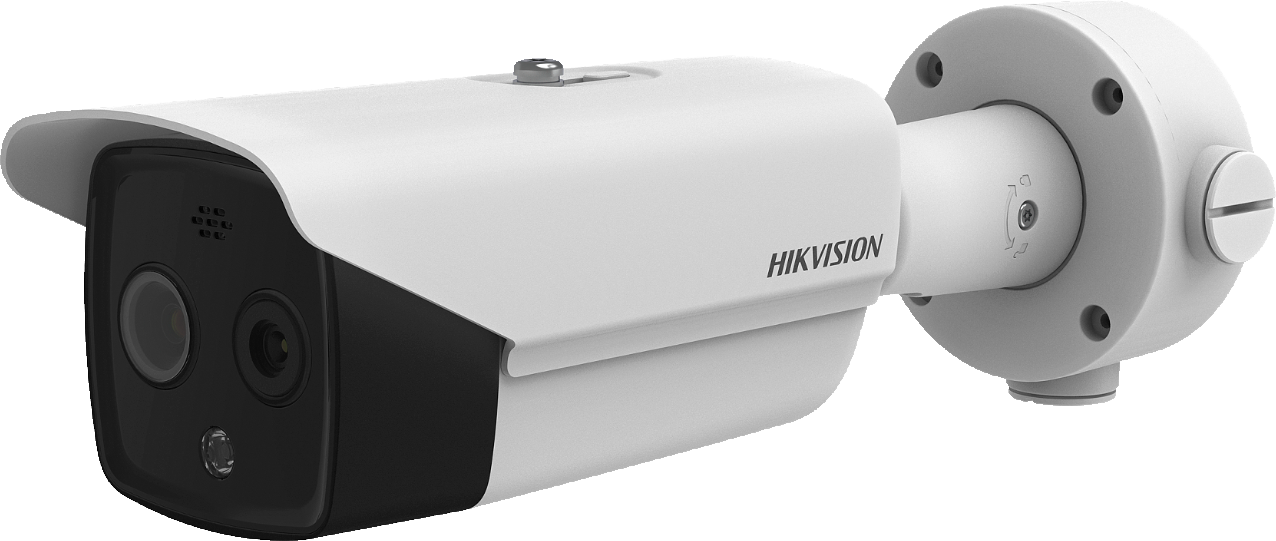

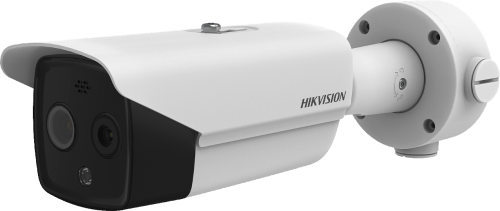

Thermal & Optical Bi-spectrum Network Bullet Camera












Hikvision DS-2TD2617-3/PA Thermal & Optical Bi-spectrum Network Bullet Camera, equipped with built-in GPU which
supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to
perimeter protection and fire prevention purposes in commercial facilities such as residential, retail, villa, parking lot,
museum, data centers and so on. The pre-alarm system helps you discover unexpected events immediately and protects your
property.
Key Feature
● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
● Temperature exception alarm
● Fire detection algorithm
● 160 x 120 (the resolution of output image is 320 x 240)resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
● Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR



Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval 17μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 40 mk (25 °C,F# = 1.1)
Focal Length 3.1 mm
IFOV 5.48 mrad
Field of View 50° x 37.2° (H x V)
Min. Focusing Distance 0.2 m
Aperture F 1.1
Digital Zoom x2, x4, x8
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 x 1520
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Focal Length 4 mm
Field of View 84° x 44.8° (H x V)
Aperture F1.6
WDR 120 dB
Image Effect
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range -20 °C to + 150 °C (-4 °F to + 302°F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable.
Illuminator
IR Distance Up to 40 m
IR Intensity and Angle Automatically adjusted



Audible and Visual Alarm
White Light Range Up to 40 m
Visual Alarm Yes. White light used as the visual alarm, flashing frequency adjustable
Audio alarm Yes. 6 audio alarms are supported to cover all kinds of alarm.
Video & Audio
Main Stream
Optical channel
50 HZ: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60 HZ: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Thermal channel
25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240)
Sub-stream
Optical channel
50 HZ: 25fps (704 x 576, 352 x 288, 176 x 144)
60 HZ: 30fps (704 x 480, 352 x 240, 176 x 120)
Thermal channel
25fps (704 x 576, 352 x 288, 320 x 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
API
ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G,
Profile T)
Simultaneous Live View Up to 20 channels
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE
802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Interface
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action
SD record/relay output/smart capture/FTP upload/email linkage/audio alarm/white
light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface



General
Menu language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.65 A, max. 7.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 358.3 mm x 113.5 mm x 115.2 mm (14.10" x 4.47" x 4.53")
Weight Approx. 1.76 kg (3.88 lb)




DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal human detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more
pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more
pixels.


Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
280 m 91 m 70 m 23 m 35 m 11 m


Smart Function Table
* The table is only for reference and the performance may vary according to different environment.

VCA Range
(Vehicles: 1.4 x
4.0 m)
VCA Range
(Humans: 1.8 x
0.5 m)
Temperature
Measurement
(Object: 2 x 2 m)
Temperature
Measurement
(Object: 1 x 1 m)
Fire Detection
(Object: 2 x 2 m)
Fire Detection
(Object: 1 x 1 m)
43 m 15 m 66 m 33 m 180 m 90 m


Available Model
DS-2TD2617-3/PA
Dimension
358.3 mm (14.10")
337.2 mm (13.27")
113.5 mm (4.47")
115
.2
mm
(4
.35
")





 Accessory


DS-1275ZJ-S-SUS DS-1276ZJ-SUS
Vertical Pole Mount Corner Mount
