Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

R

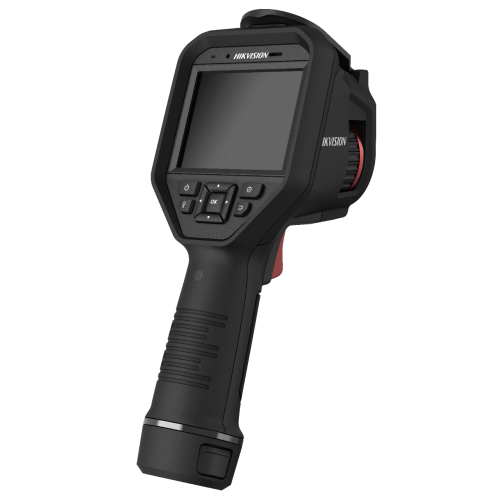

DS-2TP21B-6AVF/W
Body Temperature Measurement Camera




The handheld thermal camera, specially designed for body temperature measurement. It’s equipped
with a 160x120 resolution thermal detector. It is capable to discover and track people with higher
body temperature among the crowded public area, it can be widely used in places such as customs,
airport, school and hospital for inspection and quarantine.


Key Feature
 160 x 120 resolution (thermal), and 8 MP resolution (optical)
 Thermographic accuracy up to ±0.5 °C
 Display fusion of thermal view and optical view.
 640 x 480 resolution 3.5” LCD touch display
 Support live view on PC, mobile device or external monitor
 Support audio intercom
 Support color highlight alarm and audio alarm






Specification
Model
Parameter
DS-2TP21B-6AVF/W
Thermographic Handheld Camera
Thermal Module
Image sensor Uncooled Focal Plane Arrays
Resolution 25Hz: 160 x 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40 mk (@ 25 °C,F#=1.0)
Field of View 25° x 18.7°
Focal length 6.2 mm (Manual focus)
IFOV 2.74 mrad
Aperture F 1.1
Optical Module
Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
Video Resolution 640 x 480
Image Display
Monitor 640 x 480 resolution 3.5’’ LCD touch display
Palettes
Black hot, White hot, Red hot, Rainbow, Ironbow,
Fusion, Rain
Digital Zoom Thermal：1x, 2x, 4x
Thermal / Optical Thermal/Optical/Fusion image/Picture in picture
Picture in Picture Support Thermal View in Optical View
Fusion Support (Thermal View and Optical View Combined)
Record Video Support on-board video recording
Thermography
Rules
Max. Temperature; Min. Temperature; Center
Temperature; Custom Point/Line/Area Thermography
Range 30°C to 45 °C
Accuracy ±0.5°C
Battery
Battery Type Dismountable and rechargeable Li-ion Battery
Battery Operating Time
5 hours in normal temperature, with Wi-Fi, Bluetooth,
and supplement light off.
4 hours in normal temperature, with Wi-Fi, Bluetooth,
and supplement light on.
Storage Built-in memory module (16 G)
Photo Thermal/Optical/Fusion image
Video Thermal/Optical/Fusion image
Wi-Fi Support
Text Comment Support
Voice Comment Support
Language English
General
Power 5 VDC/2 A
Power Consumption Max. 4.5 W
Hardware Interface Type-C Interface
Working Temperature 15°C to 35 °C
Protection level IP54
Drop Test Height 2 m (6.56 feet)





Dimension 244 mm x 100 mm x 104 mm (9.6 ″ x 3.9 ″ x 4.1 ″)
Weight
With Battery: 653 g (1.44 lb)
Without Battery: 511 g (1.13 lb)

244
mm
(9
.6
'')
100mm (3.94'')
104
mm
(4
.1
'')

Available Model
DS-2TP21B-6AVF/W

Dimension






0505041091218
