DS-3E0105P-E
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-3E0105P-E 4-ports 100Mbps Unmanaged PoE Switch IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant 4 x 10/100Mbps Auto-MDIX PoE ports Provides up to 30 watts per PoE port PoE power budget 58W 4 kV surge protection for PoE ports IEEE 802.3x flow control support Plug-and-play installation 1 Gbps switching fabric 448 Kbits RAM Data Buffer 1K MAC address entries Sturdy metal enclosure Features Overview DS-3E0105P-E is an 4 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc. NO. Description 1 PWR 2 POE-MAX 3 EXTEND 4 LINK/ACT 5 POE STATUS 6 PoE PORT 7 UPLINK 8 N/A 1 2 3 5 6 7 4 8 Model DS-3E0105P-E Ports Network Ports 5 ...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-3E0105P-E
4-ports 100Mbps Unmanaged PoE Switch
IEEE 802.3at and IEEE 802.3af Power
over Ethernet (PoE) compliant
4 x 10/100Mbps Auto-MDIX PoE ports
Provides up to 30 watts per PoE port
PoE power budget 58W
4 kV surge protection for PoE ports
IEEE 802.3x flow control support
Plug-and-play installation
1 Gbps switching fabric
448 Kbits RAM Data Buffer
1K MAC address entries
Sturdy metal enclosure
Features
Overview
DS-3E0105P-E is an 4 10/100Mbps ports unmanaged
switch that requires no configuration and provides 4
PoE (Power over Ethernet) ports. It can automatically
detect and supply power with all IEEE 802.3af/at
compliant Powered Devices (PDs). In this situation, the
electrical power is transmitted along with data in one
single cable allowing you to expand your network to
where there are no power lines or outlets, where you
wish to fix devices such as IP Cameras or IP Phones,
etc.

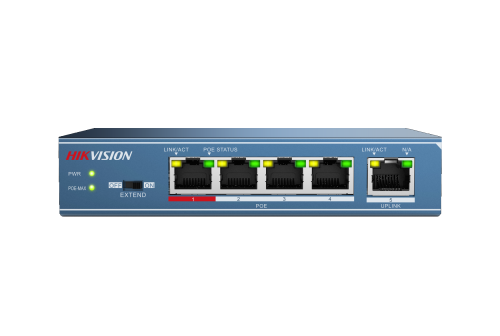

NO. Description
1 PWR
2 POE-MAX
3 EXTEND
4 LINK/ACT
5 POE STATUS
6 PoE PORT
7 UPLINK
8 N/A
1
2 3
5
6 7
4 8
Model DS-3E0105P-E
Ports
Network Ports 5
PoE Port 4, 10/100Mbps RJ45 ports
Uplink Port 1, 100M Ethernet Port
Standard
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity 1Gbps
Max. Forwarding Rate 0.74Mpps
High Priority Ports Port 1
Forwarding Mode Store-and-forward
MAC Address Table 1k
Flow Control IEEE802.3x full duplex
Power Over Ethernet
PoE Standard IEEE802.3af, IEEE802.3at
PoE Power Budget 58W
Working Mode
Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply 51V DC, 1.25A
Power Consumption ≤63W
Surge Protection 4KV
Working Temperature Temperature: 0℃-40℃
Working Humidity Humidity: 10%-90% , non-condensing
Storage Temperature Temperature: -40℃-70℃
Storage Humidity Humidity: 5%-90% , non-condensing
Weight 0.299kg
Dimension 132 mm* 93.3mm * 27.6mm
Specifications
DS-3E0105P-E
4-ports 100Mbps Unmanaged PoE Switch
