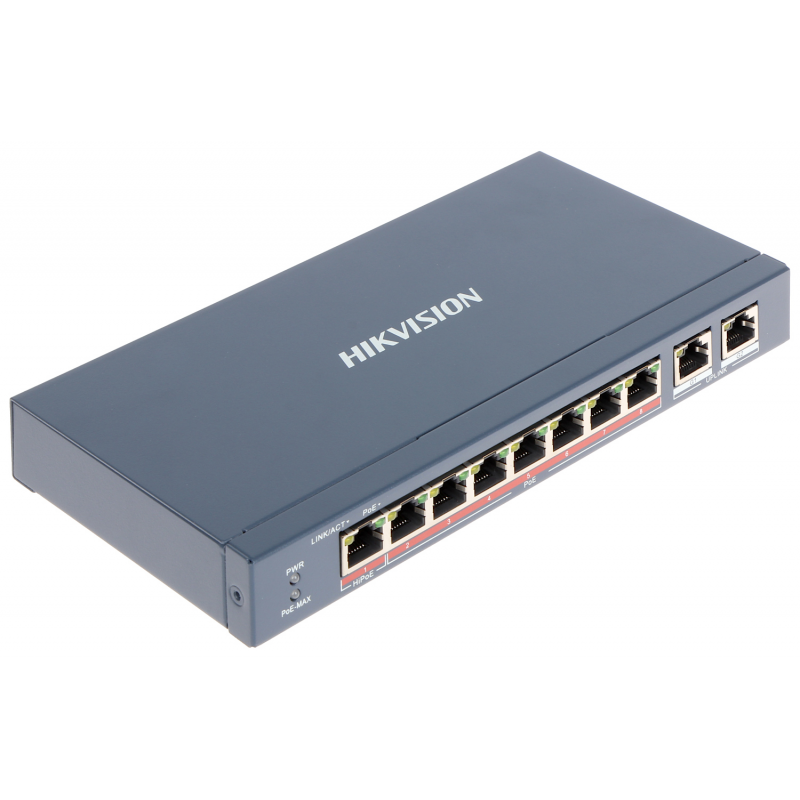

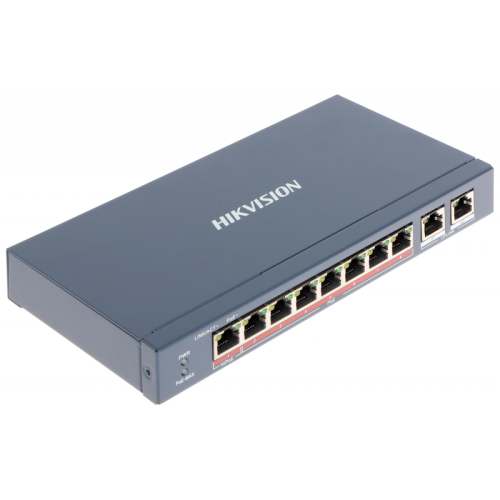

DS-3E0310HP-E
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-3E0310HP-E 8-Port 100 Mbps Long-Range PoE Switch Feature and Function • 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. • IEEE 802.3at/af/bt standard for HiPoE port (Max. 60 W port power). • IEEE 802.3at/af for PoE ports. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z. • PoE port with 6 KV surge protection. • AF/AT camera can reach up to 250 m in extend mode. HiPoE camera can reach up to 150 m. • PoE output power management. • Dual uplink network design. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Fan-free design with high reliability. DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. The switches provide advanced HiPoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 x 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions. Specification Model DS-3E0310HP-E...
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-3E0310HP-E
8-Port 100 Mbps Long-Range PoE Switch
Feature and Function
• 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports.
• IEEE 802.3at/af/bt standard for HiPoE port (Max. 60 W port power).
• IEEE 802.3at/af for PoE ports.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z.
• PoE port with 6 KV surge protection.
• AF/AT camera can reach up to 250 m in extend mode. HiPoE camera can reach up to 150 m.
• PoE output power management.
• Dual uplink network design.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Fan-free design with high reliability.
DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE
switches, providing 1 x 10/100 Mbps HiPoE port, 7 x 10/100
Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. The
switches provide advanced HiPoE/PoE technology and
supports extend mode with long-range access up to 250 m.
Meanwhile, the 2 x 10/100/1000 Mbps RJ45 uplink ports
guarantee applications of multiple network solutions.
Specification
Model DS-3E0310HP-E
Network
parameters
Port number
1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x
10/100/1000 Mbps RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table 16 K
Switching capacity 3.6 Gbps
Packet forwarding rate 4.166 Mpps
Internal cache 4 Mbits
PoE power
supply
PoE standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin
Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8
provide power supply simultaneously.
PoE port Ports 1 to 8
Max. port power
Port 1: 60 W
Ports 2 to 8: 30 W
PoE power budget 110 W
Max. power consumption 120 W
General
Shell Metal material, fan-free design
Weight 0.55 kg (1.21 lb)
Dimensions (L x H x D) 217.6 mm x 27.8 mm x 103.35 mm (8.6” x 1.1” x 4.1”)
Operating temperature 0˚C to 40˚C (32˚F to 104˚F)
Storage temperature –40˚C to 85˚C (–40˚F to 185˚F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 2.5 A
Power consumption 120 W
Physical Interface
Front panel:
Back panel:
Available Model
DS-3E0310HP-E
Dimension (unit: mm)
Typical Application
