DS-3E0326P-E/M(B)
24-Port 100 Mbps Long-Range Unmanaged PoE Switch


DS-3E0326P-E/M(B) switch is a layer 2 long-range PoE switch,
providing 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port,
and 1 x 1000 Mbps SFP fiber optical port. The switch provides
advanced PoE technology and supports extend mode with
long-range access up to 250 m. The prior and stable
transmission of the important surveillance area videos can
also be guaranteed when connected to the high priority
ports. The switch is reliable, easy to install and maintain, and
equipped with rapid switching functions. With multiple
access ports, it is applicable for access or aggregation and
upload of small-scale LAN devices.




Feature and Function
• 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP fiber optical port.
• IEEE 802.3at/af standard.
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• High priority ports.
• 8-core power supply.
• Up to 250 m transmission distance.
• 6 KV surge protection for PoE ports.
• PoE power management.
• 1000 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.









Specification
Model DS-3E0326P-E/M(B)
Network
parameters
Port number
24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000
Mbps SFP fiber optical port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance
transmission
Ports 17 to 24
MAC address table 4 K
Switching capacity 8.8 Gbps
Packet forwarding rate 6.547 Mpps
Internal cache 2.75 Mbits
PoE power
supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power
supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous
power supply.
Ports for close-range transmission (1-8) support 4-core power
supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 24
Max. port power 30 W
PoE power budget 230 W
Max. power consumption 250 W
General
Shell Metal material
Gross weight 3.33 kg (7.34 lb)
Net weight 2.55 kg (5.6 lb)
Dimension (L x H x D) 335 mm x 44.5 mm x 226 mm (13.2” x 1.8” x 8.9”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle 20 W










Physical Interface

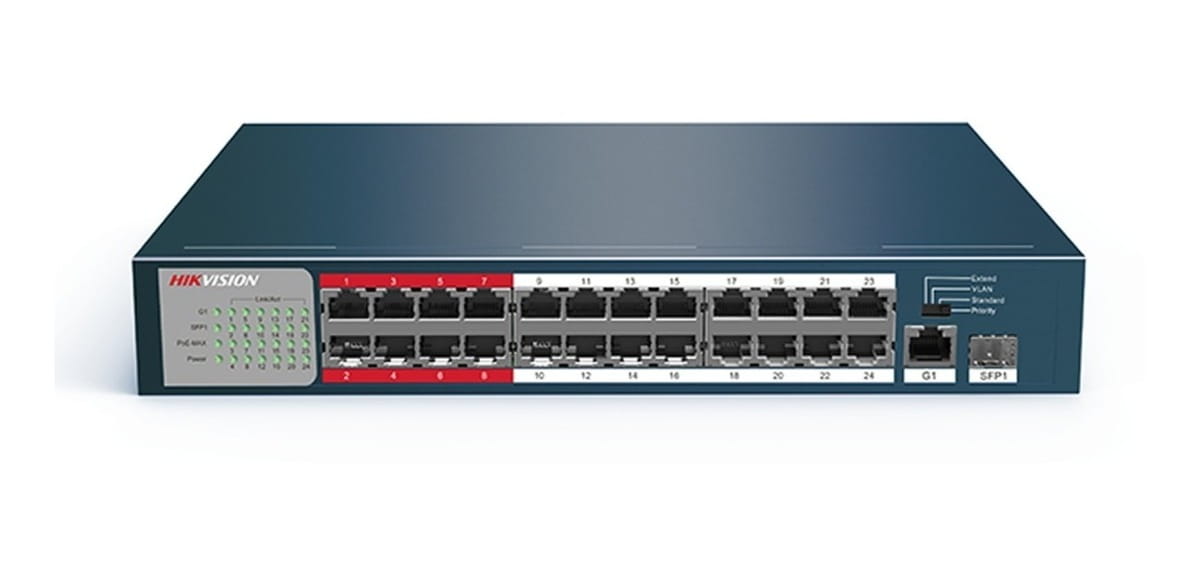

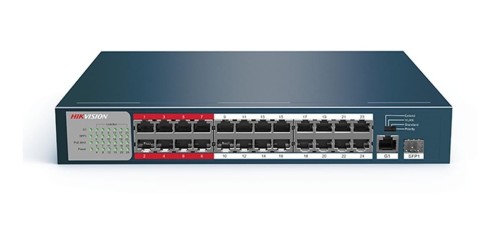

Front panel:

Back panel:


Available Model
• DS-3E0326P-E/M(B)

Optional Accessory
SFP Module Fiber type Connector Date Rate Wavelength Distance
HK-SFP-1.25G-20-1310
Single fiber,
Single-mode
LC 1250 Mbps Tx1310nm/Rx1550nm 0 to 20 km
HK-SFP-1.25G-20-1550
Single fiber,
Single-mode
LC 1250 Mbps Tx1550nm/Rx1310nm 0 to 20 km
HK-SFP-1.25G-1310-DF-MM
Duplex fiber,
Multi-mode
LC 1250 Mbps Tx1310nm/Rx1310nm 0 to 1 km
HK-SFP-1.25G-20-1310-DF
Duplex fiber,
Single-mode
LC 1250 Mbps Tx1310nm/Rx1310nm 0 to 20 km



HK-SFP-1.25G-20-1310 has to work with HK-SFP-1.25G-20-1550 as a pair.





Dimension (unit: mm)






Typical Application
