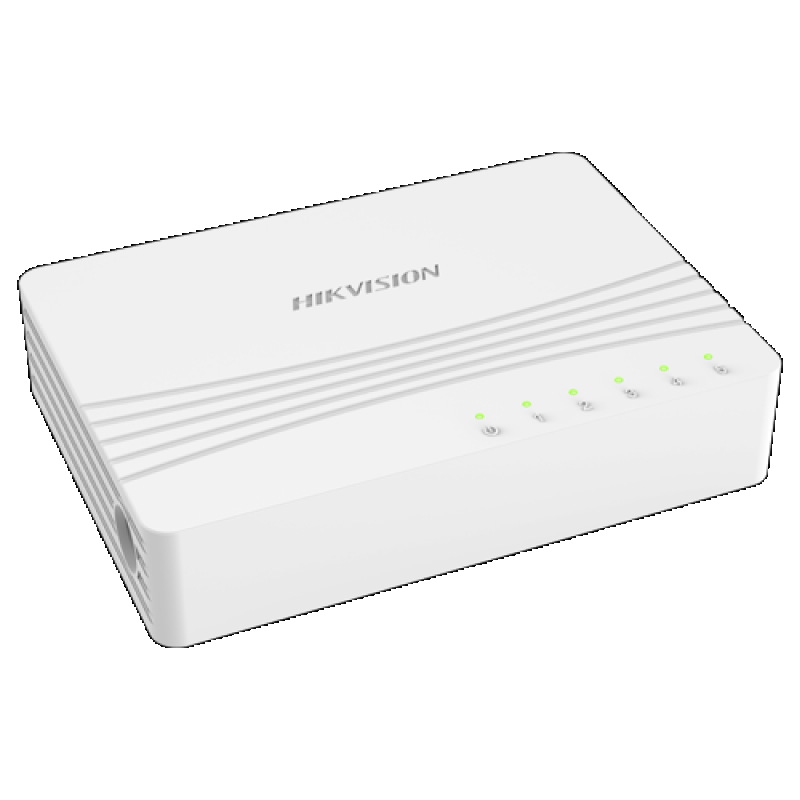

DS-3E0505D-E

DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch  * DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet  ports  * Support ADI/ADIX  * Store-and-forward switching  * Support MAC address auto-learning and aging  * Simple and mini exquisite body  * Support desktop and wall-mounting  * Plug & play, and easy to use  Feature and Function    DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet  ports which support line speed forwarding. With simple and  mini exquisite body, the switch is plug and play and easy to  use, suitable for home, school, dormitory, office, small  monitoring and other simple network environments.                      Model DS-3E0505D-E  Network parameters  Port number 5  Port type 10/100/1000 Mbps RJ45 ports  Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab  Forwarding mode Store and forward  MAC address table 2 K  Switching capacity 10 Gbps  Packet forwarding rate 7.44 Mpps  General  Shell ABS  Weight 0.03 kg  Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm  Operating temperature 0°C~40°C  Storage temperature -40°C~70°C  Operating humidity 10%~90% RH non-condensing  Storage humidity ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-3E0505D-E 10/100/1000 Mbps Ethernet Switch
* DS-3E0505D-E: 5 x 10/100/1000 Mbps adaptive Ethernet
ports
* Support ADI/ADIX
* Store-and-forward switching
* Support MAC address auto-learning and aging
* Simple and mini exquisite body
* Support desktop and wall-mounting
* Plug & play, and easy to use
Feature and Function

DS-3E0505D-E provides 5 x 10/100/1000 Mbps Ethernet
ports which support line speed forwarding. With simple and
mini exquisite body, the switch is plug and play and easy to
use, suitable for home, school, dormitory, office, small
monitoring and other simple network environments.










Model DS-3E0505D-E
Network parameters
Port number 5
Port type 10/100/1000 Mbps RJ45 ports
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding mode Store and forward
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
General
Shell ABS
Weight 0.03 kg
Dimensions (L x H x D) 92.8 x 65.8 x 22.8 mm
Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Operating humidity 10%~90% RH non-condensing
Storage humidity 5%~90% RH non-condensing
Power supply 5 V DC, 0.6 A
Specification



Physical Interface
Front panel:


Side panel:


Available Model
DS-3E0505D-E
Accessories
Power adapter x 1, User manual x 1, Switch x 1
Dimension






Typical Application
