DS-3WF01C-2N

Verfügbarkeit: 0
Preis: 231,24 € 231.24
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 301801029

Beschreibung

DS-3WF01C-2N Wireless Elevator Bridge     High performance 802.11n 2x2 MIMO chip   Four operating modes: Access Point, Client, Access Point (WDS), Client (WDS)   Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust   TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP  performance   Point-to-point, point-to-multipoint connection   Unique antenna, RF amplifier, and low noise receiver to ensure long-distance video transmission   Web based working scenario selection makes the installation and setting much easier   Multi-network interface design, more conducive to the expansion of a variety of applications   Web-based configuration, easy to use   High temperature and flame resistant housing ensure stable operation in harsh environments    Features and Functions                      Items Specifications  Wireless  Standard IEEE802.11 b/g/n(2T2R 300Mbps)  Operation frequency 2412 to 2472 MHz(More Non-standard channels is availability,2312MHz to 2732MHz)  Antenna Internal, 6dBi, H: 65° V: 60°  Max output power 27dBm  Receive sensitivity -72dBm@65Mbps, ...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

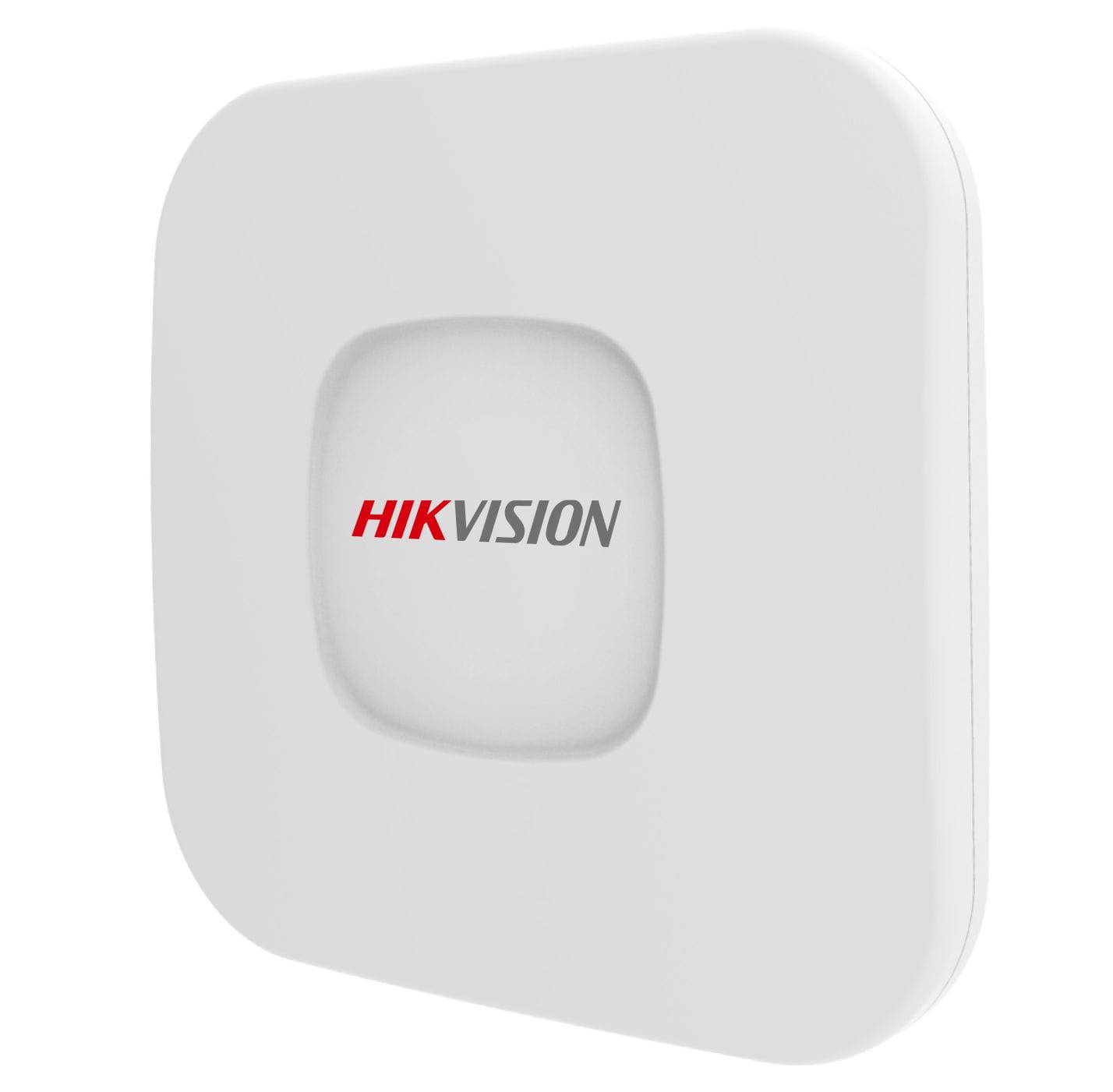

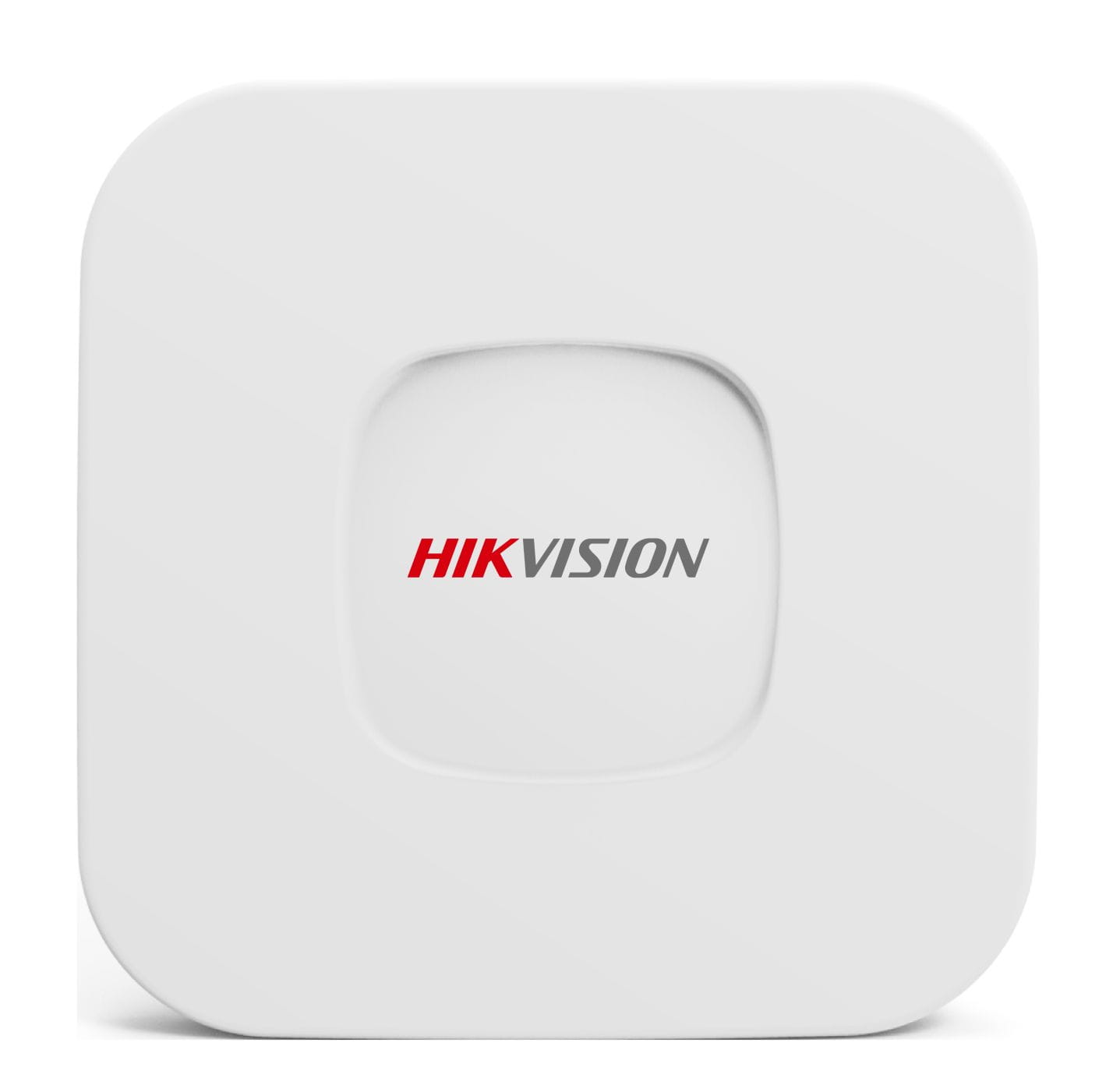

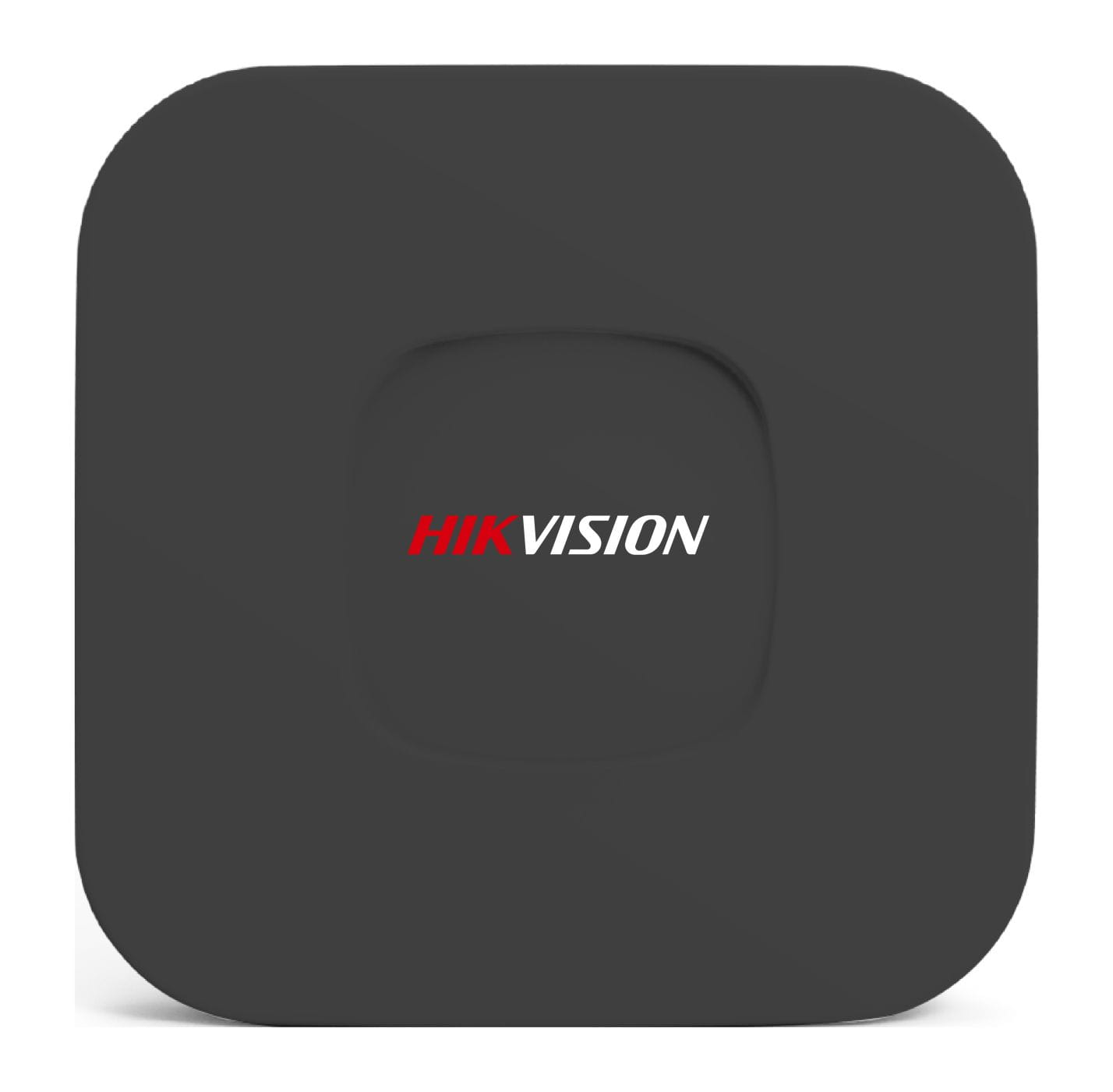

DS-3WF01C-2N Wireless Elevator Bridge

 High performance 802.11n 2x2 MIMO chip
 Four operating modes: Access Point, Client, Access Point (WDS), Client (WDS)
 Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust
 TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP
performance
 Point-to-point, point-to-multipoint connection
 Unique antenna, RF amplifier, and low noise receiver to ensure long-distance video transmission
 Web based working scenario selection makes the installation and setting much easier
 Multi-network interface design, more conducive to the expansion of a variety of applications
 Web-based configuration, easy to use
 High temperature and flame resistant housing ensure stable operation in harsh environments

Features and Functions










Items Specifications
Wireless
Standard IEEE802.11 b/g/n(2T2R 300Mbps)
Operation frequency 2412 to 2472 MHz(More Non-standard channels is availability,2312MHz to 2732MHz)
Antenna Internal, 6dBi, H: 65° V: 60°
Max output power 27dBm
Receive sensitivity -72dBm@65Mbps, -97dBm@1Mbps
Max transmission rate 11n: 300Mbps(HT40)/130Mbps(HT20) 11g: 54Mbps
Hardware
Power supply 48V/0.25A PoE or 12 VDC
Interface 3x10/100M Base-TX (Cat. 5/5E, RJ-45) ports
Operation temperature -30℃ to +65℃(-22℉ to +149℉)
Storage temperature -40℃ to +85℃(-40℉ to +185℉)
Operation humidity 5% to 95%RH non-condensing
Dimensions 150x150x31.6 mm (5.9x5.9x1.24 inch)
Software
Application scenarios Elevator Room/IP Camera
Encryption WPA-PSK/WPA2-PSK
Network mode Router/Bridge
Security IP/MAC filter, SSID hidden, Interface Isolation
Network protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA Supported (Extend private communication protocol)
Auto ACK timing adjust
Supported (It can automatically detect the distances of the devices, keep the
performance always the best)
Management and Logs NTP, Syslog, Telnet, AC
Web based configuration Supported
Firmware update Support update firmware by Web page
Bandwidth 20M/40MHz
Specifications






Physical Interfaces


Index Description Index Description
1 LAN1: Connect to camera, information
distribution screen and other equipment
4 12 VDC power supply port
2 LAN2: Connect to camera, information
distribution screen and other equipment
5 Reset Button: Restore default factory settings
3 Signal strength indicator 6 PoE: PoE port connection with PoE power
supply
Available Model
DS-3WF01C-2N
