DS-3WF03C
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-3WF03C-D Outdoor Wireless Bridge High performance 802.11n 2x2 MIMO chip Longest transmission range: 3Km, and effective transmission throughput: 40Mbps Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP performance 5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater Point-to-point connection Unique RF and antenna design enables long-range transmission Wireless multimedia optimization technology guarantees video/audio transmission QoS Web based working scenario selection makes the installation and setting much easier Reliable PoE power supply, support 802.3af standard Web-based configuration, easy to use Waterproof housing and accessory kit protects Features and Functions Items Specifications Wireless Standard IEEE802.11 a/n(2T2R 300Mbps) Operation frequency 5745 to 5825MHz(More Non-standard channels is availability, the range: 4920MHz to 6100MHz) Modulation mode 802.11 a/n: OFDM Antenna Internal, Gain 15dBi, H:40° V:15° ...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:

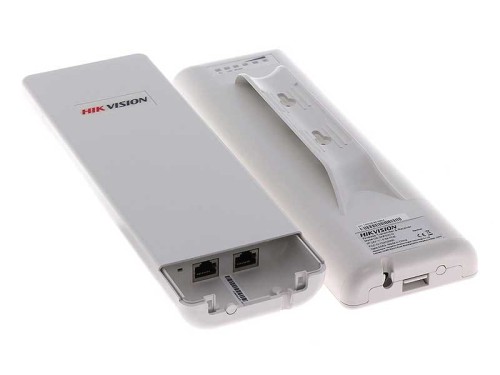

DS-3WF03C-D Outdoor Wireless Bridge
High performance 802.11n 2x2 MIMO chip
Longest transmission range: 3Km, and effective transmission throughput: 40Mbps
Integrated XTrans technology, including TDMA, intelligent rate control, Auto ACK Time-out adjust
TDMA solves the problems of hidden-node problem in the 802.11 network, thus having better long-distance and PTMP
performance
5 operation mode: Access Point, Station, WDS Access Point, WDS Station, WDS Repeater
Point-to-point connection
Unique RF and antenna design enables long-range transmission
Wireless multimedia optimization technology guarantees video/audio transmission QoS
Web based working scenario selection makes the installation and setting much easier
Reliable PoE power supply, support 802.3af standard
Web-based configuration, easy to use
Waterproof housing and accessory kit protects
Features and Functions
Items Specifications
Wireless
Standard IEEE802.11 a/n(2T2R 300Mbps)
Operation
frequency
5745 to 5825MHz(More Non-standard channels is availability, the range: 4920MHz to 6100MHz)
Modulation mode 802.11 a/n: OFDM
Antenna Internal, Gain 15dBi, H:40° V:15°
Output power 27dBm
Receive sensitivity -74dBm@65Mbps, -96dBm@6Mbps
Data rate
11n:13.5/15/27/30/40.5/45/54/60/81/90/108/120/121.5/135/150/162/180/216/240/270/300
Mbps(40MHz)
130/117/104/78/65/58.5/52/39/26/13/6.5Mbps(20MHz)
11a :54/48/36/24/18/12/9/6Mbps(Auto)
Hardware
Power supply 24V/0.5A PoE
Interface PoEx1+LANx1
Operation
temperature
-30℃ to +75℃ (-22℉ to +167℉)
Storage
temperature
-40℃ to +85℃ (-40℉ to +185℉)
Operation humidity 5% to 95%RH non-condensing
Dimensions 270x40x88 mm (10.6x1.57x3.46 inch)
Software
Encryption 802.1x/WPA-PSK/WPA2-PSK
Network mode Router/Bridge
Operation mode Access Point, Station, WDS Access Point, WDS Station
Security IP/MAC filter, SSID hidden
Network protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA
Supported (Avoid 802.11 hidden-node problems, and improve the point-to-multi-point
performance)
Auto ACK timing
adjust
Supported(It can automatically choose optimized parameter in long distance transmission,keep
the performance always the best)
Management and
Logs
NTP, Syslog, Telnet, AC
Web based
configuration
Supported
Firmware update Support update firmware by Web page
Bandwidth
supported
5M/10M/20M/40MHz
Specifications
Physical Interfaces
Index Description Index Description
1 Reset button 3 PoE interface
2 LAN interface
DS-3WF03C-D
Available Model
