DS-6700NI-S(STD)

DS-6700NI-S  Hik-ProConnect Box                    Cloud Storage   Up to 8-ch cloud storage with Hikvision cameras or  DVRs/NVRs     Cloud storage videos support ANR (Automatic Network  Replenishment)      Hik-ProConnect Platform   Manageable by Hik-ProConnect platform   Cloud storage videos support remote playback      Typical Application                   Specification  Video and Audio  IP Video Input 8-ch  Incoming Bandwidth 80 Mbps  Outgoing Bandwidth 80 Mbps  Decoding  Decoding Format H.265, H.265+, H.264, H.264+  Decoding Capability 8-ch@1080p (30 fps)  Stream Type Video, Video & Audio  Encoding  Video Encoding Resolution 1080p/720p  Encoding Capability 2-ch@1080p (30 fps)  Frame Rate  5-ch@1080p (10 fps), 6-ch@1080p (8 fps), 7-ch@1080p (7 fps), 8-ch@1080p (6 fps)  *: 5-ch/6-ch/7-ch/8-ch is the total number of channels for uploading cloud storage  videos.  Network  Network Protocol IPv4, IPv6, HTTP, HTTPS, NTP, SADP, DHCP  Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface  General  Power output 12 VDC, 1A  Consumption ≤ 6 ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

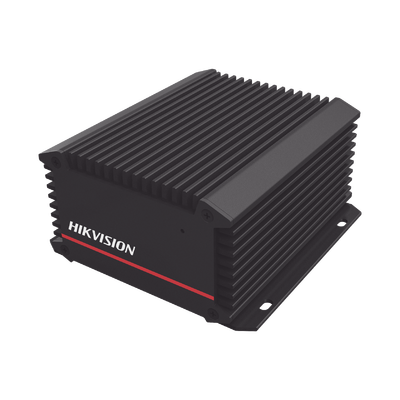

DS-6700NI-S
Hik-ProConnect Box









Cloud Storage
 Up to 8-ch cloud storage with Hikvision cameras or
DVRs/NVRs

 Cloud storage videos support ANR (Automatic Network
Replenishment)


Hik-ProConnect Platform
 Manageable by Hik-ProConnect platform
 Cloud storage videos support remote playback


Typical Application








 Specification
Video and Audio
IP Video Input 8-ch
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
Decoding
Decoding Format H.265, H.265+, H.264, H.264+
Decoding Capability 8-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Encoding
Video Encoding Resolution 1080p/720p
Encoding Capability 2-ch@1080p (30 fps)
Frame Rate
5-ch@1080p (10 fps), 6-ch@1080p (8 fps), 7-ch@1080p (7 fps), 8-ch@1080p (6 fps)
*: 5-ch/6-ch/7-ch/8-ch is the total number of channels for uploading cloud storage
videos.
Network
Network Protocol IPv4, IPv6, HTTP, HTTPS, NTP, SADP, DHCP
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
General
Power output 12 VDC, 1A
Consumption ≤ 6 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10％ to 90％
Dimension (W x D x H) 92 x 93 x 45.8 mm (3.6 x 3.7 x 1.8 inch)
Weight ≤ 0.5 kg (1.1 lb)

 Dimension








Physical Interface




No. Description No. Description
1 12 VDC Power Input 3 Reset
2 LAN Network Interface 4 GND















 Available Model
DS-6700NI-S
