Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-7104HGHI-F1(S)

Ersatzproduktcode: 300225244

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com
210


DS-7104HGHI-F1, DS-7108HGHI-F1,
DS-7116HGHI-F1
Available Models
DS-7104/08/16HGHI-F1
Physical Interfaces

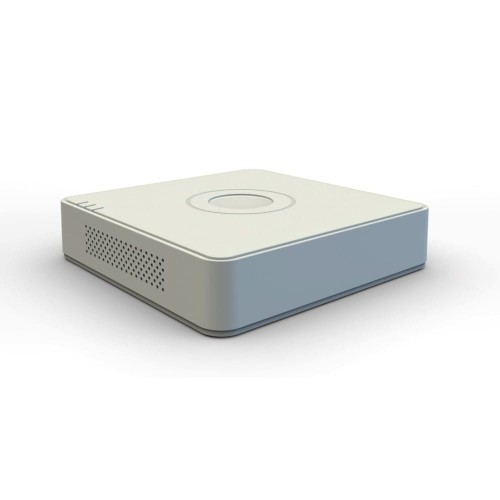

720P Mini 1U Turbo HD DVR
• 4/8/16-ch video & 1-ch audio input
• HD-TVI/AHD/analog camera triple hybrid
• H.264 / H.264+ video compression
• Full channel real-time recording at 720P resolution
• HDMI output at up to 1920x1080P resolution
• Long transmission distance over coax cable
• 1 SATA, 2 USB2.0
Key features

DS-7104HGHI-F1 DS-7108HGHI-F1 DS-7116HGHI-F1
Video/Audio input
Video input
4-ch 8-ch 16-ch
BNC interface (1.0Vp-p, 75 Ω)
Supported HDTVI input720p/25Hz, 720p/30Hz
Supported AHD input 720p/25Hz, 720p/30Hz, CVBS
Audio input/ Two-way audio
input
1-ch , RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA output 1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio output1-ch, RCA (Linear, 1 KΩ)
Network management
Remote connections 32 128 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI,
UPnP™, HTTPS
Encoding
Video compression standard H.264+/H.264
Encoding resolution 720p/WD1/4CIF/VGA/CIF
Frame rate 25fps(P)/30fps(N)
Video bitrate 32 Kbps to 4 Mbps
Stream type Video & Audio/Video
Dual-stream Support. Sub-stream resolution: CIF/QVGA/QCIF (real time)
Audio compression standard G.711u
Audio bitrate 64 Kbps
Synchronous playback 4-ch 8-ch 16-ch
Hard disk
Type 1
Capacity Up to 6 TB capacity for each disk
External interface
Network interface 1; RJ-45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply12 VDC
Consumption
(without hard disks)
≤ 8W ≤ 12W ≤ 20W
Working temperature-10ºC to +55ºC (14ºF to 131ºF)
Working humidity10% to 90%
Dimensions
(W x D x H)
200 x 200 x 45mm (7.9 x 7.9 x 1.8 inch)
285 x 210 x 45 mm (11.2 x 8.3
x 1.8 inch)
Weight
(without hard disks)
≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)

The rear panel of DS-7108HGHI-F1/DS-
7116HGHI-F1 provides 8/16 video input
interfaces.

Index Description
1 VIDEO IN
2 HDMI Interface
3 VGA Interface
4AUDIO OUT, RCA Connector
5 AUDIO IN, RCA Connector
6LAN Network Interface
7 USB Ports
8 GND
9 12VDC Power Input
