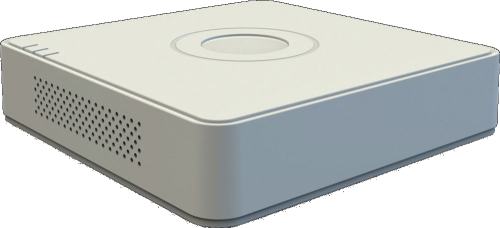

DS-7104HQHI-K1

Verfügbarkeit: 1-5
Preis: 109,42 € 109.42
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300220319

Beschreibung

DS-7100HQHI-K1 SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   Up to 2-ch 4 MP IP cameras input   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4  of DS-7116HQHI-K1   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback   Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function   VQD (Video Quality Diagnostics)   Supports PTZ control via Omnicast VMS of Genetec protocol  Network & Ethernet Access   Hik-Connect...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-7100HQHI-K1 SERIES TURBO HD DVR

Video Input and Transmission
 Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
 Up to 2-ch 4 MP IP cameras input
 Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Connectable to H.265+/H.265/H.264+/H.264 IP cameras
 H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
 Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4
of DS-7116HQHI-K1
 Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback
 Smart search for efficient playback
 Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 VQD (Video Quality Diagnostics)
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 One RJ45 10M/100M Ethernet network interface
 Output bandwidth limit configurable
Features and Functions






Model DS-7104HQHI-K1 DS-7108HQHI-K1 DS-7116HQHI-K1
Video/Audio input
Video
compression
H.265+/H.265/H.264+/H.264
Analog video
input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of
DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP video input
1-ch 2-ch 2-ch
Up to 4 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio
compression
G.711u
Audio
input/Two-way
audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA
output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding
resolution
When 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback 4-ch 8-ch 16-ch
Network
management
Remote
connections 128
Network
protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA 1 SATA interface
Capacity
Up to 4 TB capacity for each
disk Up to 6 TB capacity for each disk
External interface
Network
interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Real panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 8 W ≤ 12 W ≤ 15 W
Working
temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working
humidity 10% to 90%
Dimensions
(W x D x H)
200 x 200 x 45 mm (7.9 x 7.9 x 1.8 inch) 285 x 210 x 45 mm (11.2 x
8.3 x 1.8 inch)
Weight
(without HDD)
≤ 1 kg (2.2 lb)
Specifications




Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interfaces
3 VGA Interface 8 GND
4 AUDIO OUT, RCA Connector 9 12 VDC Power Input
5 AUDIO IN, RCA Connector
DS-7104HQHI-K1, DS-7108HQHI-K1, DS-7116HQHI-K1
Physical Interfaces
03050201070623
Available Models


The rear panel of DS-7108/7116HQHI-K1 provides 8/16 video input interfaces.
