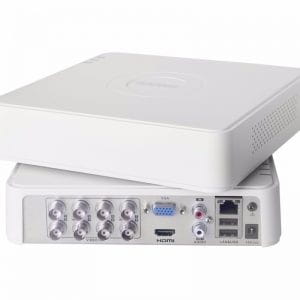

DS-7108HGHI-F1/N

Verfügbarkeit: 0
Preis: 94,32 € 94.32
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300216951

Beschreibung

DS-7100HGHI-F1/N SERIES TURBO HD DVR    Video Input and Transmission   Connectable to Turbo HD/HDCVI/AHD/CVBS signal input   Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback  Smart Function   VQD (Video Quality Diagnostics)   Unlock pattern for device login for the admin and clear-text password available   GUID file can be exported for password resetting and imported for finding the forgotten password   Supports PTZ control via Omnicast VMS of Genetec protocol  Network & Ethernet Access   Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management   One self-adaptive 10/100 Mbps network interface   Output bandwidth limit configurable    Features and Functions   ...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-7100HGHI-F1/N SERIES TURBO HD DVR

Video Input and Transmission
 Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
 Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback
 Smart search for efficient playback
Smart Function
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 One self-adaptive 10/100 Mbps network interface
 Output bandwidth limit configurable

Features and Functions









Model

DS-7104HGHI-F1/N DS-7108HGHI-F1/N DS-7116HGHI-F1/N
Video/Audio
input
Video compression H.264+/H.264
Analog video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
Audio compression G.711u
Audio input/Two-way
audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA output
1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p
lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Network
management
Remote connections 32 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External
interface
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 8 W ≤ 12 W ≤ 20 W
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity 10% to 90%
Dimensions(W x D x
H)
200 x 200 x 45 mm (7.9 x 7.9 x 1.8
inch)
285 x 210 x 45 mm (11.2 x 8.3 x
1.8 inch)
Weight(without HDD) ≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)
Specifications



Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interfaces
3 VGA Interface 8 GND
4 AUDIO OUT, RCA Connector 9 12 VDC Power Input
5 AUDIO IN, RCA Connector
DS-7104HGHI-F1/N, DS-7108HGHI-F1/N, DS-7116HGHI-F1/N

Physical Interfaces
03040811070124

Available Models


The rear panel of DS-7108/7116HGHI-F1/N provides 8/16 video input interfaces.
