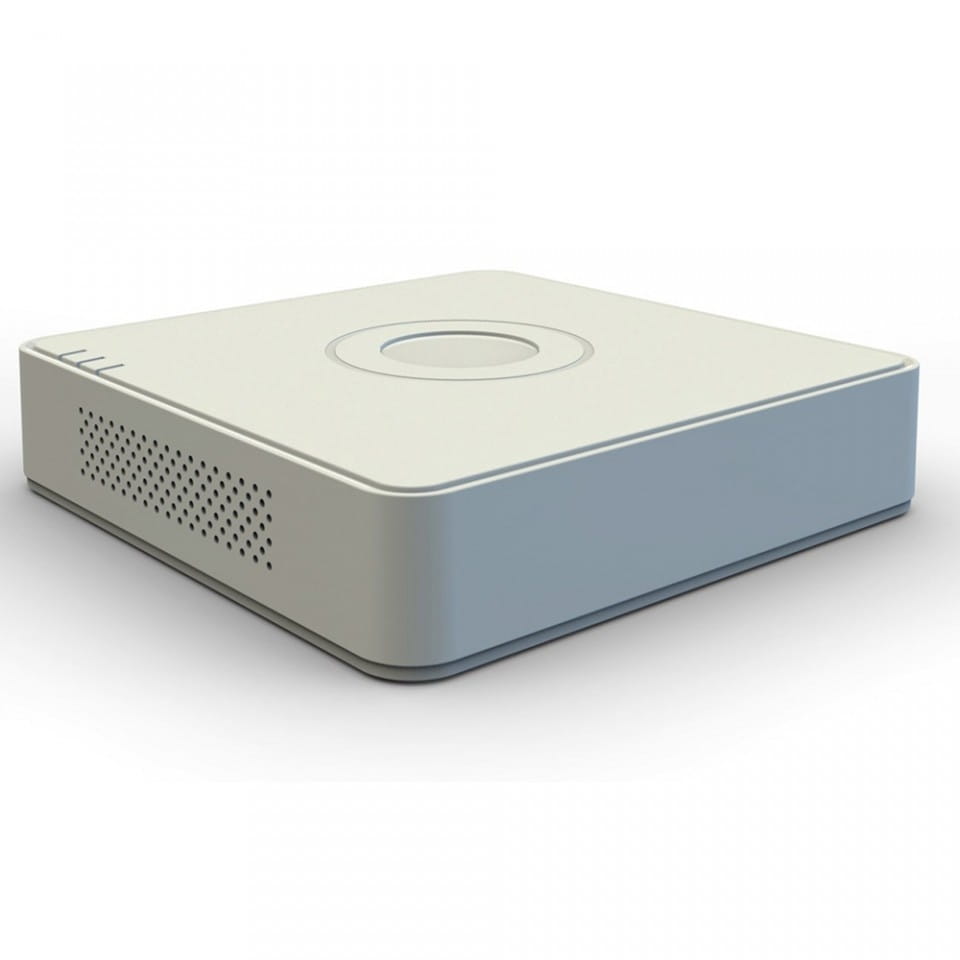

DS-7108HQHI-F1/N

DS-7100HQHI-F1/N SERIES TURBO HD DVR    Video Input and Transmission   Connectable to HDTVI, AHD and analog cameras   Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI  signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N,  and the first 4 channels of DS-7116HQHI-F1/N   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 x 2160)  resolution for HDMI output of DS-7116HQHI-F1/N  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback  Smart Function   VQD (Video Quality Diagnostics)   Unlock pattern for device login for the admin and clear-text password available   GUID file can be exported for password resetting and imported for finding the forgotten password <...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7100HQHI-F1/N SERIES TURBO HD DVR

Video Input and Transmission
 Connectable to HDTVI, AHD and analog cameras
 Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI
signal
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N,
and the first 4 channels of DS-7116HQHI-F1/N
 Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 x 2160)
resolution for HDMI output of DS-7116HQHI-F1/N
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback
 Smart search for efficient playback
Smart Function
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 One self-adaptive 10/100Mbps network interface for DS-7104/7108HQHI-F1/N and one self-adaptive 10/100/1000Mbps
network interface for DS-7116HQHI-F1/N
 Output bandwidth limit configurable
Features and Functions






Model DS-7104HQHI-F1/N DS-7108HQHI-F1/N DS-7116HQHI-F1/N
Video/Audio input
Video
compression
H.264+/H.264
Analog video
input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the
first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N.
AHD input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
Audio
compression
G.711u
Audio
input/Two-way
audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA
output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
HDMI: 1-ch, 4K (3840 x
2160)/30Hz, 2K (2560 x
1440)/60Hz, 1920 x
1080/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz
VGA: 1-ch, 2K (2560 x
1440)/60Hz, 1920 x
1080/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz
Encoding
resolution
When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback 4-ch 8-ch 16-ch
Network
management
Remote
connections 128
Network
protocols TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
External interface
Network
interface 1, RJ45 10M/100M self-adaptive Ethernet interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet
interface
USB interface Real panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 8 W ≤ 12 W ≤ 20 W
Working
temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working
humidity 10% to 90%
Dimensions
(W x D x H) 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 inch)
285 x 210 x 45 mm (11.2 x 8.3
x 1.8 inch)
Weight
(without HDD)
≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)
Specifications




Index Description Index Description
1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interfaces
3 VGA Interface 8 GND
4 AUDIO OUT, RCA Connector 9 12 VDC Power Input
5 AUDIO IN, RCA Connector
DS-7104HQHI-F1/N, DS-7108HQHI-F1/N, DS-7116HQHI-F1/N
Physical Interfaces
03040801061024
Available Models

The rear panel of DS-7108/7116HQHI-F1/N provides 8/16 video input interfaces.
