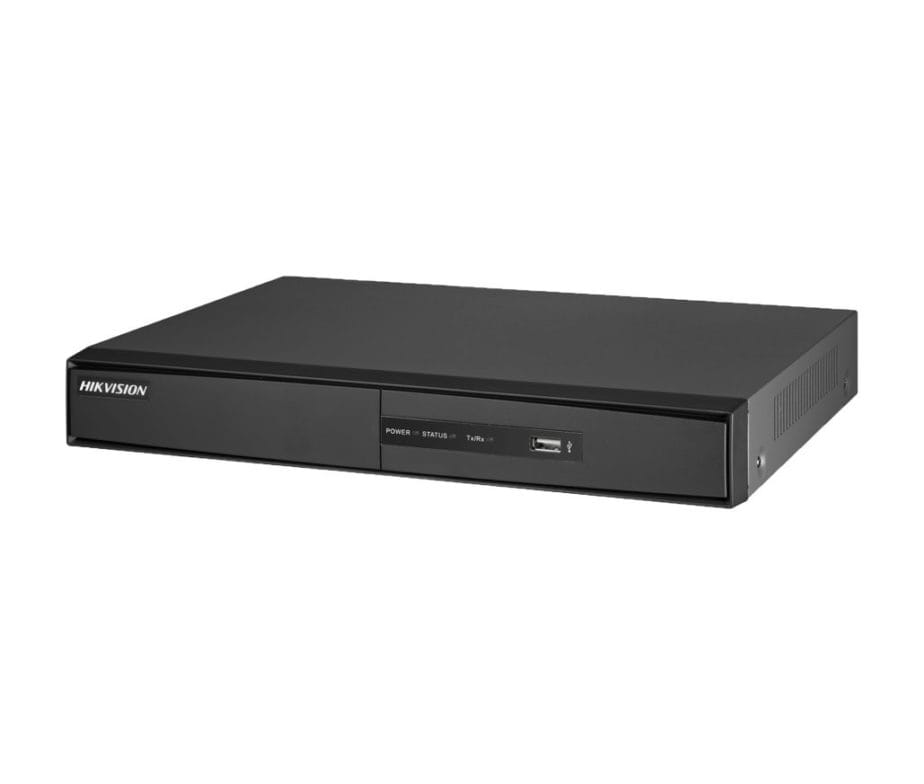

DS-7208HGHI-F1/NB
product unavailable
zur Wunschliste hinzufügenBeschreibung
Key Feature Support H.264+/H.264 video compression Support HDTVI/AHD/CVI/CVBS/IP video input Up to 10-ch IP camera input (up to 960p) Compression and Recording H.264 + video compression improves encoding efficiency and reduces data storage costs Full channel recording at up to 1080p lite resolution Storage and Playback 1 SATA interface (up to 6 TB capacity per HDD) Smart search for efficient playback Smart Function Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras VQD (Video Quality Diagnostics) Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Output bandwidth limit configurable DS-7208HGHI-F1/NB TURBO HD DVR Specification Model DS-7208HGHI-F1/NB Recording Video compression H.264+/H.264 Encoding resolution When 1080p lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode is enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF Frame rate Main stream: When 1080p lite mode is enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
Key Feature
Support H.264+/H.264 video compression
Support HDTVI/AHD/CVI/CVBS/IP video input
Up to 10-ch IP camera input (up to 960p)
Compression and Recording
H.264 + video compression improves encoding efficiency and reduces data storage costs
Full channel recording at up to 1080p lite resolution
Storage and Playback
1 SATA interface (up to 6 TB capacity per HDD)
Smart search for efficient playback
Smart Function
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
VQD (Video Quality Diagnostics)
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Output bandwidth limit configurable
DS-7208HGHI-F1/NB
TURBO HD DVR
Specification
Model DS-7208HGHI-F1/NB
Recording
Video compression H.264+/H.264
Encoding resolution
When 1080p lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode is enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p lite mode is enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode is not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
2-ch (up to 10-ch)
Up to 960p resolution
Support H.264+/H.264 IP cameras
Analog video input
8-ch
Balun interface, supporting coaxitron connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
HDMI/VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch
Network
Remote connections 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Alarm in/out N/A
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption (without HDD) ≤ 12 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions (W x D x H) 260 x 222 x 45 mm (10.2 x 8.7 x 1.8 inch)
Weight (without HDD) ≤ 1 kg (2.2 lb)
Physical Interface
No. Description No. Description
1 VIDEO IN, Balun Interface 6 LAN Interface
2 VGA Interface 7 USB Interface
3 HDMI Interface 8 12 VDC Power Input
4 AUDIO IN 9 GND
5 AUDIO OUT
Available Model
DS-7208HGHI-F1/NB
0304891090121
