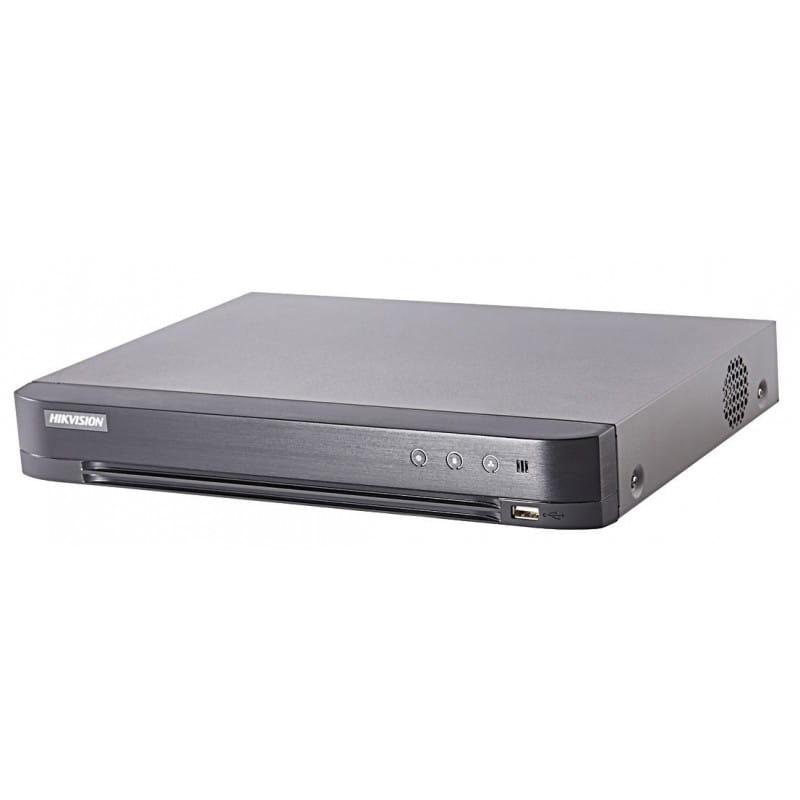

DS-7208HQHI-K1(S)

Key Features   Support H.265 Pro+/H.265 Pro/H.265 video compression   Support HDTVI/AHD/CVI/CVBS/IP video input   Max. 6/12/24 IP cameras input (up to 6 MP)   Max. 800 m for 1080p and 1200 m for 720p HDTVI signal  transmission   Up to 10 TB capacity per HDD          Compression and Recording   H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs   Full channel recording at up to 4 MP lite resolution  Storage and Playback   Smart search for efficient playback   Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function   Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras   Support 4-ch line crossing detection and intrusion detection; DS-7216HQHI-K1 supports 1-ch sudden scene change detection  Network & Ethernet Access   Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management   Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable  DS-7200HQHI-K1 SERIES  TURBO HD DVR            Specifications    Model DS-7204HQHI-K1 DS-7208HQHI-K1 DS-7216HQHI-K1  Recording  Video compression H.265 Pr...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: iDS-7208HQHI-M1/S

Ersatzproduktcode: 300224128

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Key Features
 Support H.265 Pro+/H.265 Pro/H.265 video compression
 Support HDTVI/AHD/CVI/CVBS/IP video input
 Max. 6/12/24 IP cameras input (up to 6 MP)
 Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
transmission
 Up to 10 TB capacity per HDD




Compression and Recording
 H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
 Full channel recording at up to 4 MP lite resolution
Storage and Playback
 Smart search for efficient playback
 Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Support 4-ch line crossing detection and intrusion detection; DS-7216HQHI-K1 supports 1-ch sudden scene change detection
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable
DS-7200HQHI-K1 SERIES
TURBO HD DVR





Specifications

Model DS-7204HQHI-K1 DS-7208HQHI-K1 DS-7216HQHI-K1
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps
(N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
2-ch (up to 6-ch) 4-ch (up to 12-ch) 8-ch (up to 24-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for
channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 x 576, NTSC: 704 x 480







HDMI/VGA output
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA: 1-ch,
1920 x 1080/60Hz, 1280 x
1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz
HDMI: 1-ch,
4K (3840 x 2160)/30Hz,
2K (2560 x 1440)/60Hz,
1920 x 1080/60Hz, 1280 x
1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch 8-ch 16-ch
Network
Remote connections 32 64 128
Network protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
1,
RJ45 10M/100M/1000M
self-adaptive
Ethernet interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface 2 x USB 2.0
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Alarm in/out N/A
General
Power supply 12 VDC
Consumption
(without HDD)
≤ 6 W ≤ 7.5 W ≤ 25 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W x D x H) 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weights (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)



*: The rear panel of DS-7204/7208HQHI-K1 provides 4/8 video input interfaces.

Physical Interfaces






No. Description No. Description
1 VIDEO IN 7 LAN Network Interface
2 AUDIO IN, RCA Connector 8 RS-485 Serial Interface
3 AUDIO OUT, RCA Connector 9 Power Input
4 VGA Interface 10 Power Switch
5 HDMI Interface 11 GND
6 USB Interface 12 VIDEO OUT

Available Models
DS-7204HQHI-K1, DS-7208HQHI-K1, DS-7216HQHI-K1
040200180815
