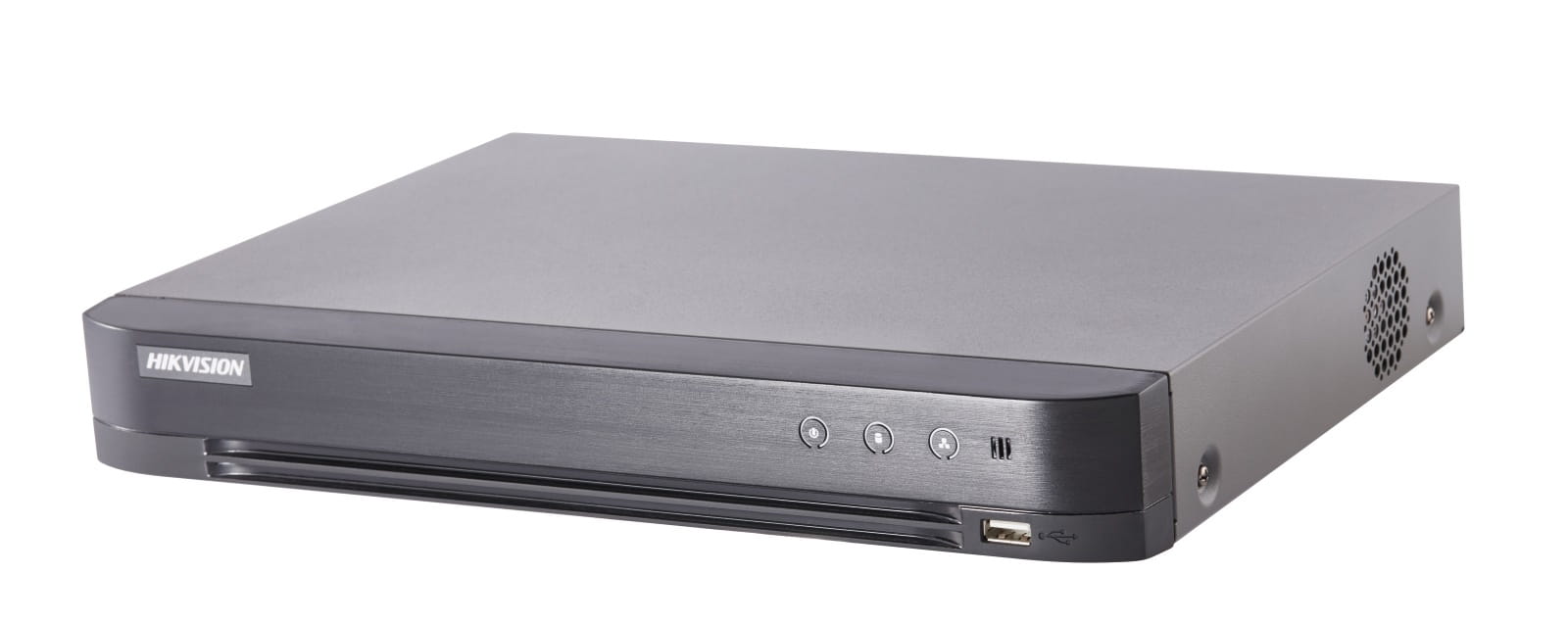

DS-7208HUI-K1 SERIES TURBO HD DVR
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 2-ch 6 MP IP cameras input
5 MP/4 MP HDTVI video input and live view
Defogging function enabled for the supported analog cameras
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Connectable to H.265 and H.264 IP cameras
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
Full channel recording at up to 5 MP resolution
Video Output
Simultaneous HDMI/VGA output
HDMI output at up to 4K (3840 x 2160) resolution
Separate CVBS output
Storage and Playback
1 SATA interface (up to 8 TB capacity per HDD)
8-ch synchronous playback
Smart search for efficient playback
Supports the 3
rd
party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
VCA information overlay in live view and smart playback
VQD (Video Quality Diagnostics)
Unlock pattern for device login for the admin and clear-text password available
GUID file can be exported for password resetting and imported for finding the forgotten password
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
1 gigabit Ethernet network interface
Output bandwidth limit configurable
Features and Functions
Model DS-7208HUI-K1
Video/Audio
input
Video
compression H.265+/H.265/H.264+/H.264
Analog video
input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input
2-ch
Up to 6 MP resolution
Audio
compression
G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA
output
VGA: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Encoding
resolution
5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback
8-ch
Network
management
Remote
connections 128
Network
protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Hard disk
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
External interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st
audio input)
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial interface RS-485 (half-duplex)
Alarm in/out 8/4
General
Power supply 12 VDC
Consumption
(without HDD) ≤ 20 W
Working
temperature
-10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch)
Weight
(without HDD) ≤ 2 kg (4.4 lb)
Specifications

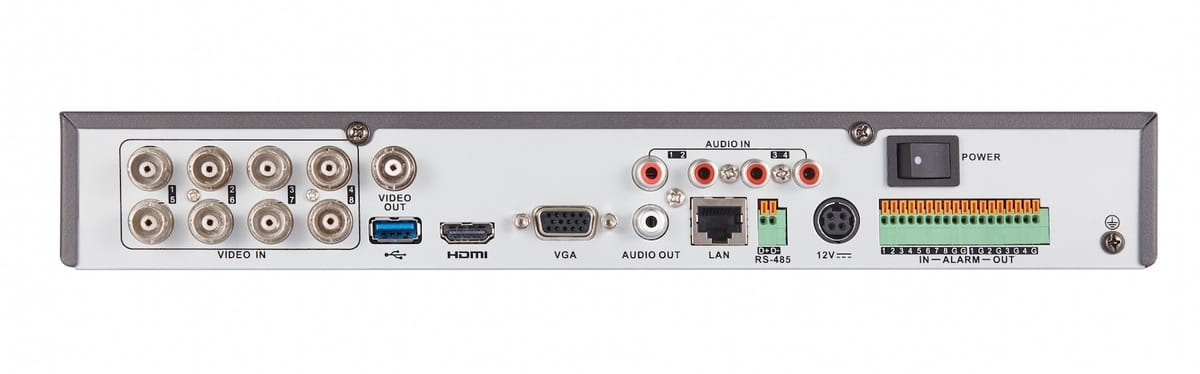

Index Description Index Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface
DS-7208HUI-K1
Physical Interfaces
