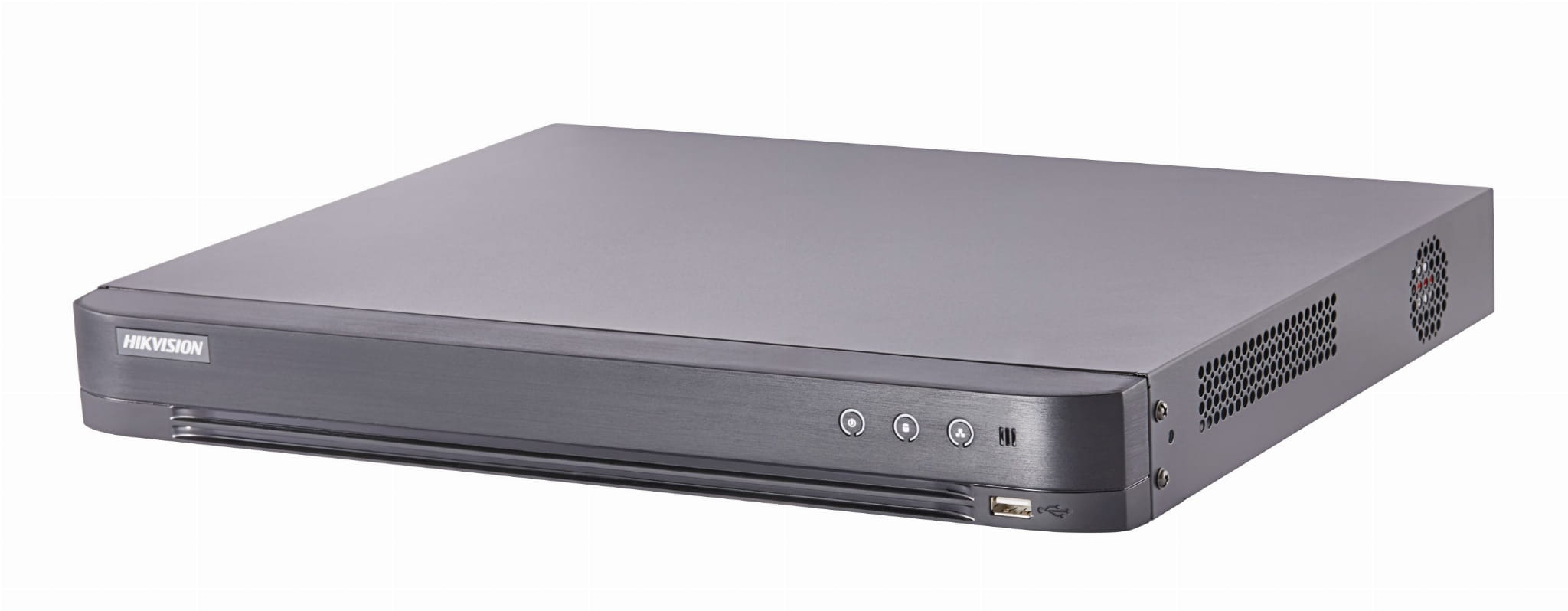

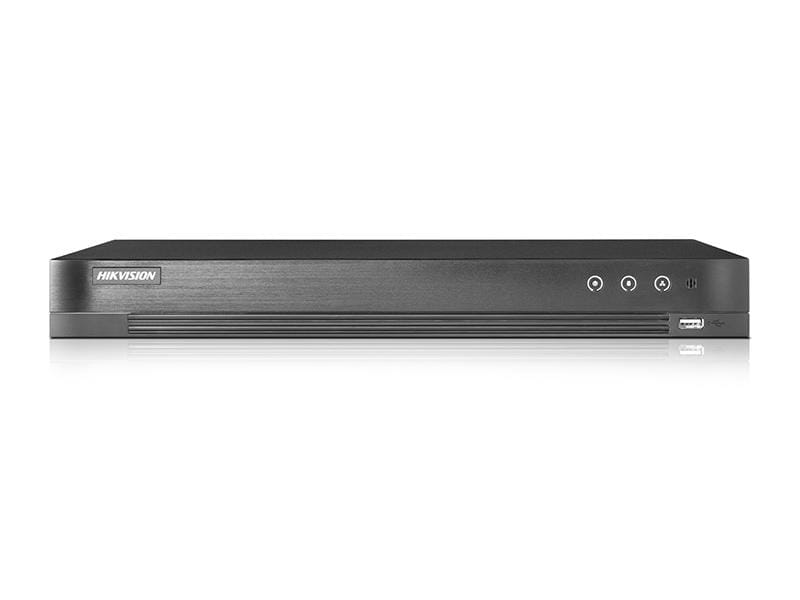

DS-7208HUHI-K2

Verfügbarkeit: 11-50
Preis: 353,58 € 353.58
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 300219532

Beschreibung

DS-7200HUHI-K/P SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive normal camera and Hikvision PoC camera connection   Up to 2-ch 6 MP IP cameras input   5 MP/4 MP HDTVI video input and live view   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and  200m for PoC camera   Automatic power supply management for PoC camera to guarantee safety  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Full channel recording at up to 5 MP resolution  Video Output   Simultaneous HDMI/VGA output   HDMI output at up to 4K (3840 x 2160) resolution for DS-7208HUHI-K2/P   Separate CVBS output  Storage and Playback   One SATA interface for DS-7204HUHI-K1/P, and two SATA interfaces for DS-7208HUHI-K2/P (up to 8 TB capacity per HDD)   4/8-ch synchronous playback   Smart search for efficient playback   Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-7200HUHI-K/P SERIES TURBO HD DVR

Video Input and Transmission
 Self-adaptive normal camera and Hikvision PoC camera connection
 Up to 2-ch 6 MP IP cameras input
 5 MP/4 MP HDTVI video input and live view
 Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and
200m for PoC camera
 Automatic power supply management for PoC camera to guarantee safety
Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Connectable to H.265+/H.265/H.264+/H.264 IP cameras
 H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
 Full channel recording at up to 5 MP resolution
Video Output
 Simultaneous HDMI/VGA output
 HDMI output at up to 4K (3840 x 2160) resolution for DS-7208HUHI-K2/P
 Separate CVBS output
Storage and Playback
 One SATA interface for DS-7204HUHI-K1/P, and two SATA interfaces for DS-7208HUHI-K2/P (up to 8 TB capacity per HDD)
 4/8-ch synchronous playback
 Smart search for efficient playback
 Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
 VCA information overlay in live view and smart playback
 VQD (Video Quality Diagnostics)
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 1 RJ45 10M/100M self-adaptive Ethernet interface for DS-7204HUHI-K1/P, and 1 RJ45 10M/100M/1000M self-adaptive
Ethernet interface for DS-7208HUHI-K2/P
 Output bandwidth limit configurable
Features and Functions







Model DS-7204HUHI-K1/P DS-7208HUHI-K2/P
Video/Audio
input
Video
compression
H.265+/H.265/H.264+/H.264
Analog video
input
4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
PoC camera input
Supports Hikvision PoC camera
Note: Do not unplug or plug the PoC camera if it is powered by the external power supply.
IP video input
2-ch
Up to 6 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio
compression
G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI/VGA
output
1-ch, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
VGA: 1-ch, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560
x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Encoding
resolution 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback
4-ch 8-ch
Network
management
Remote
connections
128
Network
protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA 1 SATA interface 2 SATA interfaces
Capacity Up to 8 TB capacity for each disk
External interface
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface
1, RJ45 10M/100M self-adaptive Ethernet
interface
1, RJ45 10M/100M/1000M self-adaptive
Ethernet interface
USB interface 2 x USB 2.0
Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0
Serial interface RS-485 (half-duplex)
Alarm in/out 4/1 8/4
General
Power supply 48 VDC
Consumption
(without HDD) ≤ 40 W ≤ 60 W
Working
temperature
-10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch) 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inch)
Weight
(without HDD) ≤ 1.5 kg (3.3 lb) ≤ 2 kg (4.4 lb)
Specifications




Index Description Index Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 48 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface
DS-7204HUHI-K1/P, DS-7208HUHI-K2/P
Physical Interfaces
03050201070623

Available Models


The rear panel of DS-7208HUHI-K2/P provides 8 video input interfaces.
