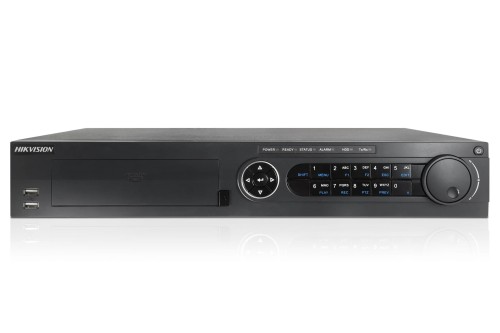

DS-7316HUHI-F4/N

DS-7300HUHI-F4/N SERIES TURBO HD DVR    Appearance Design   Typical chassis design to guarantee the low noise and environmental protection of the device   Front slot of DVD-R/W for more convenient installation and maintenance  Video Input and Transmission   Connectable to HDTVI, AHD and analog cameras   Up to 6/10/18-ch 8 MP IP cameras input for DS-7304/7308/7316HUHI-F4/N   Long distance transmission over UTP and coaxial cable  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduces data storage costs   Full channel recording at up to 3 MP resolution   Supports POS triggered recording and POS information overlay  Video Output   Simultaneous HDMI1 and VGA output at up to 1920 x 1080 resolution, and independent HDMI 2 output at up to 4K  (3840 x 2160) resolution   Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view  output only  Storage and Playback   Four SATA interfaces (up to 6 TB capacity per HDD)   Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme   4/8/16-ch synchronous playback   Smart search for efficient playback ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7300HUHI-F4/N SERIES TURBO HD DVR

Appearance Design
 Typical chassis design to guarantee the low noise and environmental protection of the device
 Front slot of DVD-R/W for more convenient installation and maintenance
Video Input and Transmission
 Connectable to HDTVI, AHD and analog cameras
 Up to 6/10/18-ch 8 MP IP cameras input for DS-7304/7308/7316HUHI-F4/N
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduces data storage costs
 Full channel recording at up to 3 MP resolution
 Supports POS triggered recording and POS information overlay
Video Output
 Simultaneous HDMI1 and VGA output at up to 1920 x 1080 resolution, and independent HDMI 2 output at up to 4K
(3840 x 2160) resolution
 Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view
output only
Storage and Playback
 Four SATA interfaces (up to 6 TB capacity per HDD)
 Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
 4/8/16-ch synchronous playback
 Smart search for efficient playback
 Supports playback by main stream, or sub-stream for IP cameras
 Supports the 3
rd
party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports line crossing detection and intrusion detection of all channels
 Supports people counting and heat map functions for 1-ch analog camera
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
 Two gigabit Ethernet network interfaces
 Output bandwidth limit configurable
Features and Functions







Model DS-7304HUHI-F4/N DS-7308HUHI-F4/N DS-7316HUHI-F4/N
Video/Audio input
Video
compression H.264+/H.264
Analog video
input
4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input 720p25, 720p30, 1080p25, 1080p30
CVBS input Support
IP video input
2-ch (up to 6-ch) 2-ch (up to 10-ch) 2-ch (up to 18-ch)
Up to 8 MP resolution
H.265/H.264+/H.264
Network
bandwidth 200 Mbps 260 Mbps
Audio
compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI1/VGA
output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI2
output
1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x 768/60Hz
Encoding
resolution 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
3 MP@15fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 2-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback
4-ch 8-ch 16-ch
Network
management
Remote
connections 128
Network
protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF,
SNMP
Hard disk
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 6 TB capacity for each disk
Disk array Array type RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
External interface
Two-way
audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Network
interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface Front panel: 2 x USB 2.0
Rear panel: 1 x USB 3.0
Serial
interface
RS-232, RS-485 (full-duplex), Keyboard
Alarm in/out 16/4
General
Power supply 100 to 240 VAC
Consumption
(without
HDD)
≤ 35 W ≤ 45 W ≤ 65 W
Working
temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working
humidity
10% to 90%
Dimensions
(W x D x H)
445 x 390 x 70 mm (17.5 x 15.4 x 2.8 inch)
Weight
(without
HDD)
≤ 5 kg (11.0 lb)
Specifications




Index Description Index Description
1 VIDEO IN 9
RS-485 Serial Interface, Keyboard Interface,
ALARM IN and ALARM OUT
2 VIDEO OUT 10 100 to 240 VAC Power Input
3 AUDIO IN, RCA Connector 11 Power Switch
4 USB Interface 12 GND
5 HDMI1/VGA Interface 13 LINE IN
6 HDMI2 Interface 14 eSATA Interface
7 CVBS AUDIO OUT and VGA AUDIO OUT 15 RS-232 Serial Interface
8 LAN1 and LAN2 Network Interfaces
DS-7304HUHI-F4/N, DS-7308HUHI-F4/N, DS-7316HUHI-F4/N
Physical Interfaces
03040801061014
Available Models

The rear panel of DS-7304/7308HUHI-F4/N provides 4/8 video input interfaces.
