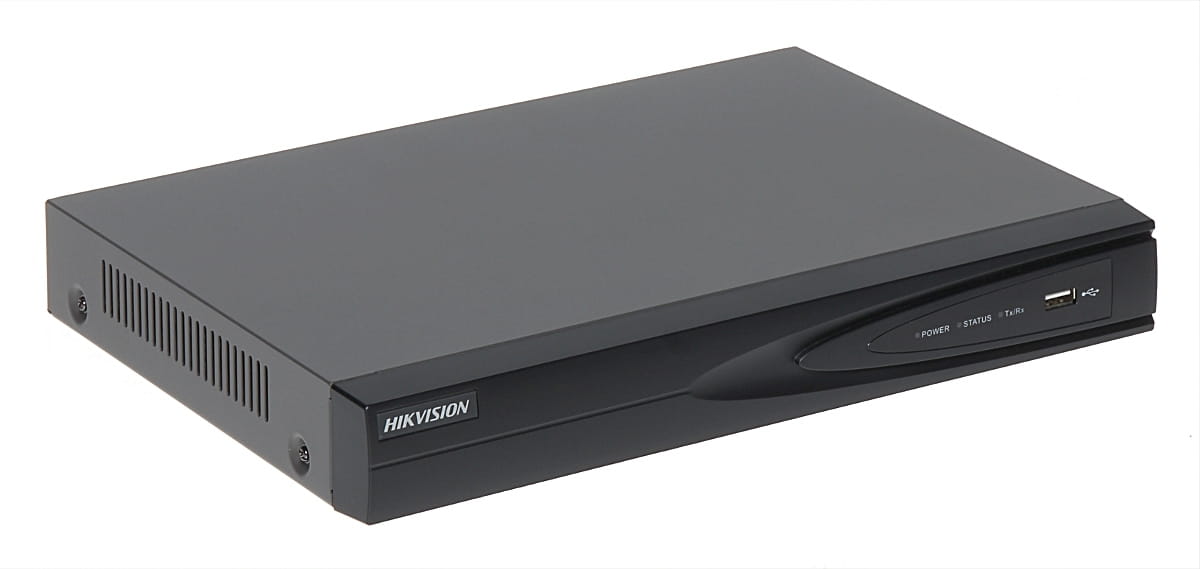

DS-7604NI-E1/4P/A

Verfügbarkeit: 0

Preis: $269.92 269.92

bez 23.00% VAT i kosztów dostawy

quantity szt.

product unavailable

zur Wunschliste hinzufügen

Anbieter:

Produkt-Code/SKU: 303601830

Stellen Sie Fragen zum Artikel oder ein Angebot

Beschreibung

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS -7604NI-E1/4P/A and
DS -7600NI-E2/8P (16P)/A series NVR
Introduction:
DS-7600NI-E1/4P/A and DS -7600NI-E2/8P (16P)/A series NVR (Network
Video Recorder) is a new generation recorder developed by Hikvision
independently. Combined with multiple advanced technologies, such as audio
and video decoding technology, embedded system technology, storage
technology, network technology and intelligent technology. It can both work
alone as a recorder and cooperate with other device to form a comprehensive
surveillance system.
The DS-7600NI-E1/4P/A and DS -7600NI-E2/8P (16P)/A series NVR are widely
applied in the areas of finance, public security, military, communication,
transportation, education, etc.
Available Models:
DS -7604NI-E1/4P/A, DS-7608NI-E2/8P/A;
DS -7616NI-E2/8P/A, DS -7616NI -E2/16P/A;
DS -7632NI-E2/8P, DS -7632NI -E2/16P.
Main Features:
 Connectable to the third -party network cameras like like ACTI, Arecont,
AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA,
SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
 4/8/16/32 network cameras can be connected for different models.
 Support live view, storage, and playback of the connected camera with up
to the resolution of 6 megapixels.
 Simultaneous HDMI and VGA outputs at up to 1920x1080 resolution.
 New GUI and support starting record with one key .
 Multiple recording types: manual, continuous, alarm, motion, motion |
alarm, motion & alarm .
 Realize instant playback for assigned channel during multi -channel
display mode.
 Customization of tags, searching , and playing back by tags.
 Playback by sub -periods.
 Locking and unlocking record files.
 Support HDD quota mode; different capacity can be assigned to different
channel.
 Up to 2 SATA hard disks can be connected with up to 4TB capacity for
each.
 1 self -adaptive 10M/100M/1000M network interface is provided.
 Up to 4/8/16 independent PoE network interfaces for different models.
 Support Hikvision DDNS (Dynamic Domain Name System) .
 Support network detection, including network delay, packet loss, etc.
 Support enabling H.264+ to ensure high video quality with lowered
bitrate.

Physical Interfaces:

The rear panel of DS-7616NI-E2/16P/A and DS-7632NI-E2/16P/A
provides 16 independent 100 Mbps PoE network interfaces.
Index Name
1 Power Supply
2 Audio In
3 HDMI Interface
4 LAN Network Interfac e
5 Audio Out
6 VGA Interface
7 USB Interface
8 Ground
9 Power Switch
10 Network Interfaces with PoE Function
11 Alarm I/O
Typical Connections:

NVR

Specifications:
Model DS -7604NI -E1/4P/A DS -7608NI-E2/8P/A
Video/Audio
input
IP video input 4-ch 8-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 40Mbps 80Mbps
Outgoing bandwidth 80Mbps
Remote connection 32 128
Video/Audio
output
Recording resolution 6MP/5MP/3MP/1080 P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame rate
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output
1-ch, resolution:
1920 x 1080 /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,
1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Decoding
Live view / Playback
resolution
6MP/5MP/3MP/1080 P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 4-ch@1080P 8-ch@720P, 6-ch@1080P
Hard disk
SATA 1 SATA interface for 1 HDD 2 SATA interfaces for 2 HDD s
Capacity Up to 4TB for each disk
External
interface
Network interface 1 RJ -45 10 /100 /1000 Mbps self-adaptive Ethernet interface
USB interface 1 x USB 2.0 and 1 x USB 3.0
Alarm in/out 4 / 1
PoE
Interface
4 independent 100 Mbps PoE network
interfaces
8 independent 100 Mbps PoE network
interfaces
Max. Power 50W 120W
Supported standard AF and AT
General
Power supply 48V DC 100~240V A C
Consumption
(without hard disk
and PoE)
≤10W
Working
temperature
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 1U chassis 19 -inch rack-mounted 1U chassis
Dimensions
(W x D x H)
315 x 230 x 45mm
(12.4"x9.1"x1.8")
445 x 290 x 45mm (17.5" x 11.4" x
1.8")
Weight
(without hard disk)
≤ 1 kg (2.2 lb)

Model DS -7616NI -E2/8P/A DS -7632NI -E2/8P DS -7616NI -E2/16P/A DS -7632NI -E2/16P
Video/Audio
input
IP video input 16 -ch 32 -ch 16 -ch 32 -ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 160Mbps
Outgoing bandwidth 80Mbps
Remote connection 128
Video/Audio
output
Recording resolution 6MP/5MP/3MP/1080 P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame rate
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output
1-ch, resolution:
1920 x 1080 /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Decoding
Live view / Playback
resolution
6MP/5MP/3MP/1080 P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 16 -ch@4CIF, 12-ch@720P, 6-ch@1080P
Hard disk
SATA 2 SATA interfaces for 2 HDD s
Capacity Up to 6TB for each disk
External
interface
Network interface 1 RJ -45 10 /100 /1000 Mbps self-adaptive Ethernet interface
USB interface 1 x USB 2.0 and 1 x USB 3.0
Alarm in/out 4 / 1 4 / 1
PoE
Interface 8 independent 100 Mbps PoE network interfaces 16 independent 100 Mbps PoE network interfaces
Max. Power 12 0W 20 0W
Supported standard AF and AT
General
Power supply 100~240V A C
Consumption
(without hard disk
and PoE)
≤10 W ≤15 W
Working
temperature
-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working humidity 10 % ~ 90 %
Chassis 380 chassis
Dimensions
(W x D x H)
380 x 290 x 48mm (15.0" x 11.4" x 1.9")
Weight
(without hard disk)
≤ 1 kg (2.2 lb)
