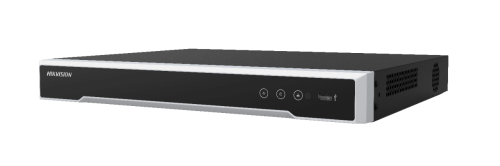

DS-7604NI-K1/4P(C)

DS-7600NI-K1/4P Series NVR  Professional and Reliable   Dual-OS design to ensure high reliability of system running   ANR technology to enhance the storage reliability when the network is disconnected  HD Input   H.265/H.264/H.264+ video formats   Connectable to the third-party network cameras   4 IP cameras can be connected   Recording at up to 8 MP resolution   Supports live view, storage, and playback of the connected camera at up to 8 MP resolution  HD Output   HDMI/VGA outputs provided   HDMI Video output at up to 4K (3840 x 2160) resolution  HD Storage   1 SATA interfaces connectable for recording and backup   Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format  HD Transmission   1 self-adaptive 10M/100Mbps network interface   4 independent PoE network interfaces are provided  Various Applications   Centralized management of IP cameras, including configuration, information import/export, real-time information  display, two-way audio, upgrade, etc.   Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can  be realized   VCA detection alarm is supported   Instant playba...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7600NI-K1/4P Series NVR
Professional and Reliable
 Dual-OS design to ensure high reliability of system running
 ANR technology to enhance the storage reliability when the network is disconnected
HD Input
 H.265/H.264/H.264+ video formats
 Connectable to the third-party network cameras
 4 IP cameras can be connected
 Recording at up to 8 MP resolution
 Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
 HDMI/VGA outputs provided
 HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
 1 SATA interfaces connectable for recording and backup
 Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
 1 self-adaptive 10M/100Mbps network interface
 4 independent PoE network interfaces are provided
Various Applications
 Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
 Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
 VCA detection alarm is supported
 Instant playback for assigned channel during multi-channel display mode
 Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Features and Functions






Model DS-7604NI-K1/4P
Video/
Audio input
IP video input 4-ch
Incoming bandwidth 40 Mbps
Outgoing bandwidth 80 Mbps
Video/
Audio output
HDMI/VGA output
resolution
HDMI:
4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz,
1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA:
1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.264/H.264+
Recording resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI
F/CIF/QCIF
Synchronous playback 4-ch
Capability 4-ch @ 1080p
Hard disk
SATA 1 SATA interface for 1HDD
Capacity Up to 6TB capacity for each disk
Network
management
Network protocols
TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS,
iSCSI, UPnP™, HTTPS
External interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network interface 1 RJ-45 100 Mbps full-duplex Ethernet interface
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
POE Interface
Interface 4 RJ-45 100 Mbps full-duplex Ethernet interfaces
Power ≤ 40 W
Supported standard IEEE 802.3 af/at
General
Power supply 48 VDC
Power ≤ 65 W
Consumption
(without hard disk)
≤ 10 W (without enabling PoE)
Working temperature -10 to +55° C (14 to 131° F)
Working humidity 10 to 90 %
Chassis 1U chassis
Dimensions
(W x D x H)
315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight
(without hard disk)
≤ 1 kg (2.2 lb)
Specifications








Index Description Index Description
1 Network Interfaces with PoE function 6 LAN Network Interface
2 AUDIO IN 7 USB 2.0 Interface.
3 AUDIO OUT 8 48VDC power supply
4 VGA Interface 9 Power Switch
5 HDMI Interface 10 GND
DS-7604NI-K1/4P

Physical Interfaces
030307151106
Available Models
030406160511
