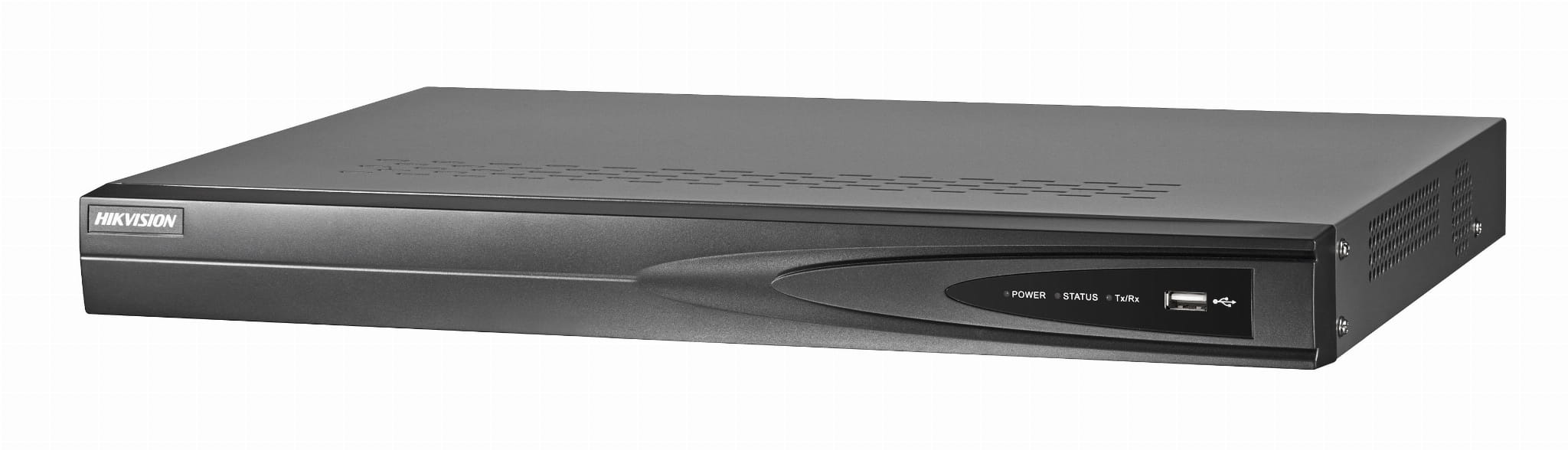

DS-7604NI-Q1

Verfügbarkeit: 0
Preis: 135,28 € 135.28
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 303606413

Beschreibung

DS-7600NI-Q1 SERIES NVR  HD Input   H.265+/H.265/H.264/H.264+ video formats   Connectable to the third-party network cameras   Up to 16 IP cameras can be connected   Recording at up to 8 MP resolution   Supports live view, storage, and playback of the connected camera at up to 8 MP resolution  HD Output   HDMI/VGA simultaneous output (DS-7604NI-Q1)   HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)   HDMI Video output at up to 4K (3840 x 2160) resolution  HD Storage   1 SATA interface connectable for recording and backup   H.265+ compression effectively reduces the storage space and costs by up to 75%  HD Transmission   1 self-adaptive 10/100/1000 Mbps network interface  Various Applications   Centralized management of IP cameras, including configuration, information import/export, real-time information  display, two-way audio, upgrade, etc.   Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be  realized   VCA detection alarm is supported   Instant playback for assigned channel during multi-channel display mode   Smart search for the selected area in the video; and smart playback to i...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

DS-7600NI-Q1 SERIES NVR
HD Input
 H.265+/H.265/H.264/H.264+ video formats
 Connectable to the third-party network cameras
 Up to 16 IP cameras can be connected
 Recording at up to 8 MP resolution
 Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
 HDMI/VGA simultaneous output (DS-7604NI-Q1)
 HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)
 HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
 1 SATA interface connectable for recording and backup
 H.265+ compression effectively reduces the storage space and costs by up to 75%
HD Transmission
 1 self-adaptive 10/100/1000 Mbps network interface
Various Applications
 Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
 Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized
 VCA detection alarm is supported
 Instant playback for assigned channel during multi-channel display mode
 Smart search for the selected area in the video; and smart playback to improve the playback efficiency
 Hik-Connect for easy network management

Features and Functions






Model DS-7604NI-Q1 DS-7608NI-Q1 DS-7616NI-Q1
Video/Audio
input
IP video input
4-ch 8-ch 16-ch
Up to 8 MP resolution
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth 40 Mbps 80 Mbps 160 Mbps
Outgoing bandwidth 80 Mbps
Video/Audio
output
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
HDMI output
resolution
1-ch, 4K (3840 x 2160)/30Hz,
1920 x 1080p/60Hz, 1600 x
1200/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz;
HDMI/VGA simultaneous
output
1-ch, 4K (3840 x 2160)/30Hz, 1920 x
1080p/60Hz, 1600 x 1200/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
VGA output
resolution
1920 x 1080p/60Hz, 1600 x
1200/60Hz, 1280 x 1024/60Hz,
1280 x 720/60Hz, 1024 x
768/60Hz; HDMI/VGA
simultaneous output
1-ch, 1920 x 1080p/60Hz, 1280 x
1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback
resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous
playback 4-ch 8-ch 16-ch
Capability 1-ch @ 8 MP / 4-ch @ 1080p
Network
management Network protocols
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
UPnP™, HTTPS
Hard disk
SATA 1 SATA interface
Capacity Up to 6TB capacity for each disk
External
interface
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface 2 x USB 2.0
General
Power supply 12 VDC
Power ≤ 18W
Consumption
(without hard disk)
≤ 10 W
Working
temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 to 90 %
Chassis 1U chassis
Dimensions
(W x D x H)
315 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight(without hard
disk) ≤ 1 kg (2.2 lb)
Specifications







Index Description Index Description
1 Power Supply 6 VGA Interface
2 Audio In 7 USB Interface
3 HDMI Interface 8 Ground
4 LAN Network Interface 9 Power Switch
5 Audio Out
DS-7604NI-Q1, DS-7608NI-Q1, DS-7616NI-Q1

Physical Interfaces
030402160113
Available Models
030492170314

030496170830
