DS-7608NI-E2/8P/A/2TB

DS-7608NI-E2/8P/A    The DS-7608NI-E2/8P/A is Hikvisions latest edition to the fantastically popular DS-76 range of NVRs, this updated version for 2015 has  all the great features of the original DS-76 series NVR but now supports PoE+ devices with a total of 120W available via its 8 built-in PoE  plug and play ports. The series now sports a new updated record rate allowing for up to 200Mbts recording (DS-7632NI/E2) and lastly  now has 4CIF live view and 8 channel playback.  FEATURES:  ŸThird-party network cameras supported  ŸUp to 5 Megapixels resolution recording  ŸHDMI and VGA output at up to 1920x1080P   resolution  Ÿ8-ch network cameras can be connected with   80mbps incoming bandwidth  ŸUp to 2 SATA interfaces  ŸPlug & Play with up to 8 independent PoE network   interfaces  ŸSupport network detection, including network delay,   packet loss, etc  Ÿ4 alarm inputs, 1 alarm outputs  Dimensions Unit: mm (inch)  VIDEO / AUDIO INPUT  IP Video Input 8-ch  Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)  Incoming Bandwidth 80Mbps  Outgoing Bandwidth 80Mbps  Remote Connection 128  VIDEO/ AUDIO OUTPUT  Recording Resolution 5MP/4MP/3MP/10...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7608NI-E2/8P/A

The DS-7608NI-E2/8P/A is Hikvisions latest edition to the fantastically popular DS-76 range of NVRs, this updated version for 2015 has
all the great features of the original DS-76 series NVR but now supports PoE+ devices with a total of 120W available via its 8 built-in PoE
plug and play ports. The series now sports a new updated record rate allowing for up to 200Mbts recording (DS-7632NI/E2) and lastly
now has 4CIF live view and 8 channel playback.
FEATURES:
ŸThird-party network cameras supported
ŸUp to 5 Megapixels resolution recording
ŸHDMI and VGA output at up to 1920x1080P
resolution
Ÿ8-ch network cameras can be connected with
80mbps incoming bandwidth
ŸUp to 2 SATA interfaces
ŸPlug & Play with up to 8 independent PoE network
interfaces
ŸSupport network detection, including network delay,
packet loss, etc
Ÿ4 alarm inputs, 1 alarm outputs
Dimensions Unit: mm (inch)
VIDEO / AUDIO INPUT
IP Video Input 8-ch
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 80Mbps
Remote Connection 128
VIDEO/ AUDIO OUTPUT
Recording Resolution 5MP/4MP/3MP/1080P/UXGA/720P/VGA/
4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate Main Stream: 50fps
Sub Stream: 50fps
HDMI / VGA Output 1-ch resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024
/60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio Output 1-ch, RCA (Linear, 1kΩ)
Playback Resolution 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF
/ 2CIF / CIF / QCIF
DECODINGLive View/ Pla
yback Res 5MP/4MP/3MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 8-ch@720P 16ch@4CIF, 12ch@720P, 6ch@1080P
6ch@1080P
HARD DISKSA
TA 2 SATA interface for 2 HDDs
Capacity Up to 4TB capacity for each disk
EXTERNAL INTERFACE
Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet
interface
USB interface 1 x USB 2.0 and 1 x USB 3.0
Alarm in/out 4/1
POE
Interface 8 independent 100Mbps PoE network interface
Max Power 120W
Supported Standard AF and AT
GENERALPower Supply
220V DC
Consumption ≤ 10W (without hard disk and PoE)
Working Temperature -10°C ~ +55°C
Working Humidity 10% ~ 90%
Chassis 1U chassis
Dimensions (WxHxD) 445 x 45 x 290mm (17.5" x 1.8" x 11.4")
Weight ≤ 1 Kg (without hard disk)
Max 8TB
HDD
1chAudio NetworkSoftwareWeb UseMousePTZ Use
1080P
Hi Res
H.265
Codec
5MP
RecordingPoE+Backup
USB
Network
80Mbs
RecordingAlarms
SHIFTMENU
F1F2ESCEDIT
PLAYRECPTZPREVA

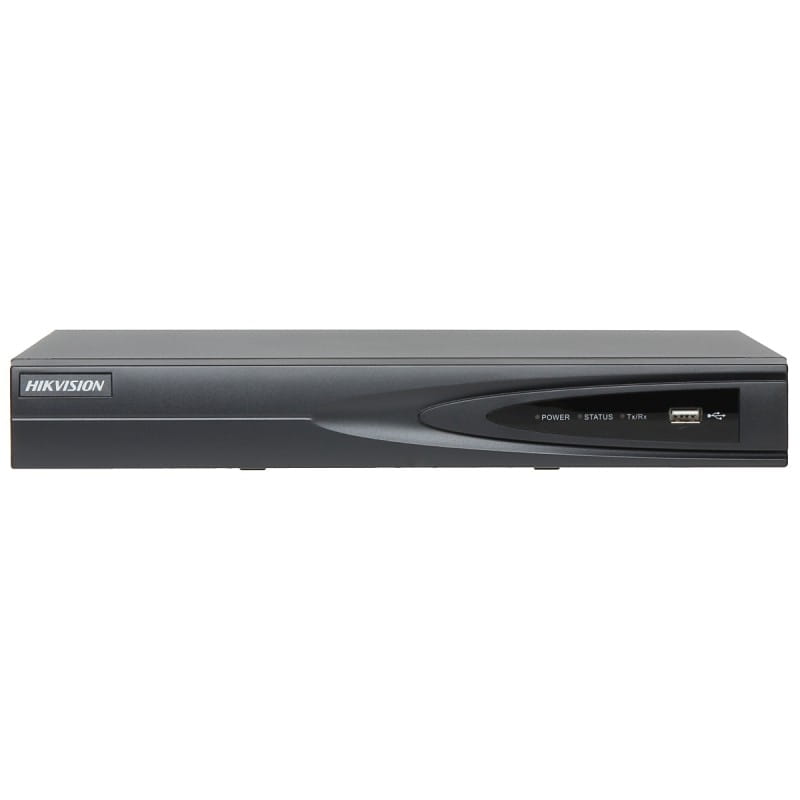

POWERREADYSTATUSALARMHDDTx/Rx
2ABC13DEF4GHI5JKL
9WXYZ8TUV7PQRS6MNO0
HIKVISION
445(17.5")

290 (11.4")
45(1.8")
8CH

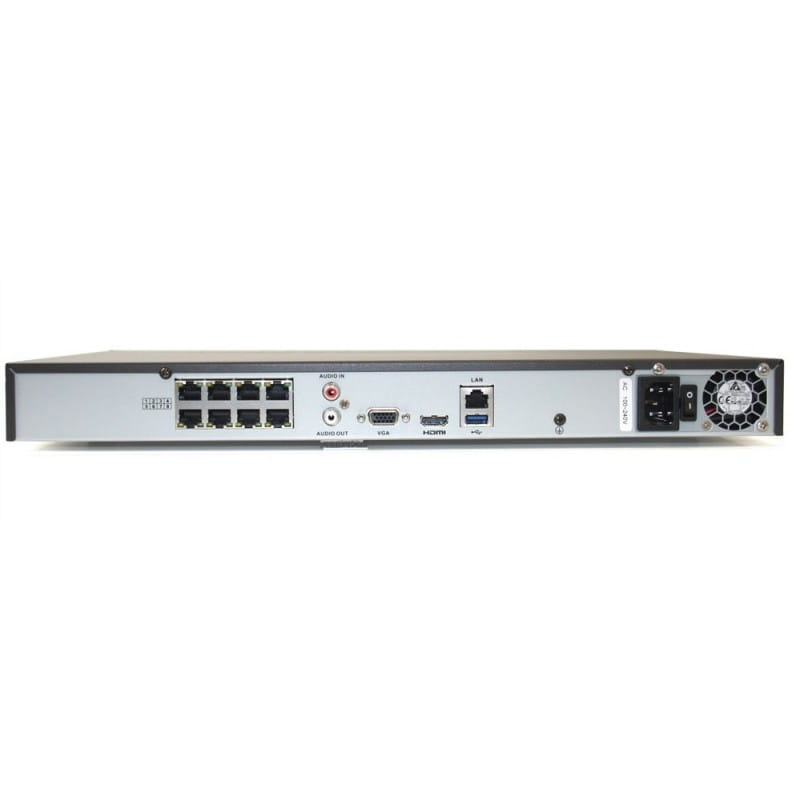

AUDIO OUTVGAHDMI

AUDIO IN
1234
8765

AUDIO OUTVGAHDMI

AUDIO IN
1234
8765
DS-7608NI-E2/8P/A
