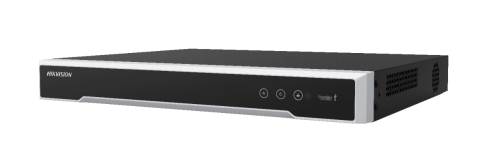

DS-7608NI-K1(C)/alarm

Verfügbarkeit: 0
Preis: 213,67 € 213.67
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 303613668

Beschreibung

Key Feature   Up to 8-ch IP camera inputs   H.265+/H.265/H.264+/H.264 video formats   Up to 1-ch@8 MP/5-ch@1080p decoding capacity   Up to 80 Mbps incoming bandwidth          Professional and Reliability   H.265+ compression effectively reduces the storage space by up to 75%  HD Video Output   Provide simultaneous HDMI and VGA outputs   HDMI video output at up to 4K resolution  Storage and Playback   1 SATA interface for HDD connection (up to 8 TB capacity per HDD)   Smart search/smart playback to improve the playback efficiency  Smart Function   Support multiple VCA (Video Content Analytics) events   Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and  people counting  Network & Ethernet Access   8 independent PoE network interfaces   1 self-adaptive 10/100/1000 Mbps Ethernet interface   Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management      DS-7608NI-K1/8P NVR          Specification  Model DS-7608NI-K1/8P  Video and Audio  IP video input  8-ch  Up to 8 MP resolution  Incoming bandwidth 80 Mbps  Outgoing ba...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Key Feature
 Up to 8-ch IP camera inputs
 H.265+/H.265/H.264+/H.264 video formats
 Up to 1-ch@8 MP/5-ch@1080p decoding capacity
 Up to 80 Mbps incoming bandwidth




Professional and Reliability
 H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
 Provide simultaneous HDMI and VGA outputs
 HDMI video output at up to 4K resolution
Storage and Playback
 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
 Smart search/smart playback to improve the playback efficiency
Smart Function
 Support multiple VCA (Video Content Analytics) events
 Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting
Network & Ethernet Access
 8 independent PoE network interfaces
 1 self-adaptive 10/100/1000 Mbps Ethernet interface
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management


DS-7608NI-K1/8P NVR




Specification
Model DS-7608NI-K1/8P
Video and Audio
IP video input
8-ch
Up to 8 MP resolution
Incoming bandwidth 80 Mbps
Outgoing bandwidth 80 Mbps
HDMI output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video output mode HDMI/VGA simultaneous output
CVBS output N/A
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format H.265+/H.265/H.264+/H.264
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type Video, Video & Audio
Audio compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection 64
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI,
ISUP, UPnP™, HTTP, HTTPS
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 75 W
Supported standard IEEE 802.3 af/at
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 8 TB capacity for each disk
Alarm in/out N/A (4/1 is optional)
USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
General
Power supply 48 VDC, 1.88 A
Consumption
(without HDD and PoE off)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 320 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
Certification





Dimension




FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017




Physical Interface

No. Description No. Description
1 PoE Interfaces 6 VGA Output (DB9 Connector)
2 LAN Interface 7 USB Interface
3 AUDIO OUT 8 Power Supply
4 AUDIO IN 9 Power Switch
5 HDMI Interface 10 GND
Available Model
DS-7608NI-K1/8P



04302102010708
