DS-7716NI-E4

www.hikvision.com    DS-7716/32NI-E4(-E4/16P)  Embedded NVR  t Third-party network cameras supported  t Up to 6 Megapixels resolution recording  t HDMI and VGA output at up to 1920x1080P  resolution  t 16/32-ch network cameras can be connected with  160M incoming bandwidth  t 4 SATA interfaces  t Plug & Play with 16 independent PoE network  interfaces  t Support network detection, including network delay,  packet loss, etc  DS-7716NI-E4  DS-7732NI-E4  DS-7716NI-E4/16P  DS-7732NI-E4/16P    DS-7716NI-E4  DS-7716NI-E4/16P  DS-7732NI-E4  DS-7732NI-E4/16P  Video/Audio input  IP video input16-ch32-ch  Two-way audio input1-ch, RCA (2.0 Vp-p, 1k)  Network  Incoming bandwidth160Mbps160Mbps  Outgoing bandwidth80Mbps  Remote connection128  Video/Audio output  Recording resolution6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF  Frame rate  Main stream: 50 fps (P) / 60 fps (N)  Sub-stream: 50 fps (P) / 60 fps (N)  HDMI/VGA output  1-ch, resolution:  1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x768 /60Hz  Audio output1-ch, RCA (Linear, 1k)  Decoding  Live view / Playback  resolution  6MP/5MP/3MP/1080p/UXGA/720p/VGA/...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

www.hikvision.com

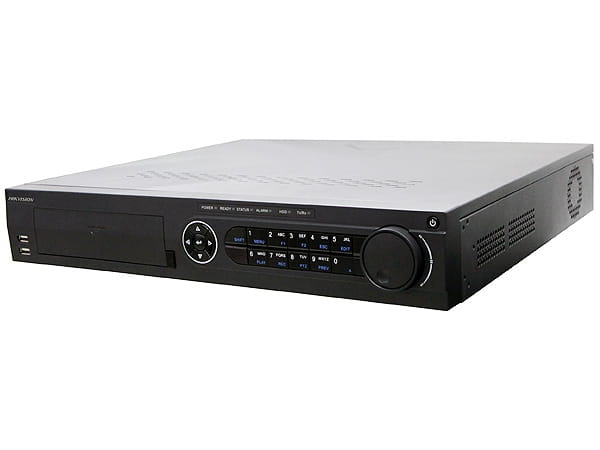

DS-7716/32NI-E4(-E4/16P)
Embedded NVR
t Third-party network cameras supported
t Up to 6 Megapixels resolution recording
t HDMI and VGA output at up to 1920x1080P
resolution
t 16/32-ch network cameras can be connected with
160M incoming bandwidth
t 4 SATA interfaces
t Plug & Play with 16 independent PoE network
interfaces
t Support network detection, including network delay,
packet loss, etc
DS-7716NI-E4
DS-7732NI-E4
DS-7716NI-E4/16P
DS-7732NI-E4/16P

DS-7716NI-E4
DS-7716NI-E4/16P
DS-7732NI-E4
DS-7732NI-E4/16P
Video/Audio input
IP video input16-ch32-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth160Mbps160Mbps
Outgoing bandwidth80Mbps
Remote connection128
Video/Audio output
Recording resolution6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame rate
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output
1-ch, resolution:
1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x768 /60Hz
Audio output1-ch, RCA (Linear, 1k)
Decoding
Live view / Playback
resolution
6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability
16-ch@4CIF, 12-ch@720P,
6-ch@1080P
16-ch@4CIF, 12-ch@720P,
6-ch@1080P
Hard disk
SATA4 SATA interfaces for 2 HDDs + 1 DVD-R/W zdefault), or 4HDDs
eSATA (Optional) 1 eSATA interface
CapacityUp to 6TB capacity for each HDD
External interface
Network interface2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces (1 for /P model)
Serial interfaceRS-232 and RS-485
USB interface2 x USB 2.0 + 1 x USB 3.0
Alarm in/out(Optional)16 / 4 (optionally can be expanded to 16 / 8)
Others
Power supply100 ~ 240 VAC
Consumption(without
hard disk)
20W
Working temperature-10 ºC ~ +55 ºC z+14 ºzF~ + 131 ºzF)
Working humidity10 % ~ 90 %
Chassis19-inch rack-mounted 1.5U chassis
Dimensions(W x D x
H)
445 x 390 x70 mm ( 17.5px 15.3p x 2.8p)
Weight(without hard
disk)
4 Kg (8.82 lb)

Key features
Rear Panel of DS-7700NI-E4(-E4/16P)
Available models

LAN1 and LAN2 Network Interfaces
AUDIO OUT
AUDIO IN
HDMI Interface
USB 3.0 Interface
RS-232 Serial Interface
VGA Interface
RS-485 Serial Interface
ALARM IN and ALARM OUT
GND
100~240VAC Power Input
Power Switch
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

Speed Dome
Dome Cameras
Box CamerasDIS Cameras

INPUT
Remote ControlUSB Mouse
Door Contact
Alarm
MicrophoneUSB Device
VGA / HDMISpeaker
Cell Phone
Router
PC Client
OUTPUT
control
ACCESSIES

DS-7700NI-E4(-E4/P)
