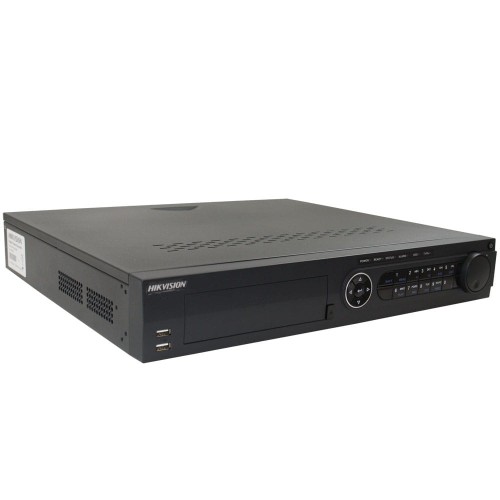

DS-7716NI-E4/16P

DS-7700NI-E4/P Series NVR  Available Models    DS-7708NI-E4/8P, DS-7716NI-E4/16P and DS-7732NI-E4/16P          Key Features     Connectable to the third-party network cameras like ACTI, Arecont, AXIS,  Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG,  SANYO, SONY, Vivotek and ZAVIO   Up to 32 network cameras can be connected   Support live view, storage, and playback of the connected camera at up to  6 megapixels resolution   Simultaneous HDMI and VGA at 1920 x 1080 resolution   New GUI and support starting record with one key   Redundant recording, holiday recording and capture schedule  configuration   Realize instant playback for assigned channel during multi-channel display  mode   Up to 16-ch synchronous playback at 4CIF resolution   Smart search for the selected area in the video   Customization of tags, searching, and playing back by tags   Locking and unlocking record files   Support HDD quota and group modes; different capacity can be assigned  to different channel   Up to 4 SATA hard disks and 1 eSATA disk (optional) can be connected, for  both recording and backup   1 self-adaptive 10M/100M/1000M network inter...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7700NI-E4/P Series NVR
Available Models

DS-7708NI-E4/8P, DS-7716NI-E4/16P and DS-7732NI-E4/16P




Key Features

 Connectable to the third-party network cameras like ACTI, Arecont, AXIS,
Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG,
SANYO, SONY, Vivotek and ZAVIO
 Up to 32 network cameras can be connected
 Support live view, storage, and playback of the connected camera at up to
6 megapixels resolution
 Simultaneous HDMI and VGA at 1920 x 1080 resolution
 New GUI and support starting record with one key
 Redundant recording, holiday recording and capture schedule
configuration
 Realize instant playback for assigned channel during multi-channel display
mode
 Up to 16-ch synchronous playback at 4CIF resolution
 Smart search for the selected area in the video
 Customization of tags, searching, and playing back by tags
 Locking and unlocking record files
 Support HDD quota and group modes; different capacity can be assigned
to different channel
 Up to 4 SATA hard disks and 1 eSATA disk (optional) can be connected, for
both recording and backup
 1 self-adaptive 10M/100M/1000M network interface
 Up to 16 independent PoE network interfaces are provided
 Support Hikvision DDNS (Dynamic Domain Name System)
 Support network detection, including network delay, packet loss, etc.
 Support VCA alarm for up to 16 VCA detections
 Support 5 VCA search types: behavior search, face search, people
counting, heat map and plate search
 Support enabling H.264+ to ensure high video quality with lowered bitrate
Physical Interfaces

Index Name
1 LAN Network Interface
2 AUDIO OUT
3 AUDIO IN
4 HDMI Interface
5 USB 3.0 Interface
6 RS-232 Serial Interface
7 VGA Interface
8 RS-485 Serial Interface
9 ALARM IN and ALARM OUT
10 GND
11 100~240VAC Power Input
12 Power Switch
13 Network Interfaces with PoE Function








Model DS-7708NI-E4/8P DS-7716NI-E4/16P DS-7732NI-E4/16P
Video/Audio
input
IP video input 8-ch 16-ch 32-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1KΩ)
Network
Incoming bandwidth 80Mbps 160Mbps 160Mbps
Outgoing bandwidth 80Mbps
Remote connection 128
Video/Audio
output
Recording resolution 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame rate
Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
HDMI/VGA output
1-ch, resolution:
1920 x 1080 /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720
/60Hz, 1024 x 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Decoding
Live view / Playback
resolution
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability
8-ch@720P,
6-ch@1080P
16-ch@4CIF, 12-ch@720P, 6-ch@1080P
Hard disk
SATA 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA (Optional) 1 eSATA interface
Capacity Up to 6TB capacity for each HDD
External
interface
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Serial interface RS-232 and RS-485
USB interface 2 x USB 2.0 + 1 x USB 3.0
Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8)
PoE
Interface
8 independent 100 Mbps
PoE network interfaces
16 independent 100 Mbps PoE network
interfaces
Max. Power 200W
Supported standard AF and AT
Others
Power supply 100 ~ 240 VAC
Consumption
(without hard disk,
DVD-R/W or PoE)
≤ 20 W
Working temperature -10ºC ~ + 55ºC (14ºF ~ 131ºF)
Working humidity 10 % ~ 90 %
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions
(W x D x H)
445 x 390 x70 mm ( 17.5"x 15.3" x 2.8")
Weight
(without hard disk or
DVD-R/W)
≤ 4 kg (8.82 lb)
DS-7700NI-E4/P Series NVR
Specifications
