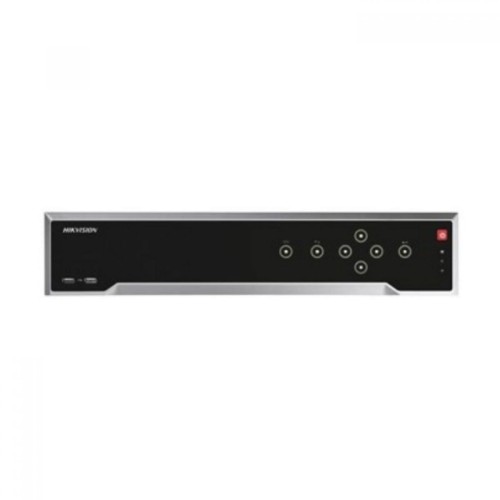

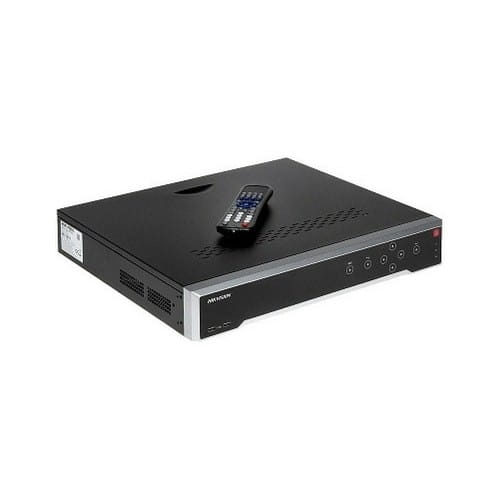

DS-7716NI-K4

DS-7700NI-K4 Series NVR  Professional and Reliable   Dual-OS design to ensure high reliability of system running   ANR technology to enhance the storage reliability when the network is disconnected  HD Input   H.265/H.264/MPEG4 video formats   Connectable to the third-party network cameras   Up to 32 IP cameras can be connected   Recording at up to 8 MP resolution   Supports live view, storage, and playback of the connected camera at up to 8 MP resolution  HD Output   HDMI and VGA independent outputs provided   HDMI Video output at up to 4K (3840 x 2160) resolution  HD Storage   Up to 4 SATA interfaces connectable for recording and backup   Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format  HD Transmission   2 self-adaptive 10M/100M/1000M network interfaces  Various Applications   Centralized management of IP cameras, including configuration, information import/export, real-time information  display, two-way audio, upgrade, etc.   Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can  be realized   VCA detection alarm is supported   Instant playback for assigned channel duri...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-7700NI-K4 Series NVR
Professional and Reliable
 Dual-OS design to ensure high reliability of system running
 ANR technology to enhance the storage reliability when the network is disconnected
HD Input
 H.265/H.264/MPEG4 video formats
 Connectable to the third-party network cameras
 Up to 32 IP cameras can be connected
 Recording at up to 8 MP resolution
 Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
 HDMI and VGA independent outputs provided
 HDMI Video output at up to 4K (3840 x 2160) resolution
HD Storage
 Up to 4 SATA interfaces connectable for recording and backup
 Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
 2 self-adaptive 10M/100M/1000M network interfaces
Various Applications
 Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
 Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
 VCA detection alarm is supported
 Instant playback for assigned channel during multi-channel display mode
 Smart search for the selected area in the video; and smart playback to improve the playback efficiency
 Supports HDD quota and group modes; different capacity can be assigned to different channels.
Features and Functions








Model DS-7716NI-K4 DS-7732NI-K4
Video/
Audio input
IP video input 16-ch 32-ch
Incoming
bandwidth
160 Mbps 256 Mbps
Outgoing
bandwidth
160 Mbps
Video/
Audio output
HDMI output
resolution
4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz,
1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
VGA output
resolution
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x
768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding format H.265/H.264/MPEG4
Recording
resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF
/QCIF
Synchronous
playback
16-ch 16-ch
Capability 2-ch @ 4K, or 8-ch @ 1080p
Hard disk
SATA 4 SATA interfaces for 4HDDs
Capacity 500GB/1TB/2TB/3TB/4TB/5TB/6TB
External
interface
Two-way audio 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial interface 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
USB interface Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm in/out 16/4
General
Power supply 100 to 240 VAC
Power ≤ 80 W
Consumption
(without hard disk)
≤ 20 W
Working
temperature
-10 to +55ºC (14 to 131ºF)
Working humidity 10 to 90 %
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions
(W x D x H)
445 x 390 x70 mm ( 17.5"x 15.3" x 2.8")
Weight
(without hard disk)
≤ 5 kg (11 lb)
Specifications




Index Description Index Description
1 LAN1 and LAN2 Network Interfaces 7 VGA Interface
2 AUDIO OUT 8 RS-485 Serial Interface
3 AUDIO IN 9 ALARM IN and ALARM OUT
4 HDMI Interface 10 GND
5 USB 3.0 Interface 11 100 to 240 VAC Power Input
6 RS-232 Serial Interface 12 Power Switch
DS-7716NI-K4, DS-7732NI-K4.
Physical Interfaces
030307151120
