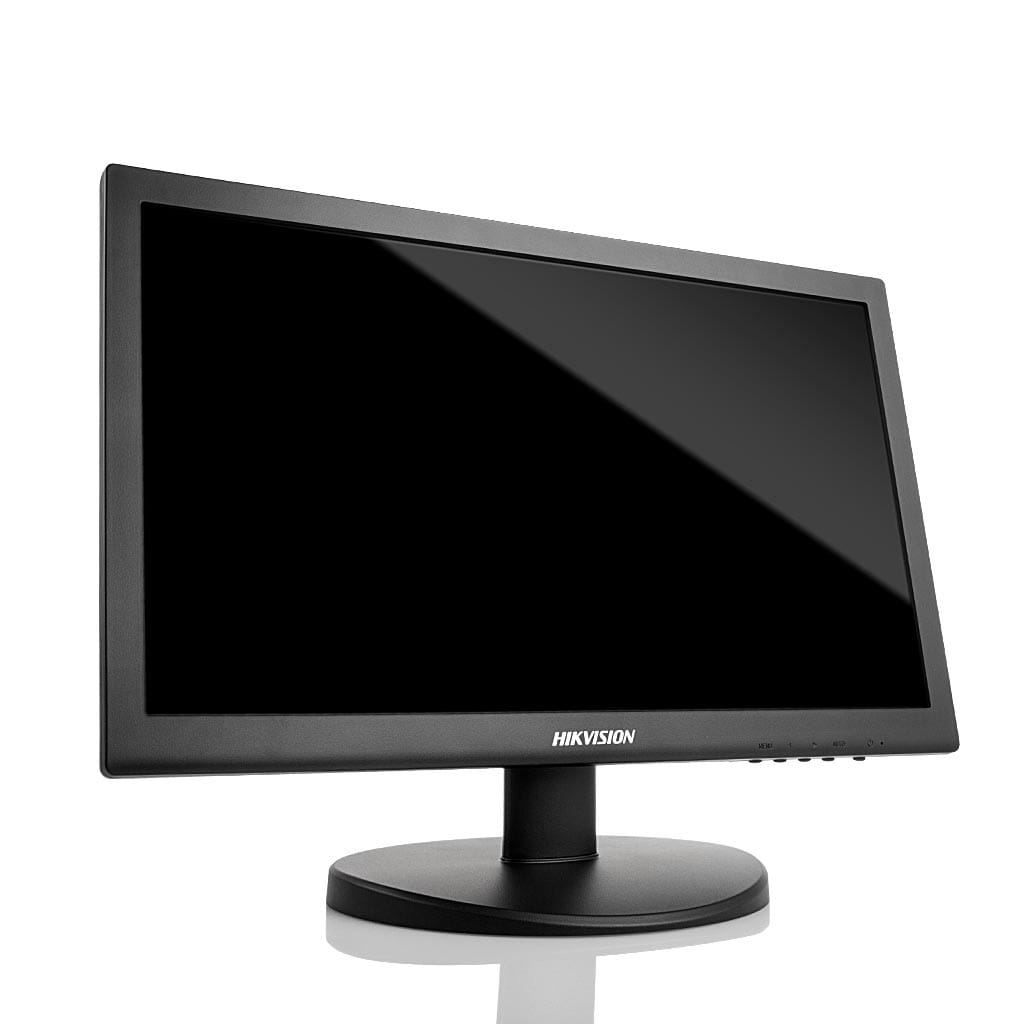

DS-D5021FC

key Features  •Support 8 bits/10 bits 2-ch LVDS(1920x1080) HD display;  •Support 170° wide viewing angle;  •Adopt 3D digital comb filter;  •True color OSD and user-friendly operation menu;  •Support 16:9 or 4:3 aspect ratio selectable in OSD menu;  •Built-in speaker and audio amplifier;  •1 channel HDMI 1.3 input interface and support HDCP 1.2;  •Adopt 3D noise reduction technology;  •Programmable 12 bits RGB gamma correction technology;  •Support software spread-spectrum technology to reduce  EMI radiation;  •Adopt Mstar ACE-5 auto color and image enhancement  engine, improve image contrast, detail and edge;  •Professional for Video Surveillance application: HDMI, VGA  and BNC signal input;    Model:  DS-D5021FC    Physical Interface  DS-D5021FC  21” LCD Monitor    NO. Description  1  Source button, show all signal input  channel  2 Upward button, move cursor up  3 Downward button, move cursor down  4  Menu button, as a confirm button  when setting parameters in the menu  5 Power on/off button  6 HDMI input interface  7 VGA input interface  8 Audio input interface  9 BNC input interface      DS-D5021FC  21” LCD...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

key Features
•Support 8 bits/10 bits 2-ch LVDS(1920x1080) HD display;
•Support 170° wide viewing angle;
•Adopt 3D digital comb filter;
•True color OSD and user-friendly operation menu;
•Support 16:9 or 4:3 aspect ratio selectable in OSD menu;
•Built-in speaker and audio amplifier;
•1 channel HDMI 1.3 input interface and support HDCP 1.2;
•Adopt 3D noise reduction technology;
•Programmable 12 bits RGB gamma correction technology;
•Support software spread-spectrum technology to reduce
EMI radiation;
•Adopt Mstar ACE-5 auto color and image enhancement
engine, improve image contrast, detail and edge;
•Professional for Video Surveillance application: HDMI, VGA
and BNC signal input;

Model:
DS-D5021FC

Physical Interface
DS-D5021FC
21” LCD Monitor

NO. Description
1
Source button, show all signal input
channel
2 Upward button, move cursor up
3 Downward button, move cursor down
4
Menu button, as a confirm button
when setting parameters in the menu
5 Power on/off button
6 HDMI input interface
7 VGA input interface
8 Audio input interface
9 BNC input interface


DS-D5021FC
21” LCD Monitor
Model DS-D5021FC
Display Type TFT-LED Backlight
Screen Size 21”
Dot Pitch (HxV) 0.2385mmx0.2385mm (0.009”x0.009”)
Max Resolution 1920x1080
Input Resolution
1920x1080; 1680x1050; 1600x900; 1400x900; 1360x768;
1280x1024; 1024x768; 800x600; 640x480; 720x400
Brightness 200cd/㎡
Contrast 600:1
Response Time 3.5ms
Color 16.7M
Viewable Area (HxV) 457.9mmx257.58mm (18.03”x10.14”)
Viewing Angle Horizontal 170°, Vertical 160°
Interfaces
HDMI Input 1
VGA Input 1
BNC Input 1
Audio Input 1 , 3.5 mm mini-jack
Power Supply 100 ~ 240V AC
Consumption < 30W
Operation Temperature 0°C ~ 40°C (32°F ~ 104°F )
Operating Humidity 10%~85% (No Condensation)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F )
Bezel Material Plastic
Bezel Color Black
Dimension (WxHxD) 491.55mmx301.12mmx53.54mm (19.35”x11.86”x2.11”)


DS-D5021FC
21” LCD Monitor

Dimension
