DS-D5022FN-C

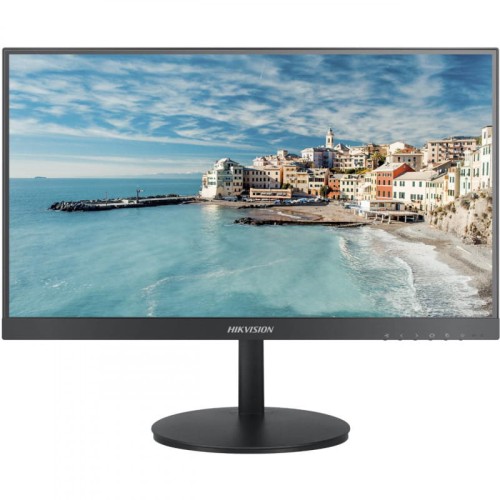

22-inch Monitor







 Ultra-thin device body with ultra-thin border for 3 sides.


 2 channels of 8 bit/10 bit LVDS HD (1920*1080) display.


 178° ultra-wide view screen.


 3D noise reduction.


 Low blue light design for eye care.


 Dual interface of HDMI and VGA.


 Support VESA wall mount.








 Specification
Model DS-D5022FN-C
Display
Screen Size 21.5”
Active Display Area 478.656 (H) mm x 260.28 (V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.0831 (H) mm x 0.241 (V) mm
Brightness 250 cd/㎡
Viewing Angle 178°/178°
Color Depth 8 bit
Contrast Ratio 3000 : 1
Response Time 6.5 ms（typ）
Refresh Rate 60 Hz
Haze 25 %
Reliability 7 x 16 H
Color Gamut 72%
Interface
Video ＆ Audio
Input
HDMI 1.4 x 1, VGA x 1, Audio In x 1
Power
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption ≤ 22 W
Standby
Consumption
≤ 0.5 W
Working
Environment
Working
Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity 20% to 90% RH (Non-Condensing)
Storage
Temperature
-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 75 mm x 75 mm, 4-M6 x 6 screw holes
Bezel Width 1.88 mm (top/left/right), 19 mm (bottom)
Product Dimensions
(W x H x D)
With base: 492.356 (W) mm x 390.11 (H) mm x 200.20 (D) mm (19.38'' x
15.36'' x 7.88'')
Without base: 492.356 (W) mm x 289.680 (H) mm x 43.88 (D) mm (19.38'' x
11.40'' x 1.73'')
Package Dimensions
(W x H x D)
647 (W) mm x 111 (H) mm x 406 (D) mm (25.49'' x 4.37'' x 15.99'')
Net Weight 2.6 ± 0.5 kg (5.7 ± 1.1 lb.)
Gross Weight 4.0 ± 0.5 kg (8.8 ± 1.1 lb.)
Packing List
AC power cable x 1, base bracket x 1, user manual x 1, quick start guide x 1,
HDMI cable x 1
Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from
your actual device. Please consult our local sales staff for further information.









 Physical Interface



Interface Description
HDMI HDMI digital signal input
VGA VGA analog signal input
AC 100-240V~ 100-240 VAC power supply
AUDIO IN 3.5mm Audio Input



















 Available Model
DS-D5022FN-C



 Dimension
