DS-D5022FN

NO. Description  1 AC INPUT  2 HDMI INPUT  3 VGA INPUT  DS-D5022FN  21.5” LED MONITOR    • LED backlit technology with full HD 1920x1080  • Wide view angle: 178°(H)/178°(V)  • User-friendly operation menu;  • High reliable components for 7x24 working  • 1 channel HDMI 1.3 input interface  • Three image modes to adapt different environment;  • Support software spread-spectrum technology to reduce EMI radiation  • VESA stand bracket  Features and Functions    Physical Interfaces      Available Models  DS-D5022FN                Note: All specifications mentioned above are subject to the actual product.                          Model DS-D5022FN  LCD Screen  Backlight TFT-LED Backlight  Dimension 21.5 inch  Optimal working resolution 1920 x1080@60Hz  Brightness 250 cd/m²  Contrast 3000: 1  Response time 13ms  Color 16.7M  Active Area 476x 268 mm  Viewing Angle Horizantal 178°, vertical 178°  Interfaces VGA input 1  HDMI input 1  General  Casing Material Plastic  Color of Casing Black  Wall-mounting Hole 100 x100 mm  Wall-mounting Screw M4  ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

NO. Description
1 AC INPUT
2 HDMI INPUT
3 VGA INPUT
DS-D5022FN

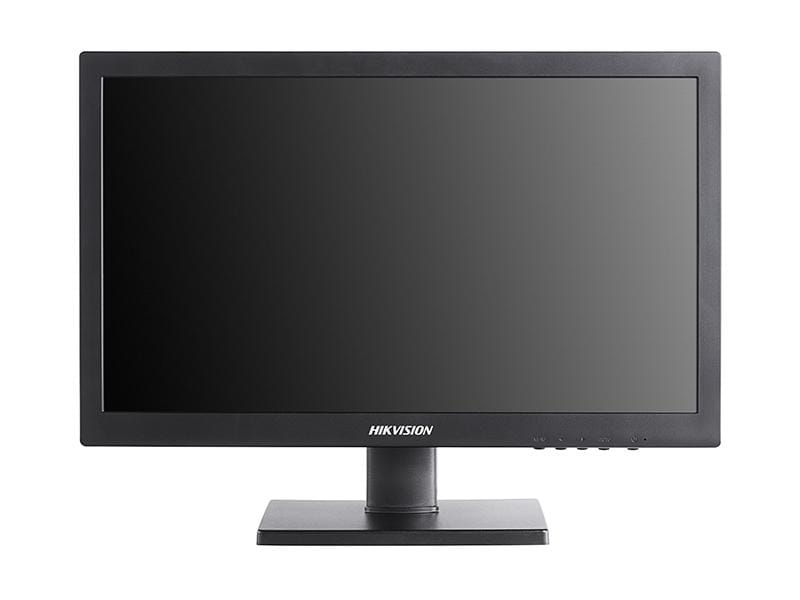

21.5” LED MONITOR

• LED backlit technology with full HD 1920x1080
• Wide view angle: 178°(H)/178°(V)
• User-friendly operation menu;
• High reliable components for 7x24 working
• 1 channel HDMI 1.3 input interface
• Three image modes to adapt different environment;
• Support software spread-spectrum technology to reduce EMI radiation
• VESA stand bracket
Features and Functions

Physical Interfaces


Available Models
DS-D5022FN







Note: All specifications mentioned above are subject to the actual product.












Model DS-D5022FN
LCD Screen
Backlight TFT-LED Backlight
Dimension 21.5 inch
Optimal working resolution 1920 x1080@60Hz
Brightness 250 cd/m²
Contrast 3000: 1
Response time 13ms
Color 16.7M
Active Area 476x 268 mm
Viewing Angle Horizantal 178°, vertical 178°
Interfaces VGA input 1
HDMI input 1
General
Casing Material Plastic
Color of Casing Black
Wall-mounting Hole 100 x100 mm
Wall-mounting Screw M4
Speakers NA
Power Supply 100 to 240 VAC, 50/60Hz
Power Consumption ≤ 30W
Standby Power Consumption ≤ 0.5 W
Working Temperature 0 to 40 º C (32 to 104 º F)
Working Humidity 10 to 85 %
Storage Temperature -20 to 60 º C (-4 to 140 º F)
Storage Humidity 5 to 95%
Dimensions 489x378x167mm
Packing Dimensions 551x384x110mm
Gross Weight 4.44kg
Net Weight 2.75 kg
Accessories
VGA cable 1
Power Cord 1
User Manual 1
Specifications







Dimensions (unit: mm)
