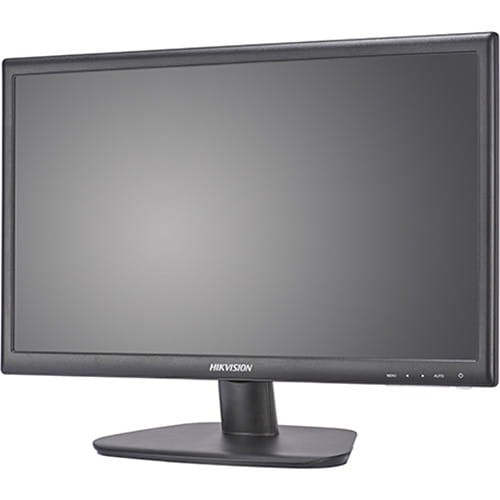

DS-D5024FC-C

DS-D5024FC-C  24-inch Monitor                 Ultra-thin device body with ultra-thin border for 3 sides.       2 channels of 8 bit/10 bit LVDS HD (1920*1080) display.       178° ultra-wide view screen.       3D noise reduction.       Built-in speaker for audio input.       Support 1 channel BNC surveillance video input with professional surveillance standard BNC interface.       Multimedia playing of text, image, audio, video, etc.       Support VESA wall mount.                     Specification  Model DS-D5024FC-C  Display  Screen Size 23.8”  Active Display Area 527.04(H) mm x 296.46(V) mm  Resolution 1920 x 1080  Backlight E-LED  Pixel Pitch 0.0915 (H) mm x 0.2745 (V) mm  Brightness 250 cd/㎡  Viewing Angle 178°/178°  Color Depth 8 bit  Contrast Ratio 4000 : 1  Response Time 6.5 ms（typ）  Refresh Rate 60 Hz  Haze 25 %  Reliability 7 x 18 H  Color Gamut 72%  Interface Video ＆ Audio Input HDMI x 1, VGA x 1, Audio In x 1, USB 2.0 x 1, BNC x 1  Power  Power Supply 100-240 VAC, 50/60 Hz  Power Consumption ≤ 22 W

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-D5024FC-C
24-inch Monitor







 Ultra-thin device body with ultra-thin border for 3 sides.


 2 channels of 8 bit/10 bit LVDS HD (1920*1080) display.


 178° ultra-wide view screen.


 3D noise reduction.


 Built-in speaker for audio input.


 Support 1 channel BNC surveillance video input with professional surveillance standard BNC interface.


 Multimedia playing of text, image, audio, video, etc.


 Support VESA wall mount.









 Specification
Model DS-D5024FC-C
Display
Screen Size 23.8”
Active Display Area 527.04(H) mm x 296.46(V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.0915 (H) mm x 0.2745 (V) mm
Brightness 250 cd/㎡
Viewing Angle 178°/178°
Color Depth 8 bit
Contrast Ratio 4000 : 1
Response Time 6.5 ms（typ）
Refresh Rate 60 Hz
Haze 25 %
Reliability 7 x 18 H
Color Gamut 72%
Interface Video ＆ Audio Input HDMI x 1, VGA x 1, Audio In x 1, USB 2.0 x 1, BNC x 1
Power
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption ≤ 22 W
Standby Consumption ≤ 0.5 W
Working
Environment
Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉ )
Working Humidity 20% to 90% RH (Non-Condensing)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉ )
Storage Humidity 10% to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 75 mm x 75 mm, 4-M6 x 6 screw holes
Bezel Width 1.9 mm (top/left/right), 23.55 mm (bottom)
Product Dimensions
(W x H x D)
With base: 539.1 (W) mm x 433.199 (H) mm x 43.78 (D) mm (21.22'' x 17.05''
x 1.88'')
Without base: 539.1 (W) mm x 328.325 (H) mm x 43.78 (D) mm (21.22'' x
12.93'' x 1.88'')
Package Dimensions
(W x H x D)
650 (W) mm x 475 (H) mm x 135 (D) mm (25.5'' x 18.7'' x 5.31'')
Net Weight 3.6 ± 0.5 kg (7.9 ± 1.1 lb.)
Gross Weight 5.0 ± 0.5 kg (11.0 ± 1.1 lb.)
Packing List
AC power cable x 1, base bracket x 1, user manual x 1, quick start guide x 1,
HDMI cable x 1
Remarks
*The base is included by default.
*The product appearance and parameters in this specification may vary from
your actual device. Please consult our local sales staff for further information.










 Physical Interface

Interface Description Interface Description
HDMI HDMI digital signal input VGA VGA analog signal input
AC 100-240V~ 100-240 VAC power supply AUDIO IN 3.5mm Audio Input
USB USB 2.0 BNC CVBS Signal Input


 Dimension







 Available Model
DS-D5024FC-C




 Accessory
 Optional
DS-DM1940W
Wall-mounted
Bracket
