DS-D5032FC-A

DS-D5032FC  32” Monitor  key Features  •Support 8bit/10bit 2-ch LVDS(1920x1080) HD  display  •Adopt 3-D digital comb filter  •True color OSD and user-friendly operation menu  •1 channel HDMI 1.3 input interface, support HDCP  1.2  •Adopt 3D noise reduction technology  •Programmable 12-bit RGB gamma correction  technology  •Support software spread-spectrum technology to  reduce EMI radiation  •Adopt MstarACE-5 auto color and image  enhancement engine, improve image contrast,  detail and edge  •High reliable component for 7x24 h working  •Green energy: Supporting set standby mode while  no signal input,set the sleep time  Model  DS-D5032FC  Interfaces  NO.Description  1HDMI:DigitalSignal Input  2VGA : Analog Signal Input  3S-VIDEO  4BNC IN  5BNC OUT  6AUDIO IN: Audio Input  7AUDIO OUT: Audio Output  8Power        DS-D5032FC  32” Monitor  ModelDS-D5032FC  Display TypeTFT-LED Backlight  Screen Size 32”  Dot Pitch (HxV)0.36375 mm x0.36375 mm  Resolution1920 x 1080  Brightness300 cd/㎡  Contrast3000 : 1  Response Time3.5 ms  Color16.7 M  Viewable Area (HxV)698.40 mm x 392.85 mm  Viewing AngleHorizontal 178°, Vertical 178°  Interfaces ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

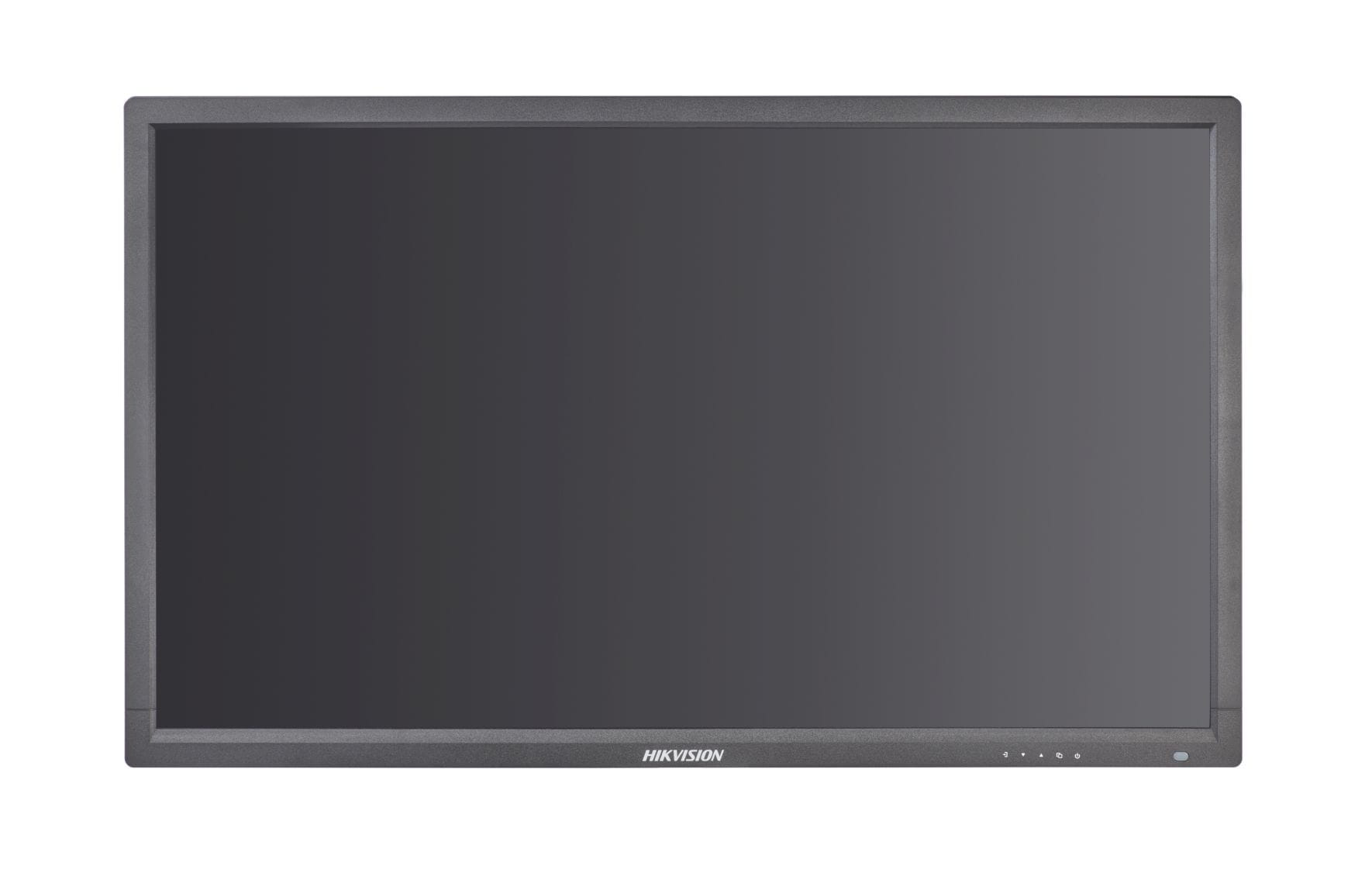

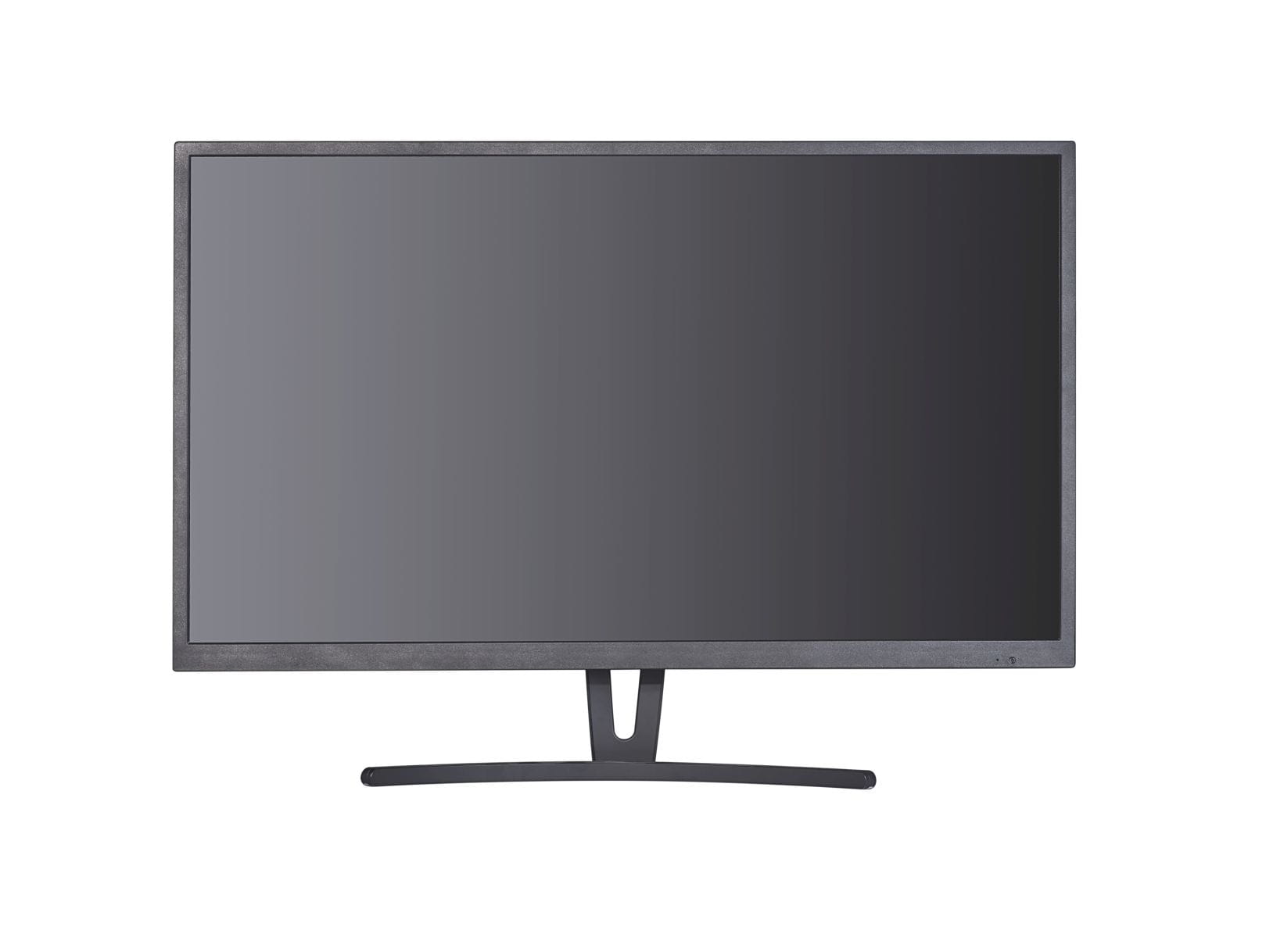

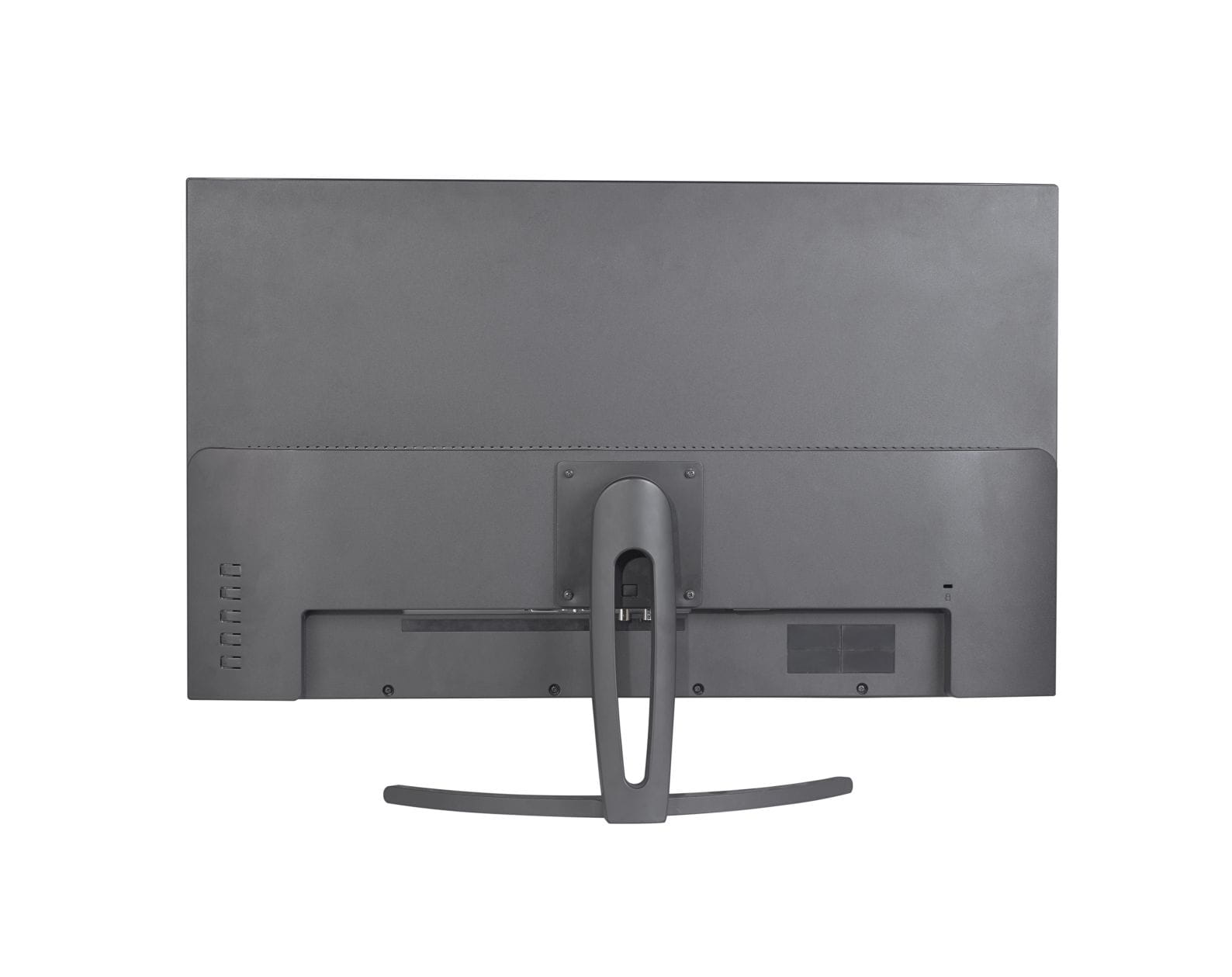

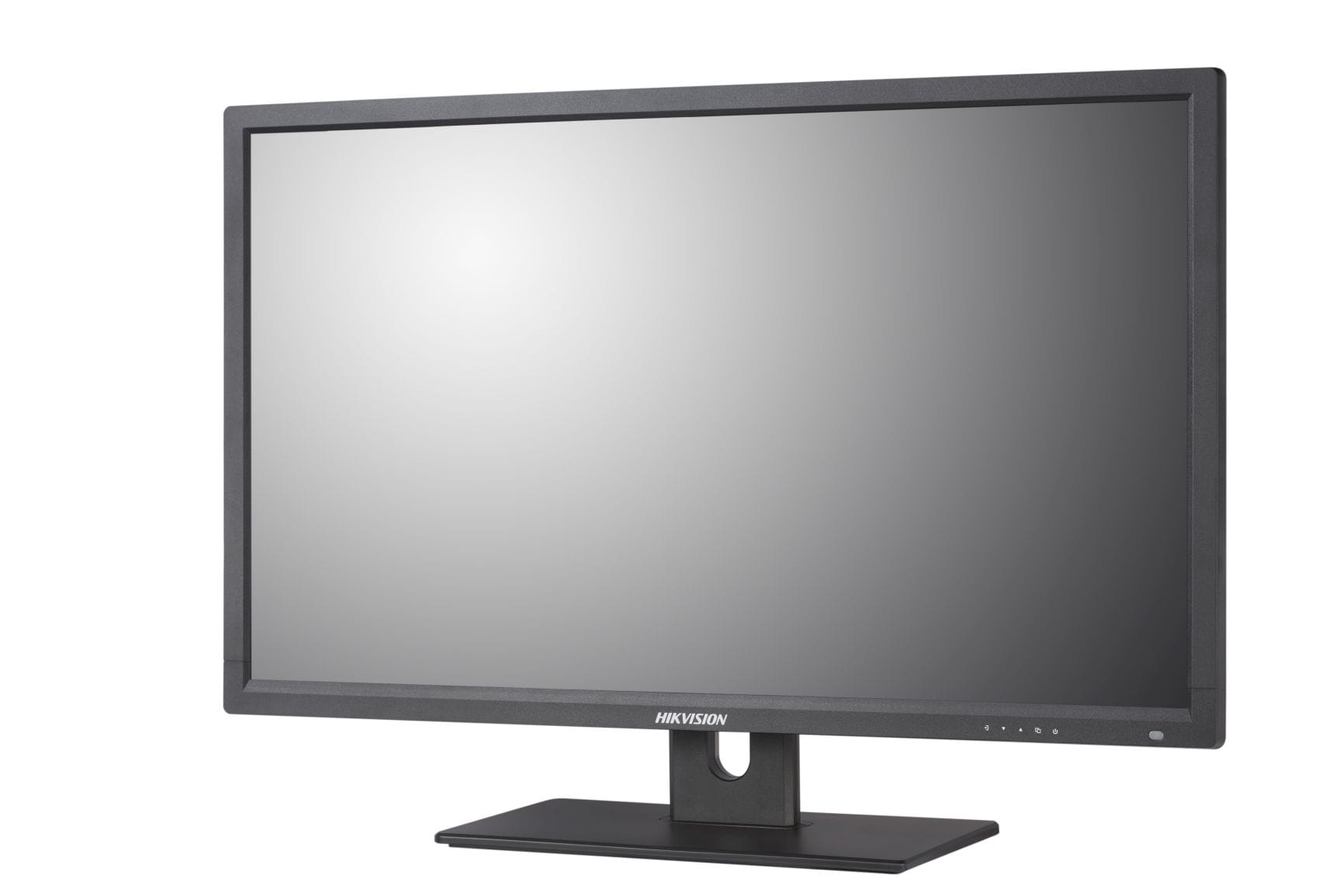

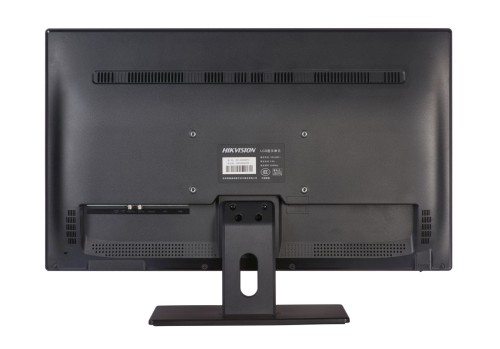

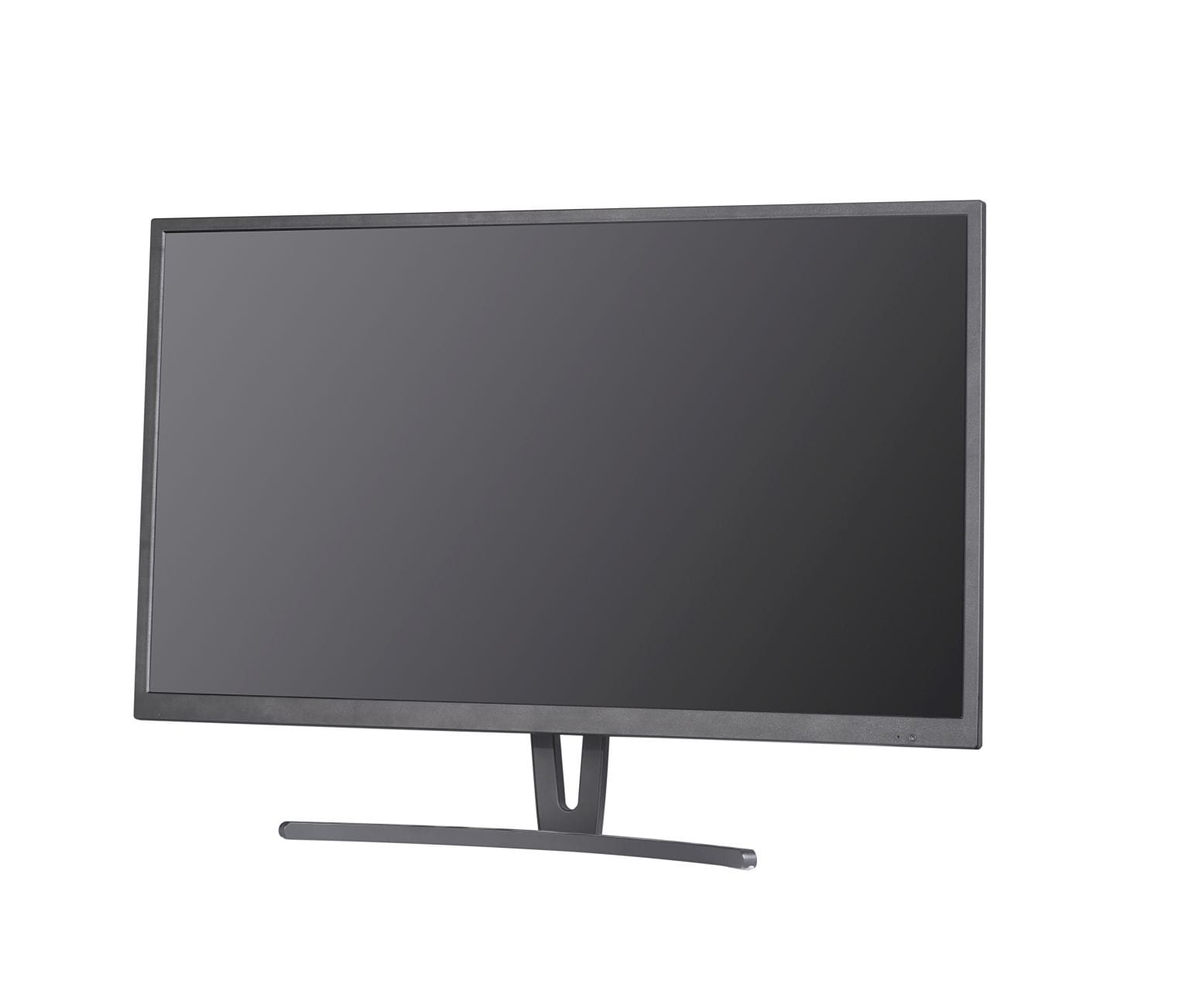

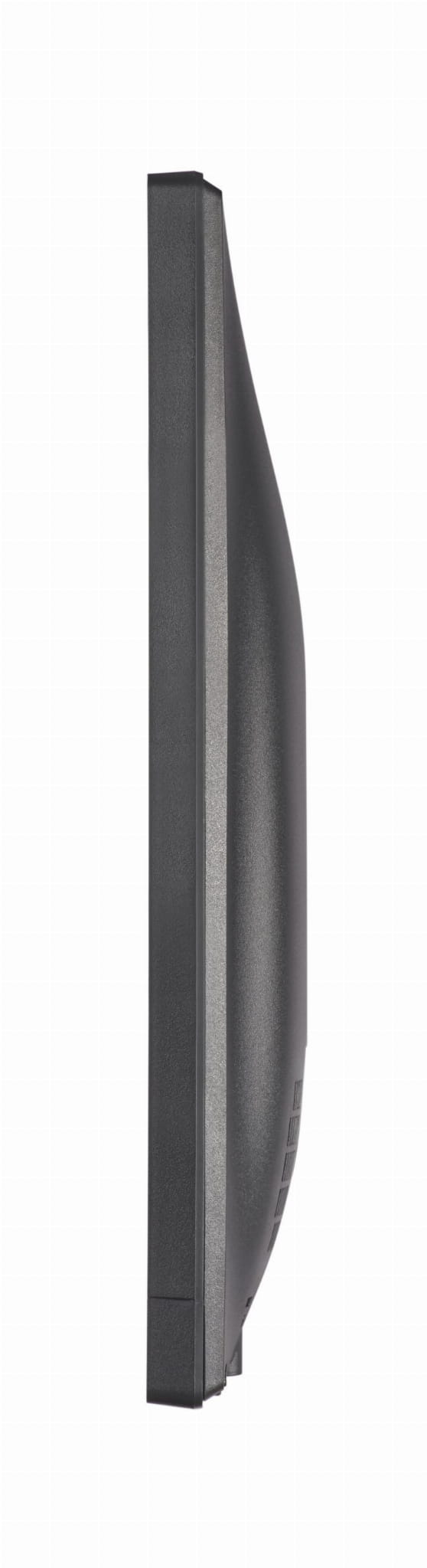

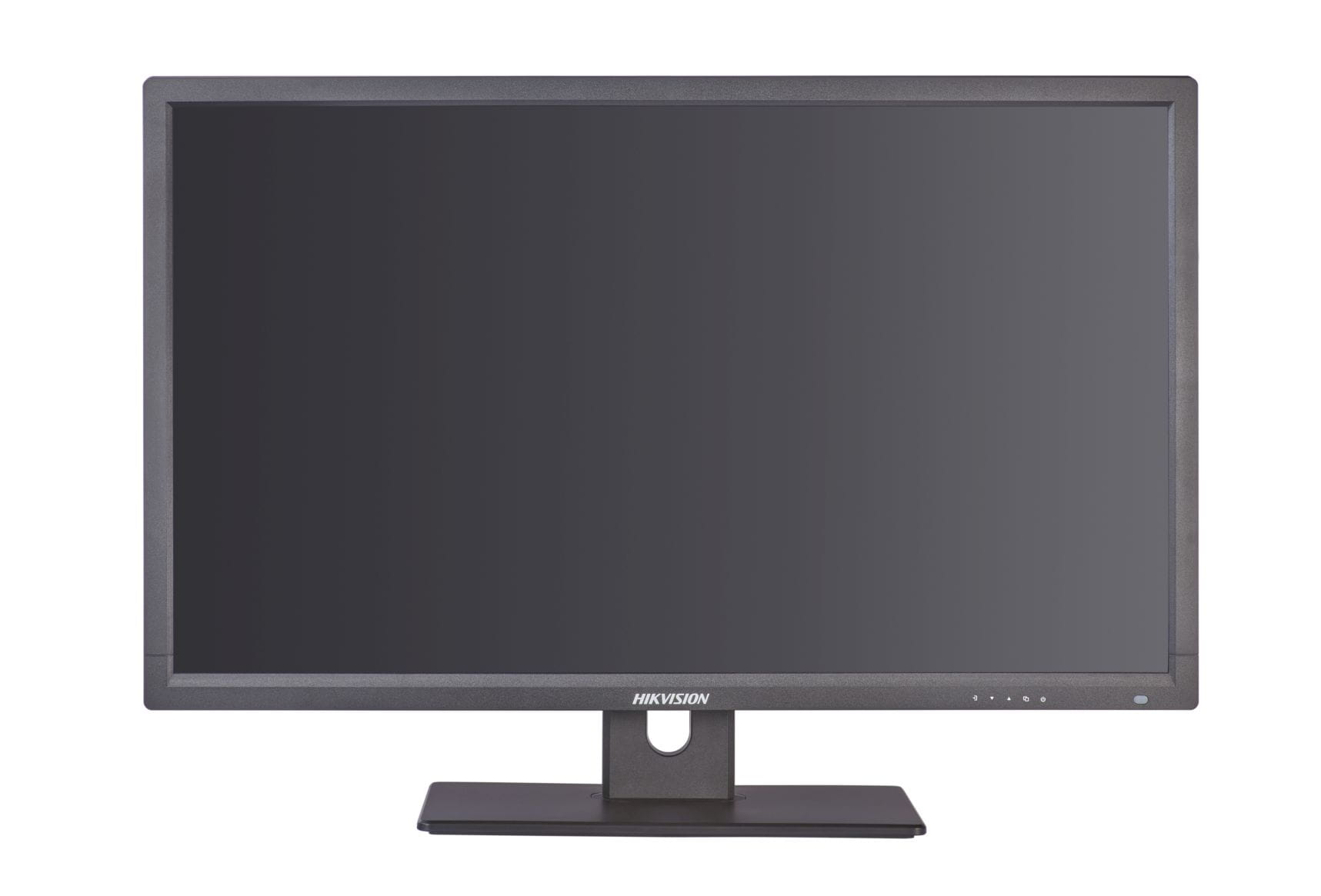

DS-D5032FC
32” Monitor
key Features
•Support 8bit/10bit 2-ch LVDS(1920x1080) HD
display
•Adopt 3-D digital comb filter
•True color OSD and user-friendly operation menu
•1 channel HDMI 1.3 input interface, support HDCP
1.2
•Adopt 3D noise reduction technology
•Programmable 12-bit RGB gamma correction
technology
•Support software spread-spectrum technology to
reduce EMI radiation
•Adopt MstarACE-5 auto color and image
enhancement engine, improve image contrast,
detail and edge
•High reliable component for 7x24 h working
•Green energy: Supporting set standby mode while
no signal input,set the sleep time
Model
DS-D5032FC
Interfaces
NO.Description
1HDMI:DigitalSignal Input
2VGA : Analog Signal Input
3S-VIDEO
4BNC IN
5BNC OUT
6AUDIO IN: Audio Input
7AUDIO OUT: Audio Output
8Power



DS-D5032FC
32” Monitor
ModelDS-D5032FC
Display TypeTFT-LED Backlight
Screen Size 32”
Dot Pitch (HxV)0.36375 mm x0.36375 mm
Resolution1920 x 1080
Brightness300 cd/㎡
Contrast3000 : 1
Response Time3.5 ms
Color16.7 M
Viewable Area (HxV)698.40 mm x 392.85 mm
Viewing AngleHorizontal 178°, Vertical 178°
Interfaces
HDMI Input1
VGA Input1
BNC Input1
S-VIDEOInput 1
BNC Output 1
PC AUDIO-IN1 ,3.5 mm mini-jack
PC AUDIO-OUT1, 3.5 mm mini-jack
Speaker3 W x 2
VESA200 mm x 100 mm
Power Supply100 ~ 240 V AC, 50/60 Hz
PowerConsumption≤55 W
Operation Temperature0°C ~ 40°C
Operation Humidity10%~85% (No Condensation)
Storage Temperature-20°C ~ 60°C
Bezel MaterialPlastic
Bezel ColorBlack
Dimension (WxHxD)743.95 mm x443.40 mm x59.20 mm
Weight10.6 Kg(Grossweight) , 8 Kg(Net weight)
Included Accessories
power cord x 1, VGA cable x1,Remote control x 1, battery x 2,
package of screws x 1, user manualx 1, warranty card x 1

Specification

DS-D5032FC
32” Monitor
Dimension (mm)
