DS-D5043FL-B
43 inch FHD Monitor



Key Features
• Supports 8 bit dual-channel LVDS (1920 x 1080) HD display.
• Adopts 3D digital comb filter and 3D noise reduction technology.
• Adopts 12-bit RGB gamma calibration technology.
• Built-in infrared remote control receiver, integrated design, beautiful appearance.
• Fine factory settings.
• Software spread spectrum technology can reduce EMI radiation.
• BNC interface supports one-channel CVBS surveillance video input and CVBS loop out.
• Supports multi-media broadcasting in text, picture, audio and video formats.
• Fan-less design provides energy-saving operation.
• Supports one-touch quiescence and high temperature alarm.
• Supports USB software update.
• Supports 3.5 mm audio input.
• Supports 7 x 24 hours working mode.
• Adopts Mstar ACE-5 auto-coloring and image-enhancing engine to improve image contrast, detail, skin color, edge, etc.

Physical Interface

Interface Description Interface Description
BNC IN CVBS signal input USB USB interface
BNC OUT CVBS signal loop out RS232 IN Serial port input
HDMI IN HDMI digital signal input RS232 OUT Serial port output
DVI IN DVI signal input 100-240V～ Power supply
VGA IN VGA signal input SWITCH Power switch
AUDIO IN 3.5 mm audio input




Specifications
Model DS-D5043FL-B
Display
Screen size 43 inch
Active display area 942.78 (H) x 531.02 (V) mm (37.11 x 20.91 inch)
Backlight LED
Pixel pitch 490.05 (H) x 490.05 (V) um
Border width 28.5 mm (left side, right side), 28.5 mm (top), 31 mm (bottom)
Resolution 1920 x 1080
Brightness 500 nit
Viewing angle 178@CR > 10
Color depth 8 bit
Contrast ratio 100000: 1(Dynamic)
Response time 8 ms
Refresh rate 60 Hz
Color gamut 72 % NTSC
Haze 1.00 %
Reliability 7 x 24 H
Interface
Video & audio input
VGA x 1, DVI x 1, HDMI x 1, BNC IN x 1
AUDIO IN x 1
Video & audio output
BNC OUT x 1
Built-in audio x 2
Data transmission interface USB x 1
Control interface RS-232 IN x 1, RS-232 OUT x 1
General
Casing material SECC
VESA 400 (H) x 300 (V) mm (15.04 x 11.81 inch)
Power supply 100 to 240 VAC, 50/60 Hz
Power consumption 118 W
Standby consumption 1 W
Working temperature 0 °C to 40 °C (32 °F to 104 °F)
Working humidity 10 % to 80 % RH
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage humidity 10 % to 80 % RH
Product dimensions 998.78 x 590.52 x 78.24 mm (39.32 x 23.24 x 3.08 inch)
Package dimension 1192 x 752 x 208 mm (46.93 x 29.61 x 8.18 inch)
Net weight 21 Kg (46.3 lb.)
Gross weight 23 Kg (50.71 lb.)
Accessory
Remote control x 1, Serial port adaptor x 1, Carbon dry battery x 2,
network cable x 1, Power cable x 1, CD-ROM x 1

Available Model
DS-D5043FL-B

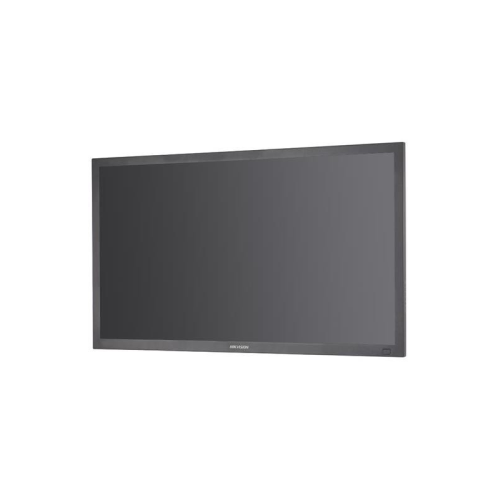

Appearance
