DS-D5043UC

Interfaces              Key Features   Designed for surveillance, high reliability and stability   4K resolution is 4 times 1080P can own broader view and more abundant details   HDMI support up to 4K@60Hz   Multiple inputs: HDMI, VGA, RJ45, USB   Build-in speaker, Audio 8W*2   Narrow front Bezel  DS-D5043UC 42.5” 4K Monitor    NO. Description  1 RS232  2 HDMI 2.0*2  3 VGA  4 LAN  5 Audio out  6 Audio in  7 USB3.0*1 /USB2.0*1                              Model DS-D5043UC  Backlight D-LED  Screen Size 42.5 inch  Pixel Pitch 0.2451mm (H) * 0.2451mm(W)  Max Resolution 3840 * 2160  Brightness 400 cd/m2 (Typ.)  Contrast 1200:1  Response Time 8ms  Color 1.07billion  Active Area 941.184mm(H) * 529.416mm(V)  Viewing Angle Horizontal 178°, Vertical 178°  Interfaces  RS232 1  HDMI 2.0 2  VGA 1  LAN 1  Audio out 1  Audio in 1   USB3.0*1 /USB2.0*1 2  Power Supply AC 100~240V, 50/60 Hz  Power Consumption ≤120W  Standby power Consumption 0.5W  Loudspeaker 8W*2  Working Temperature 0℃~40℃  Working Humidity 20% - 80%RH (No Condensation)  Storage...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

Interfaces






Key Features
 Designed for surveillance, high reliability and stability
 4K resolution is 4 times 1080P can own broader view and more abundant details
 HDMI support up to 4K@60Hz
 Multiple inputs: HDMI, VGA, RJ45, USB
 Build-in speaker, Audio 8W*2
 Narrow front Bezel

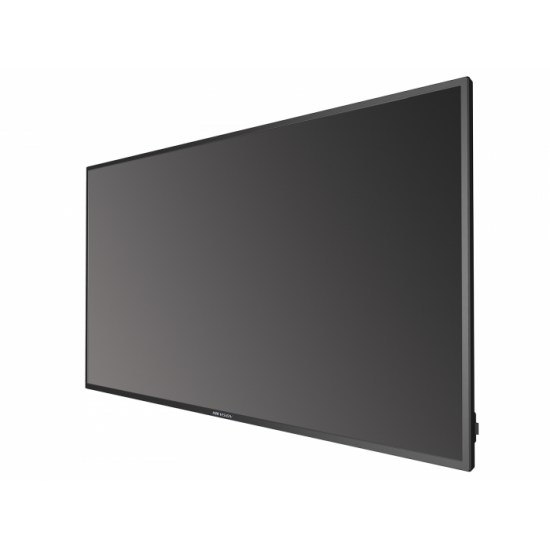

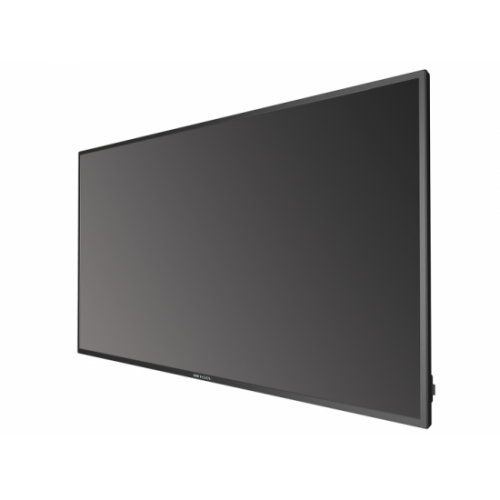

DS-D5043UC 42.5” 4K Monitor

NO. Description
1 RS232
2 HDMI 2.0*2
3 VGA
4 LAN
5 Audio out
6 Audio in
7 USB3.0*1 /USB2.0*1














Model DS-D5043UC
Backlight D-LED
Screen Size 42.5 inch
Pixel Pitch 0.2451mm (H) * 0.2451mm(W)
Max Resolution 3840 * 2160
Brightness 400 cd/m2 (Typ.)
Contrast 1200:1
Response Time 8ms
Color 1.07billion
Active Area 941.184mm(H) * 529.416mm(V)
Viewing Angle Horizontal 178°, Vertical 178°
Interfaces
RS232 1
HDMI 2.0 2
VGA 1
LAN 1
Audio out 1
Audio in 1
USB3.0*1 /USB2.0*1 2
Power Supply AC 100~240V, 50/60 Hz
Power Consumption ≤120W
Standby power Consumption 0.5W
Loudspeaker 8W*2
Working Temperature 0℃~40℃
Working Humidity 20% - 80%RH (No Condensation)
Storage Temperature -20℃ ~ +60℃
Storage Humidity 10% - 90%RH (No Condensation)
Color of Casing Black
VESA 200mm*200mm/400mm*400mm
Dimensions(W*H*D) 968.2mm*559.4mm*60.9 mm
Packing Dimensions(W*H*D) 1070mm*696mm*159 mm
Gross Weight 11.7kg
Net Weight 8.6kg
Accessories
Power cord 1
Battery 1
Remote Control 1
User manual 1
HDMI cable 1
Bracket
Pedestal NA
Wall mounted Optional DS-DM4255W
*Note All specifications mentioned above are subject to the actual product




Specifications









Dimensions (unit: mm)
