DS-D5055UC-C

DS-D5055UC-C  55-inch LCD Monitor                 Designed for surveillance, high reliability and stability       55" LED backlight with wide display equipment       4K resolution is 4 times the resolution of 1080p, providing a wider view and more fine detail       Multiple inputs: HDMI, VGA, RJ45, USB       Narrow front bezel       Wide view angle: Horizontal 178°, Vertical 178°       24/7 operation                     Specification  Model DS-D5055UC-C  Display  Screen Size 55”  Active Display Area 1209.6 (H) mm x 680.4 (V) mm  Resolution 3840 x 2160@60 Hz  Backlight LED  Pixel Pitch 0.315 (H) mm x 0.315 (V) mm  Brightness 350 cd/m²  Viewing Angle 178° (H) / 178° (V)  Color Depth 8 bit  Contrast Ratio 1200:1  Response Time 8 ms  Refresh Rate 60 Hz  Haze 1%  Reliability 7 x 24 H  Color Gamut 72% NTSC  Interface  Video & Audio Input HDMI 1.4 x 1, HDMI2.0 x 1, VGA x 1, Audio in x 1  Video & Audio Output Speaker (6Ω 11W) x 2  Data Transmission  Interface  USB x 1  Control Interface RS232 x 1  Power  Power Supply 100~240 V...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-D5055UC-C

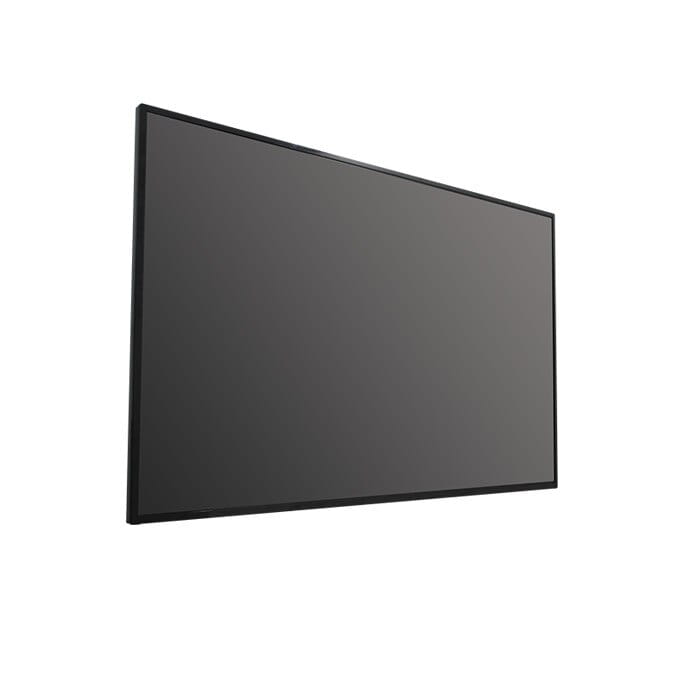

55-inch LCD Monitor







 Designed for surveillance, high reliability and stability


 55" LED backlight with wide display equipment


 4K resolution is 4 times the resolution of 1080p, providing a wider view and more fine detail


 Multiple inputs: HDMI, VGA, RJ45, USB


 Narrow front bezel


 Wide view angle: Horizontal 178°, Vertical 178°


 24/7 operation









 Specification
Model DS-D5055UC-C
Display
Screen Size 55”
Active Display Area 1209.6 (H) mm x 680.4 (V) mm
Resolution 3840 x 2160@60 Hz
Backlight LED
Pixel Pitch 0.315 (H) mm x 0.315 (V) mm
Brightness 350 cd/m²
Viewing Angle 178° (H) / 178° (V)
Color Depth 8 bit
Contrast Ratio 1200:1
Response Time 8 ms
Refresh Rate 60 Hz
Haze 1%
Reliability 7 x 24 H
Color Gamut 72% NTSC
Interface
Video & Audio Input HDMI 1.4 x 1, HDMI2.0 x 1, VGA x 1, Audio in x 1
Video & Audio Output Speaker (6Ω 11W) x 2
Data Transmission
Interface
USB x 1
Control Interface RS232 x 1
Power
Power Supply 100~240 VAC, 50/60Hz
Power Consumption ≤ 165 W
Standby Consumption ≤ 0.5 W
Working
Environment
Working
Temperature
0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity 20% to 80% RH (Non-Condensing)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 200 mm x 200 mm (4 x M6-25 mm)
Bezel Width 8.24 mm (top/left/right), 20.69 mm (bottom)
Product Dimensions
(W x H x D)
Without stand: 1230.08 mm x 713.39 mm x 86.35 mm (48.43" x 28.09" x 3.40")
With stand: 1230.08 mm x 786.86 mm x 267.87 mm (48.43" x 30.98" x 10.55")
Package Dimensions
(W x H x D)
1360 mm x 860 mm x 160 mm (53.54" x 33.86"x 6.30")
Net Weight
Without stand: 11.42 kg (25.18 lb)
With stand: 11.66 kg (25.71 lb)
Gross Weight
Without stand: 15.85 kg (34.94 lb)
With stand: 16.09 kg (35.47 lb)
Packing List Power cable x 1, remote control x 1, user manual x 1, HDMI cable x 1, base bracket x 1
Remarks
If the appearance and parameters in this specification vary from the actual product,
the later prevails. You can also consult local sale staff.







 Physical Interface



Interface Interface Interface Interface
HDMI-IN1 HDMI1.4 Input, 3840 x
2160@30Hz
VGA VGA Input, 1920 x
1080@60Hz
HDMI-IN2 HDMI2.0 Input, 3840 x
2160@60Hz
AUDIO-IN Audio Input
USB USB2.0 Input













 Available Model
DS-D5055UC-C



 Dimension
