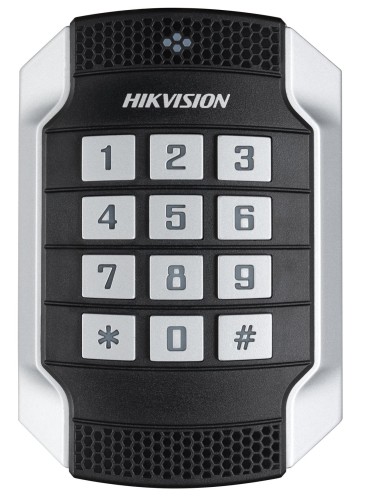

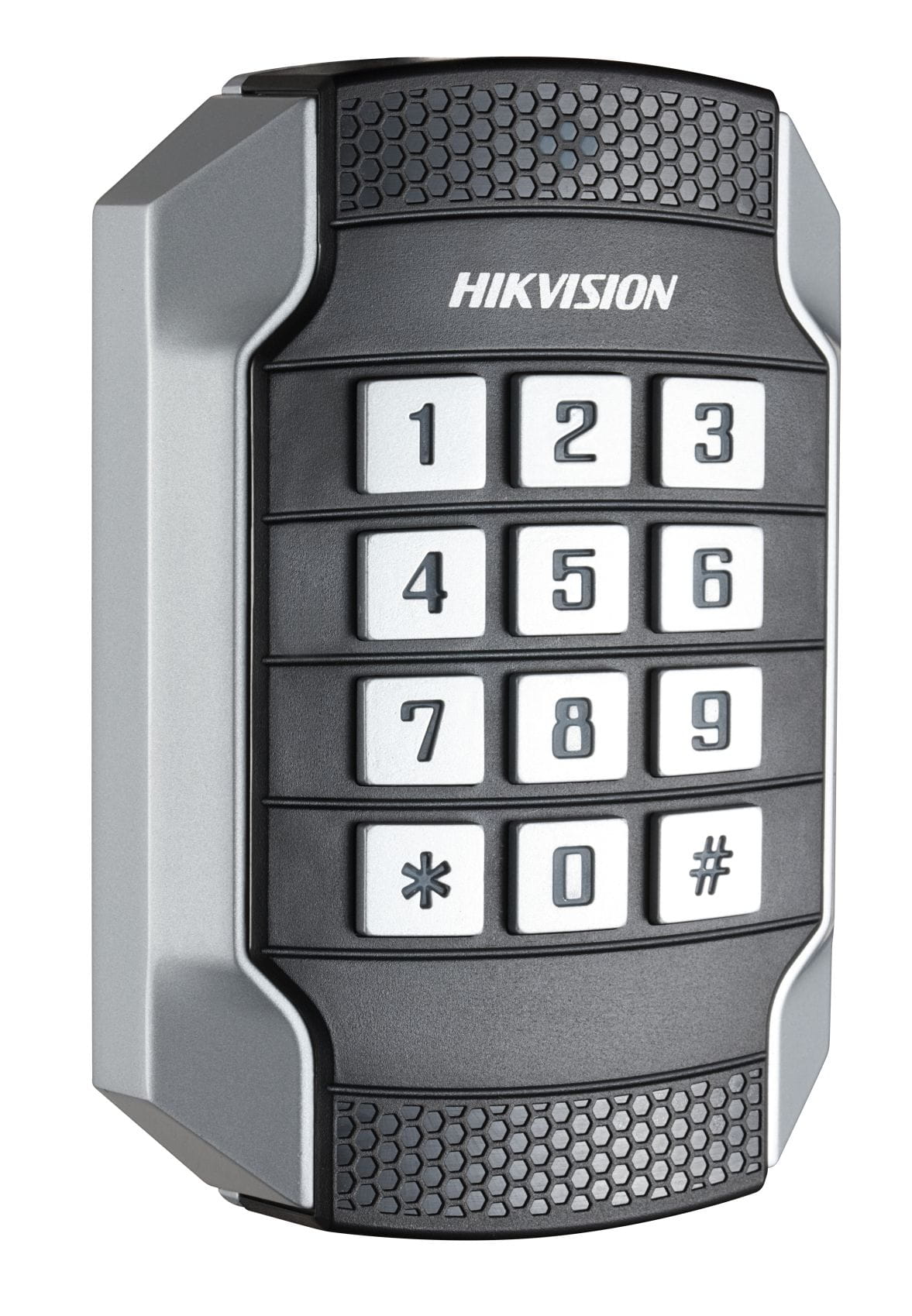

DS-K1104MK

Verfügbarkeit: 101-500
Preis: 148,92 € 148.92
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 302900513

Beschreibung

1                  DS-K1104M Mifare Card Reader  DS-K1104MK Mifare Card Readerwith Keyboard         PC + zinc-alloy material shell(material protection level is IK 10);   Equipped with the 32-bit high-speed processor;   Built-in audible beeper;   Display the reader status with LED indicator   DIP switch;   RS485 and Wiegand(W26/W34) protocol;   Tamper-proof alarm;   Online upgrade function (under the 485 communication mode), andcard reader can degrade to  pre-upgrade status in case of upgrading failed;   Watchdog design for repairing itself in case that exception occurs, to ensure the long service life  of the reader;   Dust-proof and water-proof design;   ReadMifare card and obtain the card No.;            Vandal-proof Card Reader  MAIN FEATURES  DS-K1104M/MK  AVAILABLE MODELS      Spec of DS-K1104M/MKVandal-proof Card Reader www.hikvision.com  2          Model DS-K1104M/MK  Power Supply 12V DC  Working Current ≤500mA  Processor 32-bit  Reading Frequency 13.56MHz  Reading Range 30 to 50mm (1.18 to 1.96")  ID Settings Setting by the DIP Switch on the Main Board  Aud...

Garantie: 24 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

1








DS-K1104M Mifare Card Reader
DS-K1104MK Mifare Card Readerwith Keyboard



 PC + zinc-alloy material shell(material protection level is IK 10);
 Equipped with the 32-bit high-speed processor;
 Built-in audible beeper;
 Display the reader status with LED indicator
 DIP switch;
 RS485 and Wiegand(W26/W34) protocol;
 Tamper-proof alarm;
 Online upgrade function (under the 485 communication mode), andcard reader can degrade to
pre-upgrade status in case of upgrading failed;
 Watchdog design for repairing itself in case that exception occurs, to ensure the long service life
of the reader;
 Dust-proof and water-proof design;
 ReadMifare card and obtain the card No.;





Vandal-proof Card Reader
MAIN FEATURES
DS-K1104M/MK
AVAILABLE MODELS


Spec of DS-K1104M/MKVandal-proof Card Reader www.hikvision.com
2




Model DS-K1104M/MK
Power Supply 12V DC
Working Current ≤500mA
Processor 32-bit
Reading Frequency 13.56MHz
Reading Range 30 to 50mm (1.18 to 1.96")
ID Settings Setting by the DIP Switch on the Main Board
Audio Alert Beeper
Power Consumption ≤6W
Keypad
No Keypad (DS-K1104M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
Certifications FCC, CE
LED Indicator Power Indicator; Status LED Indicator
Working Temperature -40°C to +70°C (-40°F to +158°F)
Working Humidity 10% to 90% (Non Condensing)
Protection Level IP 65
Dimensions 118x76x23mm (4.65x2.99x0.91")
Weight ≤ 0.52Kg
Installing Method Applied for 86 & 120 Gang Box

SPECIFICATION
