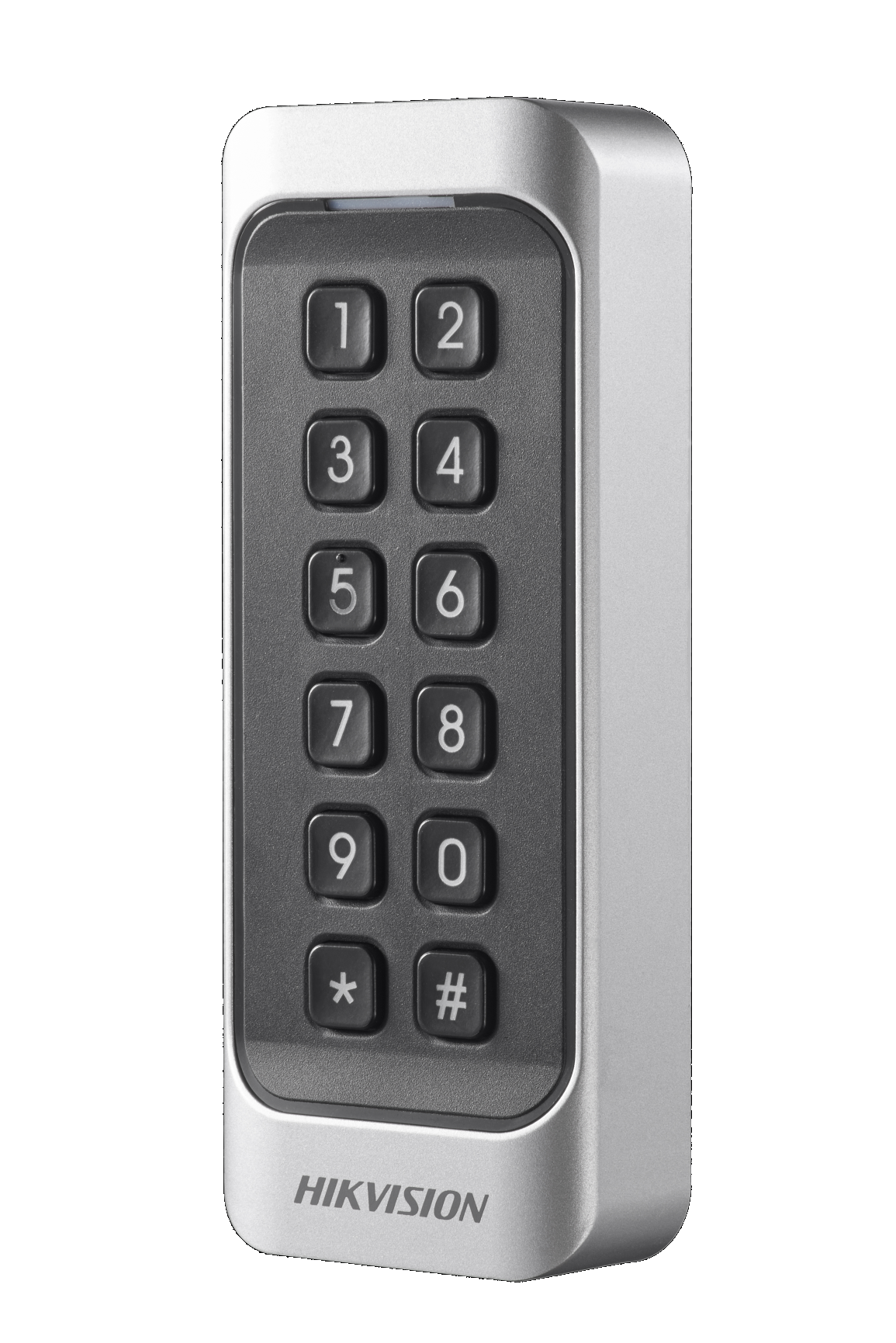

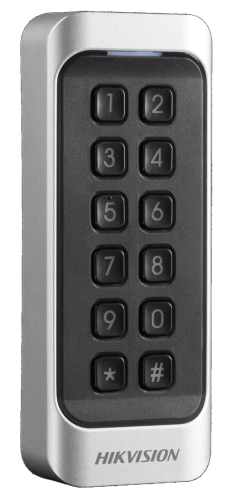

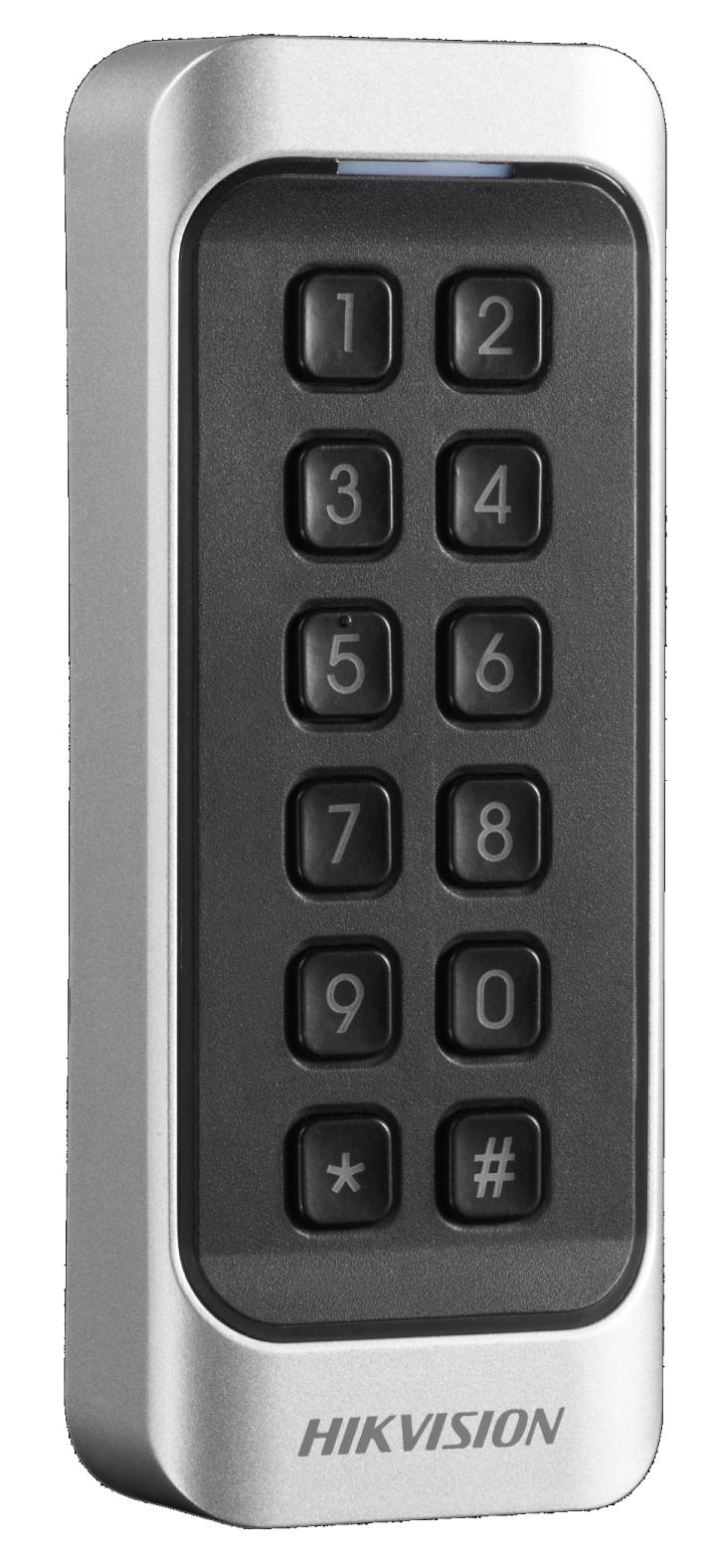

DS-K1107EK

Verfügbarkeit: 0
Preis: 64,05 € 64.05
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: HIKVISION
Produkt-Code/SKU: 302901607

Beschreibung

1            DS-K1107E DS-K1107EK ID card readable  DS-K1107M DS-K1107MK Mifare card readable           Equipped with the 32-bit high-speed processor   RS-485 and Wiegand (W26/W34) protocol   The card reading frequency is 125KHz and the number of ID card can be read (DS-K1107E and  DS-K1107EK).   Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number  and content of Mifare card can be read (DS-K1107M and DS-K1107MK).   Supports tampering alarm   Built-in buzzer for identifying the reading status   Online upgrade function   Watchdog design for repairing itself in case that exception occurs, to ensure the long service life  of the reader          Model DS-K1107 Series Card Reader  Power Supply 12V DC  Power Consumption ≤2W  Processor 32-bit  Reading Range ≥5cm    Card Reader    MAIN FEATURES    DS-K1107    AVAILABLE MODELS    SPECIFICATION      Spec of DS-K1107 Series Card Reader www.hikvision.com  2    Model DS-K1107 Series Card Reader  ID Settings Setting by the DIP Switch on th...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

1





DS-K1107E DS-K1107EK ID card readable
DS-K1107M DS-K1107MK Mifare card readable




 Equipped with the 32-bit high-speed processor
 RS-485 and Wiegand (W26/W34) protocol
 The card reading frequency is 125KHz and the number of ID card can be read (DS-K1107E and
DS-K1107EK).
 Meets the standard of ISO 14443-A and the card reading frequency is 13.56MHz. The number
and content of Mifare card can be read (DS-K1107M and DS-K1107MK).
 Supports tampering alarm
 Built-in buzzer for identifying the reading status
 Online upgrade function
 Watchdog design for repairing itself in case that exception occurs, to ensure the long service life
of the reader




Model DS-K1107 Series Card Reader
Power Supply 12V DC
Power Consumption ≤2W
Processor 32-bit
Reading Range ≥5cm

Card Reader

MAIN FEATURES

DS-K1107

AVAILABLE MODELS

SPECIFICATION


Spec of DS-K1107 Series Card Reader www.hikvision.com
2

Model DS-K1107 Series Card Reader
ID Settings Setting by the DIP Switch on the Main Board
Communication Interface RS-485 / Wiegand (DIP Switch)
Audio Alert Beeper
Keypad
No Keypad (DS-K1107E and DS-K1107M)
Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
LED Indicator Power Indicator, Status Indicator
Working Temperature -20°C to +65°C (-4°F to 149°F)
Working Humidity 10% to 90% (Non Condensing)
Dimensions 115x44x22mm (4.53x1.73x0.87inch)
Tampering Alarm Support
Water-proof IP65
Installing Method Wall mounting with screws. The Gang Box is not supported.
