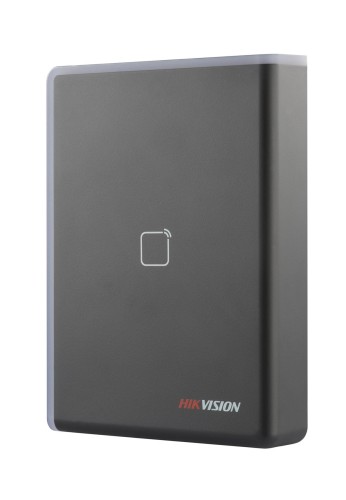

DS-K1108M

1                DS-K1108E DS-K1108EK （ID Card Reading）  DS-K1108M DS-K1108MK （MIFARE Card Reading）             32-bit high-speed processor   Support RS485 and Wiegand(w26, w34) protocol   Build-in ID card reading module (Frequency:125KHz). Supports reading ID card No（DS-K1108E/DS-K1108EK）   Supports Mifare card reading(meet the standards of )ISO 14443-A , including card No.and content reading   Tamper-proof function   Build-in buzzer for status indication   Online upgrading   Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the  basic function of the terminal        Model DS-K1108  Power Supply DC 12V  Power Consumption ≤2W  Processor 32bit  Radio Frequency Standard ISO 14443-A    Card Reader    MAIN FEATURES      DS-K1108    AVAILABLE MODELS      SPECIFICATION      Spec of DS-K1108 Card Reader www.hikvision.com  2    Model DS-K1108  Induction Distance 3-8CM  ID Settings via DIP Switch  Communication Mode RS485/Wiegand（...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

1







DS-K1108E DS-K1108EK （ID Card Reading）
DS-K1108M DS-K1108MK （MIFARE Card Reading）





 32-bit high-speed processor
 Support RS485 and Wiegand(w26, w34) protocol
 Build-in ID card reading module (Frequency:125KHz). Supports reading ID card No（DS-K1108E/DS-K1108EK）
 Supports Mifare card reading(meet the standards of )ISO 14443-A , including card No.and content reading
 Tamper-proof function
 Build-in buzzer for status indication
 Online upgrading
 Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the
basic function of the terminal



Model DS-K1108
Power Supply DC 12V
Power Consumption ≤2W
Processor 32bit
Radio Frequency Standard ISO 14443-A

Card Reader

MAIN FEATURES


DS-K1108

AVAILABLE MODELS


SPECIFICATION


Spec of DS-K1108 Card Reader www.hikvision.com
2

Model DS-K1108
Induction Distance 3-8CM
ID Settings via DIP Switch
Communication Mode RS485/Wiegand（）
Prompt Buzzer
Keypad Physical Key/No Key
LED Indicator Power/Status
Working Temperature -20℃～﹢℃
Working Humidity 10%~90% (No Condensing)
Dimension 123*88*21(mm)
Tamper-Proof Tampering Alarm
Water-Proof Level IP65
Mounting Method Wall Mounting with/without Gang Box
