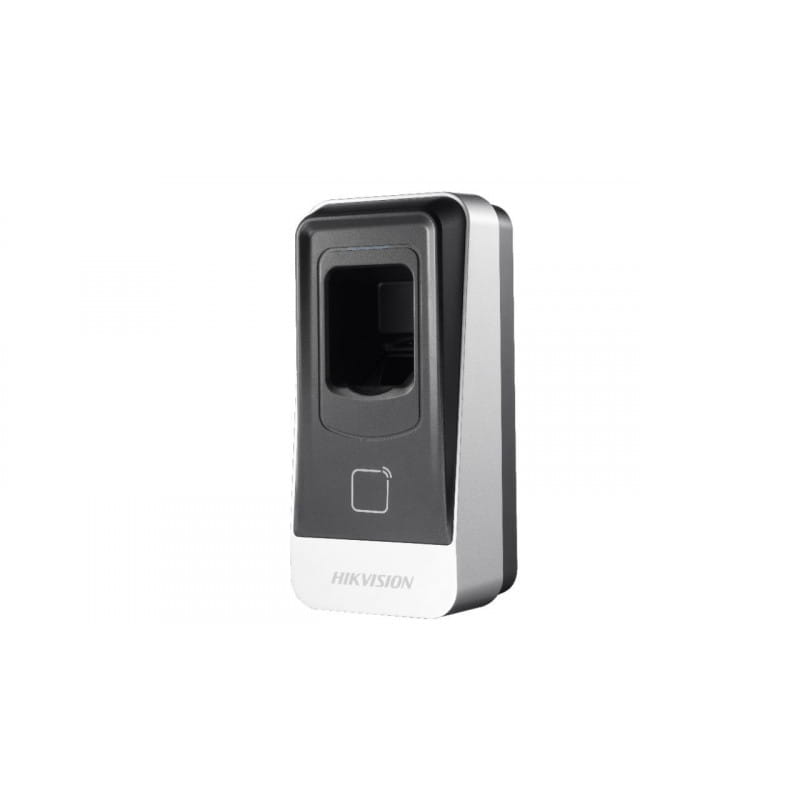

DS-K1201AMF
Fingerprint and Card Reader








 A group of messy code encrypted data for the security of fingerprint storage
 Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
 Supports M1 card reading
 Card induction distance is 30 mm to 100 mm
 Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
 Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
 Max. 5000 fingerprints storage
 Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card +
fingerprint)
 Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
 Communication circuit is designed with optical coupling isolation and noise suppression function
 Built-in buzzer for status indication
 Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic
function of the terminal
 Tamper-proof function





 Specification
Interface
TAMPER 1
Authentication
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1/1:N
Card type Mifare 1 card
General
Power supply 12 VDC ± 10%
Working temperature -40 °C to 70 °C (-40 °F to 158 °F)
Working humidity 10% to 90% (No condensing)
Dimensions 62 mm x 132 mm x 44 mm (2.44" x 5.20" x 1.73")
Installation Surface mounting
Buzzer Support


















 Available Model
DS-K1201AMF
