1





DS-K1A802F-1 (Fingerprint)
DS-K1A802EF-1 (EM Card, Fingerprint)
DS-K1A802MF-1 (M1 Card, Fingerprint)



 2.8-inch LCD screen to display time, date, week, and attendance information
 Supports registering fingerprints from the terminal to software remotely
 Max. 800 users, Max. 800 fingerprints and Max. 50,000 events records
 Two attendance authentication modes: authentication by person, authentication by device
 Stand-alone operation (supports adding persons, cards, and fingerprints locally)
 Exports the swiping card data and the attendance report to the USB
 Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be
configured
 Generates the attendance report automatically and view the attendance data easily
 Intelligent English input

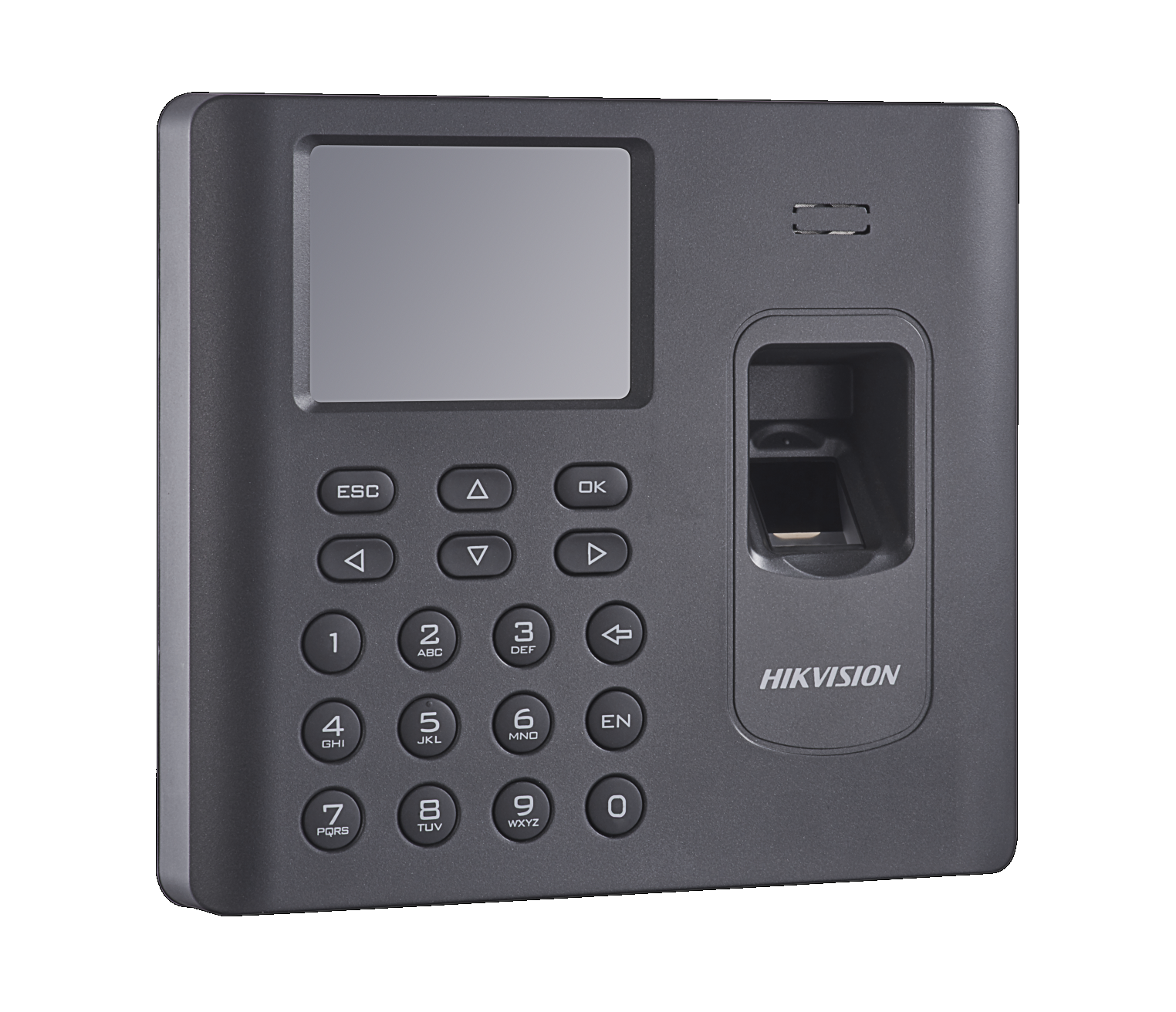

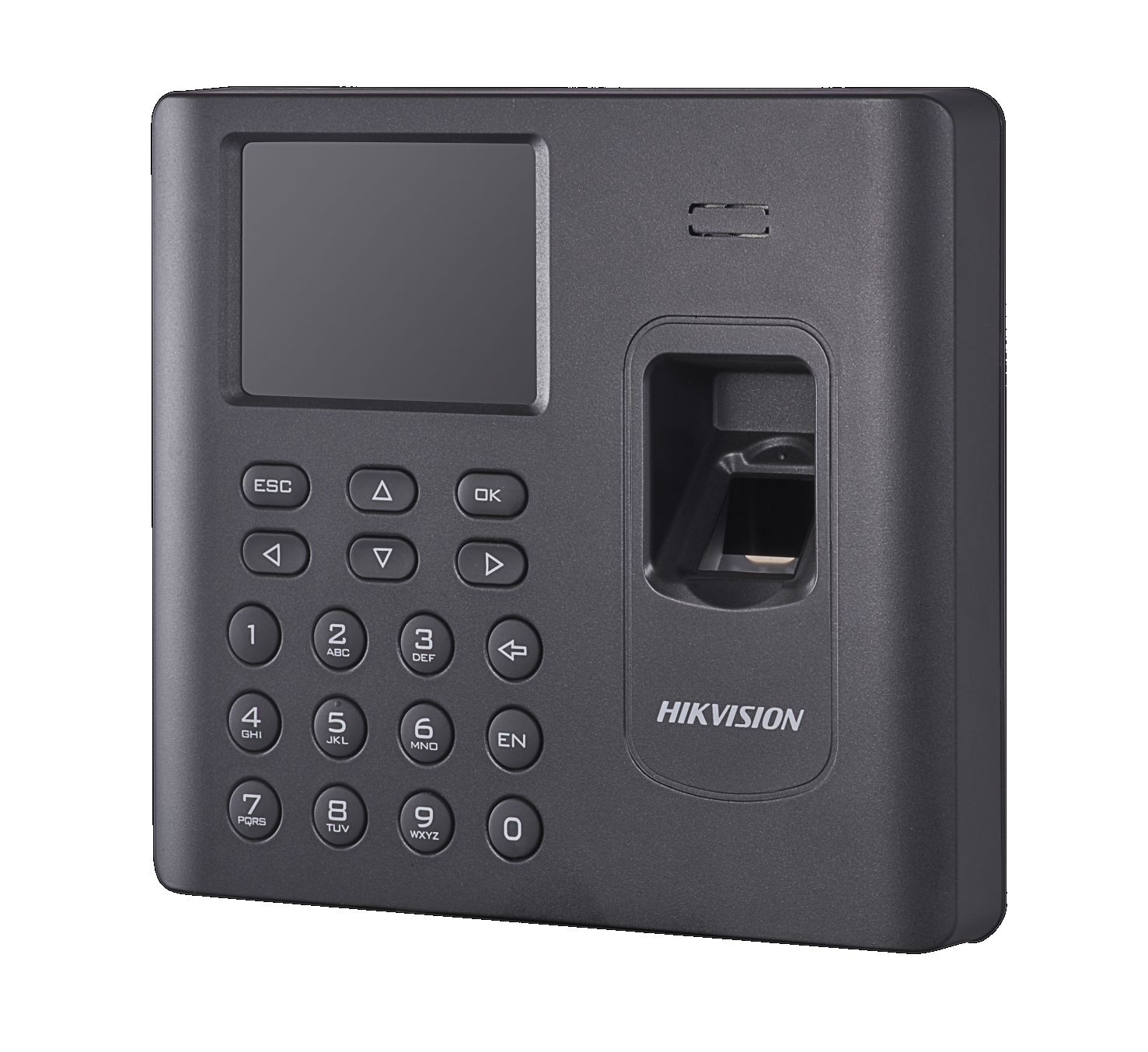

Fingerprint Time Attendance Terminal

AVAILABLE MODELS

DS-K1A802 Series

MAIN FEATURES

Spec of DS-K1A802 Fingerprint Access Control Terminal www.hikvision.com

2



Model
Parameters
DS-K1A802F-1 DS-K1A802MF-1 DS-K1A802EF-1
Storage
Up to 800 Valid Cards;
Up to 50,000 Event Records;
Up to 150,000 Attendance Records
(Swiping Card is Not Available for DS-K1A802F-1)
Operation System Linux
iVMS-4200 Support
Fingerprint Capacity Up to 800 Fingerprints; Up to 10 Fingerprints for Each Person
Card Reading Response
Duration
< 1 s
Fingerprint
Authentication Duration
< 1 s
Fingerprint Comparing
Mode
1:1 and 1:N, N=3000
FAR (False Accept Rate) ≤0.001%
FRR (False Rejection
Rate)
≤0.01%
Fingerprint Recognizer Optical Fingerprint Recognizer Module
Card Reading Mode
Swiping Card is Not
Available;
Supports Mifare Card,
Including Cards with
Special Shapes; Supports
Reading Card in Metal
Environment
Supports EM Card,
Including Cards with
Special Shapes;
Supports Reading Card
in Metal Environment
Card Reading Distance 0 to 5cm
Lithium Battery Not Support
Transmission Rate LAN: 10/100 Mbps Self-adaptive
Wi-Fi Not Support
USB Interface USB2.0, Type A
LCD Screen 2.8-inch 320 x 240 LCD-TFT Display Screen
Key Board Physical Keys (No Back Light)
Audio 1 Buzzer, 1 Loudspeaker
Power Supply 12 VDC/1 A
Working Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity 10% to 90% (No Condensing)
Application Situation Indoor
Appearance Color Black (Included), Gold (Optional), Silver (Optional), White (Optional)
Dimension (L x W x H) 140 mm x 155 mm x 30 mm (5.51" x 6.01" x 1.18")
Installation Surface Mounting, Metal Door Mounting, Desk Stand

SPECIFICATIONS

Spec of DS-K1A802 Fingerprint Access Control Terminal www.hikvision.com

3




Black Gold Silver White



Appearance
