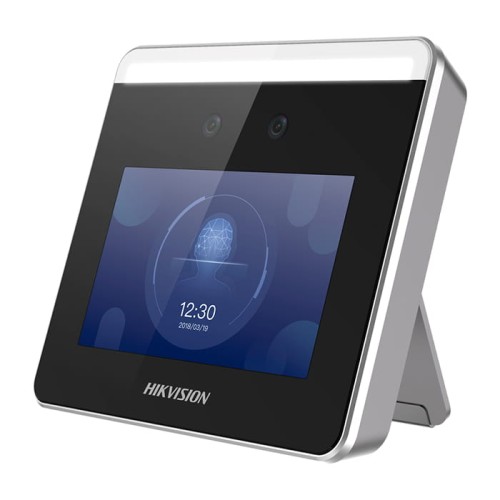

DS-K1T331 Series
Face Recognition Terminal

DS-K1T331 series face recognition terminal adopts deep
learning algorithm, which helps to recognize the face faster
with higher accuracy. It also supports multiple
authentication modes: face authentication, etc. When
installed on the turnstile, it can be applied in multiple
scenarios, such as buildings, enterprises, financial industries,
and other important areas.

Available Model
• DS-K1T331
• DS-K1T331W
Features
• 3.97-inch touch screen
• 2 MP wide-angle dual-lens
• Face anti-spoofing
• Face recognition distance: 0.3 m to 1.5 m
• Deep learning algorithm
• 300 face capacity, 1,500 card capacity (when connecting external card reader); 150,000 event capacity, and up to 20,000
captured pictures storage
• Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
• Capture linkage and captured pictures storage
• Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software
• Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
• Stand-alone operation
• Manage, search and set device data after logging in the device locally
• Connects to one external card reader via RS-485 protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed


• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
• Supports multiple languages: English, Spanish, and Arabic

*
Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security
level, use multiple authentication modes

Specifications

ModelDS-K1T331DS-K1T331W
Operating systemLinux
Screen3.97-inch touch screen
Card capacity (when connecting
external card reader)
1,500

Event capacity150,000
Face capacity300
Face recognition distance0.3 m to 1.5 m
Face recognition duration＜ 0.2 s
Network interface10/100 Mbps, self-adaptive
Camera2 MP dual-lens camera with wide dynamic range
CommunicationTCP/IPTCP/IP, Wi-Fi
InterfaceUSB x 1, electric lock x 1, door contact x 1, tamper x 1, exit button x 1, RS-485 x 1
Power supply12 V, 1.5 A, 18 W
Working humidity10 to 90% (no condensing)
Working temperature-10 °C to +50 °C (14 °F to +122 °F)
Application environmentIndoor use
Dimension (W x H x D)120 mm x 110 mm x 23 mm (4.7" x 4.3" x 0.9")
*
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden
(ignorance can cause fire danger).


Dimensions
