DS-K1T801M

1          DS-K1T801E (EM Card Only)  DS-K1T801M (M1 Card Only)                   32-bit processor   Stand-alone operation management settings   Max. 3000 card number settings   Supports authentication method of card and card & password   Opens door via card password if the authentication method is card   Adds up to 3000 card passwords   Supports exit button   Supports ID card, and ID card number reading (DS-K1T801E)   Supports Mifare card, Mifare card number reading (DS-K1T801M)   Watchdog design   Data can be permanently saved after power-off        Access Control Terminal    MAIN FEATURES    DS-K1T801 Series    AVAILABLE MODELS      Spec of DS-K1T801 Series Access Control Terminal www.hikvision.com  2           Model  Parameters  DS-K1T801E DS-K1T801M  Processor 32bit  Storage Storage for 3000 Legal Card Information  Card type EM Card Mifare Card  Input interface Exit Button x 1, Door Sensor x 1  Output interface Doorbell x 1, E-lock Output x 1  Key board 13 Keys (0-9, , *, #, Doorbell)  LED ...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

1




DS-K1T801E (EM Card Only)
DS-K1T801M (M1 Card Only)








 32-bit processor
 Stand-alone operation management settings
 Max. 3000 card number settings
 Supports authentication method of card and card & password
 Opens door via card password if the authentication method is card
 Adds up to 3000 card passwords
 Supports exit button
 Supports ID card, and ID card number reading (DS-K1T801E)
 Supports Mifare card, Mifare card number reading (DS-K1T801M)
 Watchdog design
 Data can be permanently saved after power-off

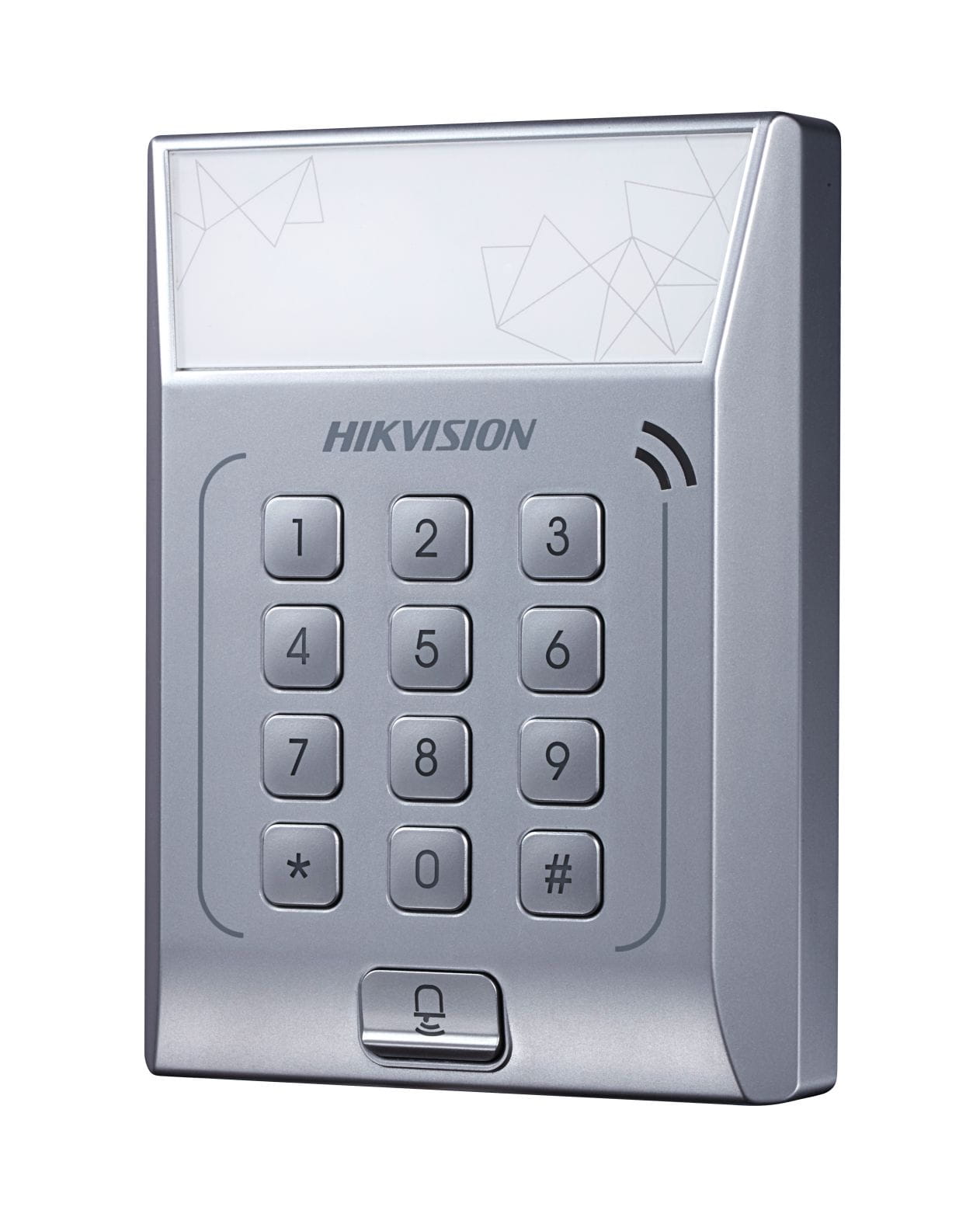

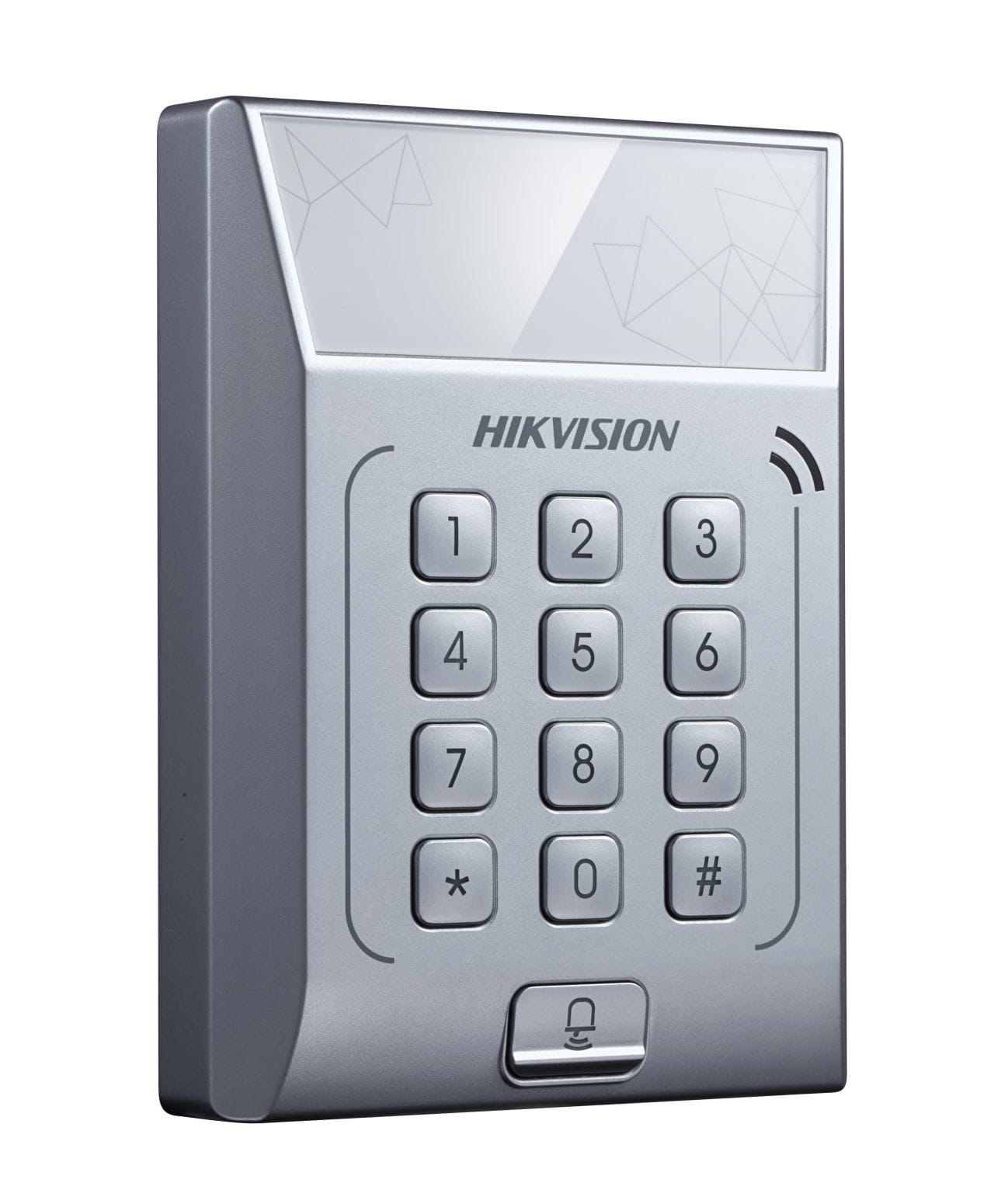

Access Control Terminal

MAIN FEATURES

DS-K1T801 Series

AVAILABLE MODELS


Spec of DS-K1T801 Series Access Control Terminal www.hikvision.com
2




Model
Parameters
DS-K1T801E DS-K1T801M
Processor 32bit
Storage Storage for 3000 Legal Card Information
Card type EM Card Mifare Card
Input interface Exit Button x 1, Door Sensor x 1
Output interface Doorbell x 1, E-lock Output x 1
Key board 13 Keys (0-9, , *, #, Doorbell)
LED Indicator Power/Status
Voice prompt Beeper
Working voltage 12V DC
Working current 0.17A (without Load)
Working Temperature -20°C to 65°C (-4° F to 149° F)
Working Humidity 10% to 90% (No Condensing)
Dimension 126.5(L)mm x 94.5(W)mm x 24(H)mm (4.98" x 3.72" x 0.94")


SPECIFICATIONS
