DS-K2M060

1      DS-K2M060 Secure Door Control Unit is the  interlayer between the access control terminal  and the lock, including the door magnetic, the  lock, the exit button and so on. It can be applied  to keep the door closed when the door is  damaged.              DS-K2M060         Communicates with the access control terminal via RS-485 to execute the commands from the  terminal including open door, close door, normally open and normally closed   Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send  them to the access control terminal   Supports tampering Alarm   Supports RS-485 communication indicators to show the communication status   4-ch DIP switch supporting ID NO. configuration   Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control  terminal by swiping card                      Secure Door Control Unit    MAIN FEATURES    DS-K2M060    AVAILABLE MODELS      Spec of DS-K2M060 Series Secure Door Control Unit www.hikvision.com  2  ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-K2M061

Ersatzproduktcode: 302917740

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

1

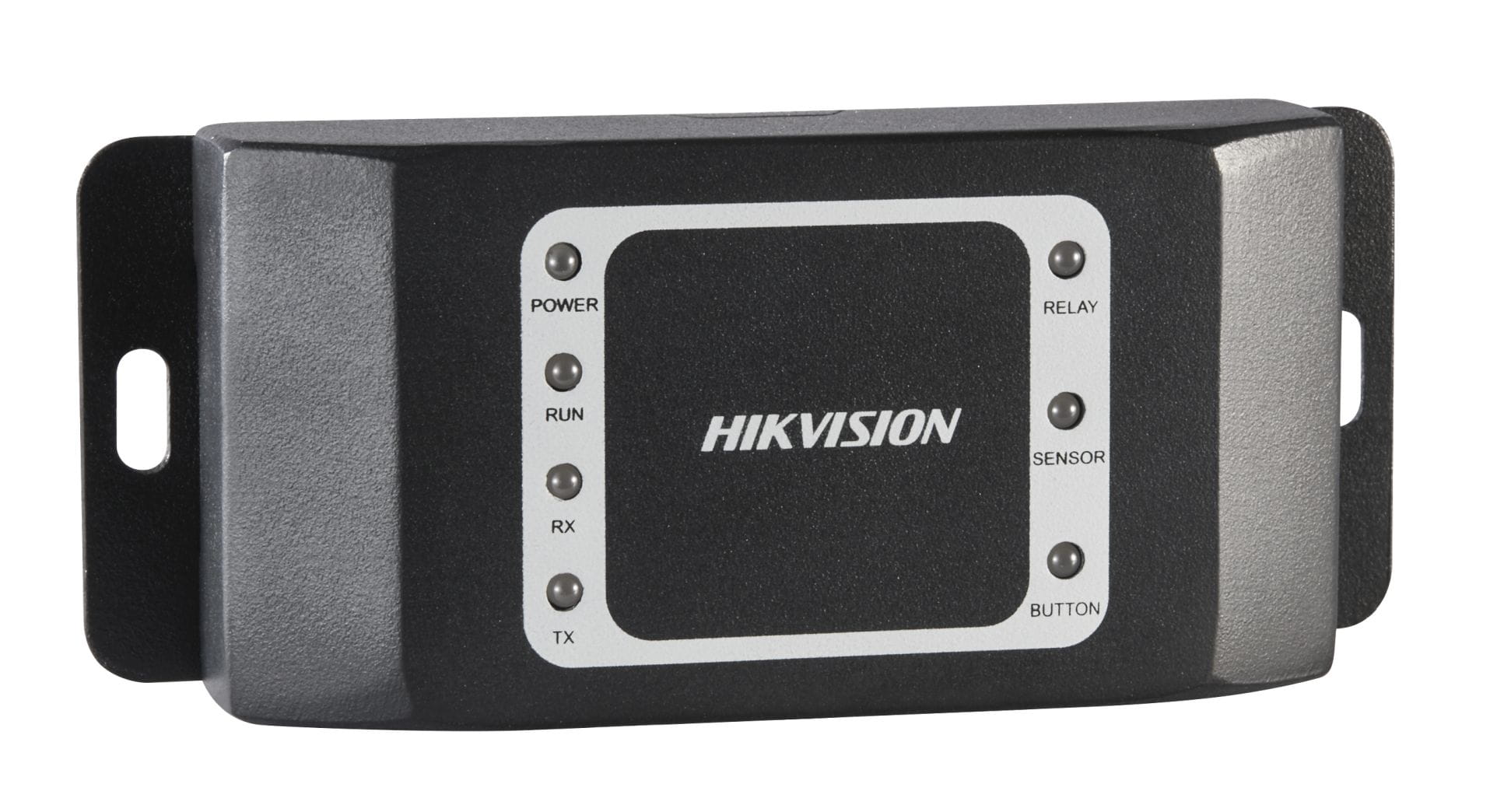

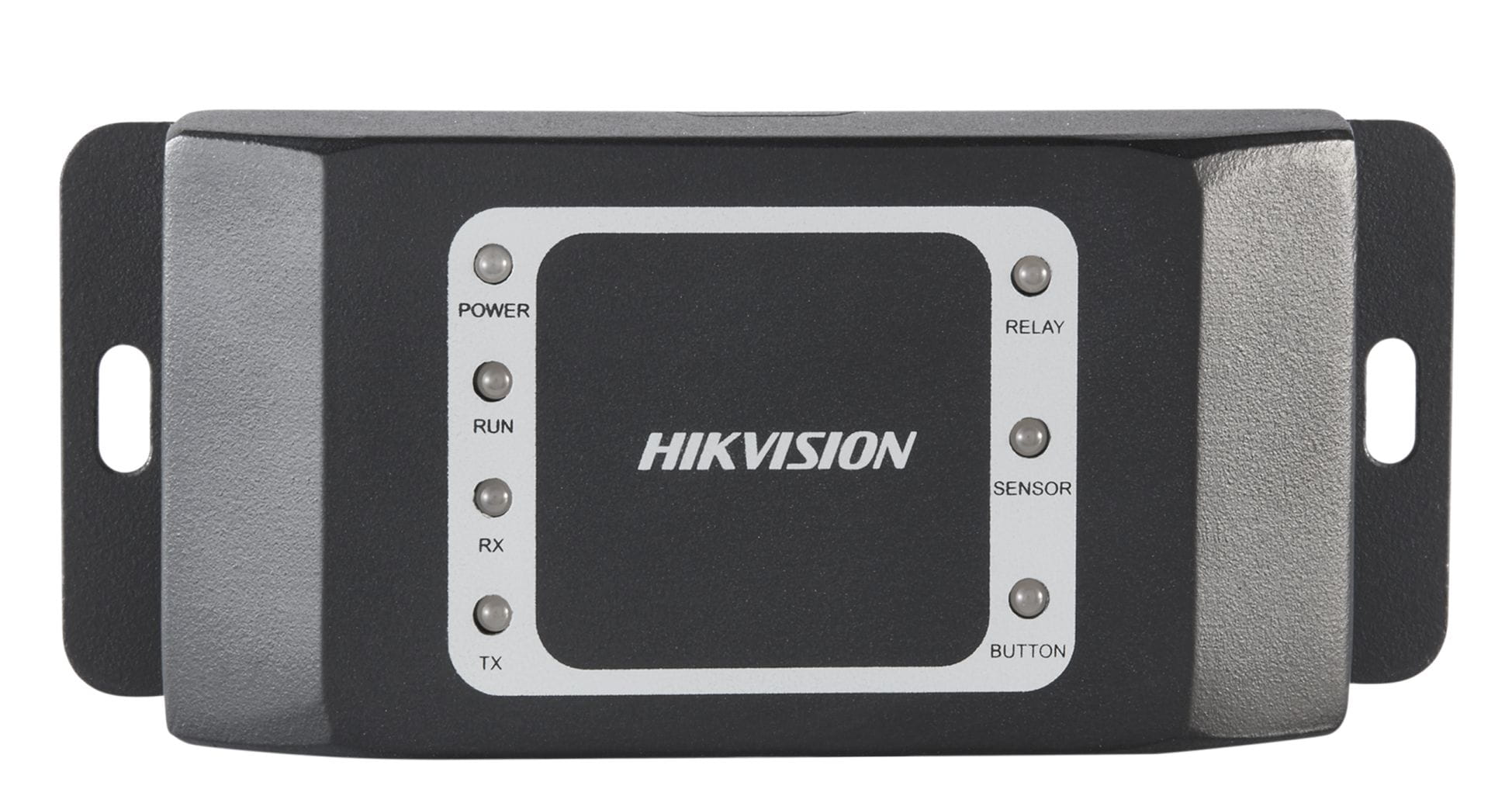

DS-K2M060 Secure Door Control Unit is the
interlayer between the access control terminal
and the lock, including the door magnetic, the
lock, the exit button and so on. It can be applied
to keep the door closed when the door is
damaged.






DS-K2M060



 Communicates with the access control terminal via RS-485 to execute the commands from the
terminal including open door, close door, normally open and normally closed
 Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send
them to the access control terminal
 Supports tampering Alarm
 Supports RS-485 communication indicators to show the communication status
 4-ch DIP switch supporting ID NO. configuration
 Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control
terminal by swiping card










Secure Door Control Unit

MAIN FEATURES

DS-K2M060

AVAILABLE MODELS


Spec of DS-K2M060 Series Secure Door Control Unit www.hikvision.com
2




RS-485
Access Control Terminal

Electric Lock
Exit Button
Secure Door Control Unit
Wiegand
Wiegand Card Reader







Model DS-K2M060
Communication Interface RS-485
Input / Output Interface
Exit Button*1, Lock*1, Door Magnetic*1, Alarm Out*1 and
Wiegand*1
Indicator
7 Indicators (RS-485 Communication Status*2, Power Supply*1,
Exit Button*1, Lock Status*1, Door Magnetic*1 and Running
Status*1)
Power Supply DC 12V
Working Temperature -30°C to +55°C (-22°F to 131°F)
Working Humidity 10% to 90% (Non Condensing)
Dimensions 48x115x25mm (1.89x4.53x0.98inch)
Installing Method Wall Mounting


SPECIFICATION

TYPICAL APPLICATOIN
