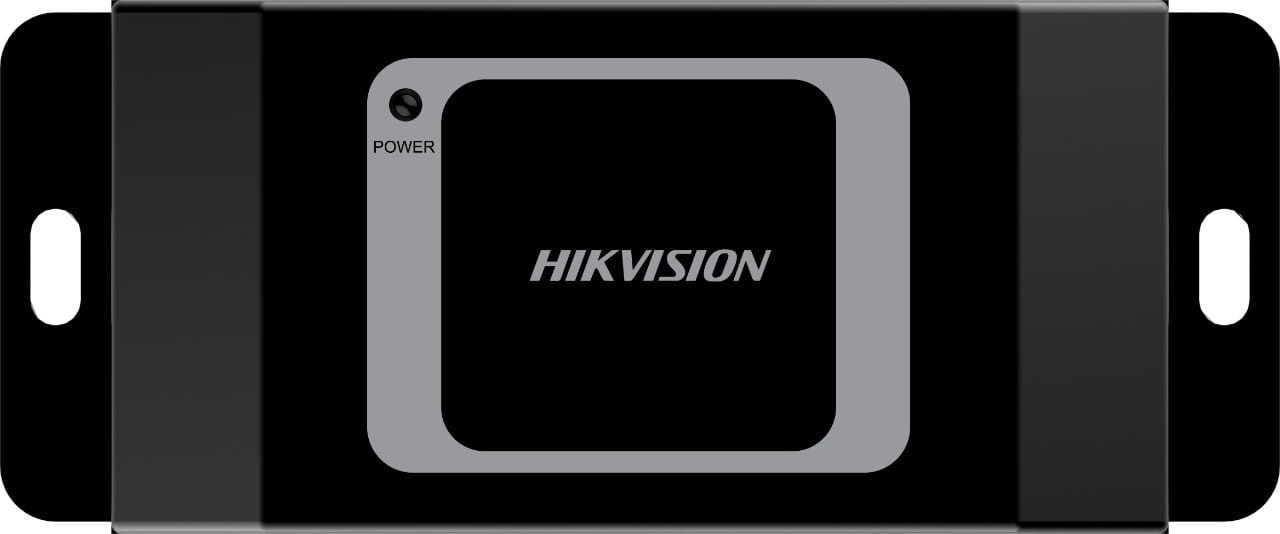

DS-K2M061
Secure Door Control Unit







DS-K2M061 Secure Door Control Unit is the interlayer
between the access control terminal and the lock, including
the door magnetic, the lock, the exit button and so on. It can
be applied to keep the door closed when the door is
damaged

 Communicates with the access control terminal via RS-485
to execute the commands from the terminal including
open door, close door, normally open and normally closed
 Collects the door magnetic signal, the exit button signal
and the tamper-proof signal and send them to the access
control terminal
 Supports tampering alarm
 Supports RS-485 communication indicators to show the
communication status
 4-ch DIP switch supporting ID No. configuration
 Supports a Wiegand interface to connect a Wiegand card
reader to enter/exist access control terminal by swiping
card
 Fire interface and exit button linkage






 Specification
Interface
Lock control 1
Exit button 1
Door contact input 1
Alarm input 2
Alarm output 1
RS-485 1
Wiegand 1
General
Indicator 1 for power supply
Power supply 12 VDC
Working temperature -40 °C to 70 °C
Working humidity 0% to 90%
Dimensions 48 mm x 115 mm x 26 mm (1.9" x 4.5" x 1.0")
Installation Wall Mounting



 Typical Application
RS-485
Access Control Terminal

Electric Lock
Exit Button
Secure Door Control Unit
Wiegand
Wiegand Card Reader




 Available Model
DS-K2M061



 Dimension
