DS-K4G100

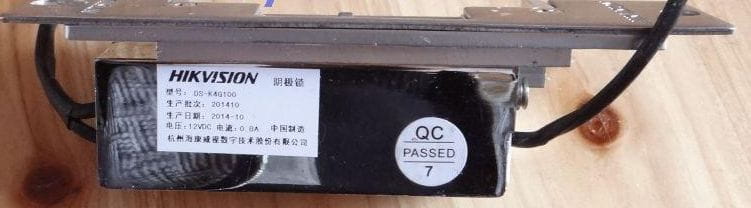

DS-K4G100  Electric Strike Lock    The electric strike lock is designed for wooden door, metal  door, and PVC door. It can work depending on the thrust or  pull producing by the electromagnetism.    Available Model  DS-K4G100  Key Feature  • Fail-secure and fail-safe selectable  • Material of latch: US304 stainless steel  Material of plate: wire-drawing on the surface  • The magnetic lock supports static linear thrust of 800 kg (1764 lb)  • 100,000 times usage of the electromagnetic coil when powering on  • Depth of the latch groove: 15 mm  • Strong suction which protects the door from forced opening when the door is locked  • Double insulation      Specifications    ModelDS-K4G100  Dimension of lock body (L x W x H)165 mm x 43.7 mm x 35 mm (6.5" x 1.7" x 1.4")  Material of latchStainless steel  Maximum thrust800 kg (1764 lb)  Input voltage12 VDC, 320 mA/24 VDC, 160 mA ± 15%    Signal Output  Dry contact signal output; NO output while locking and NC output while  unlocking    Suitable doorWooden door, metal door, PVC door  Working temperature-10 °C to 55 °C (14 °F to 131 °F)  Working humidity0 to 95% (non-condensing)  Weight0.4 kg (0.9 lb)    Dimension    Circuit B...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-K4G100
Electric Strike Lock

The electric strike lock is designed for wooden door, metal
door, and PVC door. It can work depending on the thrust or
pull producing by the electromagnetism.

Available Model
DS-K4G100
Key Feature
• Fail-secure and fail-safe selectable
• Material of latch: US304 stainless steel
Material of plate: wire-drawing on the surface
• The magnetic lock supports static linear thrust of 800 kg (1764 lb)
• 100,000 times usage of the electromagnetic coil when powering on
• Depth of the latch groove: 15 mm
• Strong suction which protects the door from forced opening when the door is locked
• Double insulation


Specifications

ModelDS-K4G100
Dimension of lock body (L x W x H)165 mm x 43.7 mm x 35 mm (6.5" x 1.7" x 1.4")
Material of latchStainless steel
Maximum thrust800 kg (1764 lb)
Input voltage12 VDC, 320 mA/24 VDC, 160 mA ± 15%

Signal Output
Dry contact signal output; NO output while locking and NC output while
unlocking

Suitable doorWooden door, metal door, PVC door
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95% (non-condensing)
Weight0.4 kg (0.9 lb)

Dimension

Circuit Board Diagram


Installation
